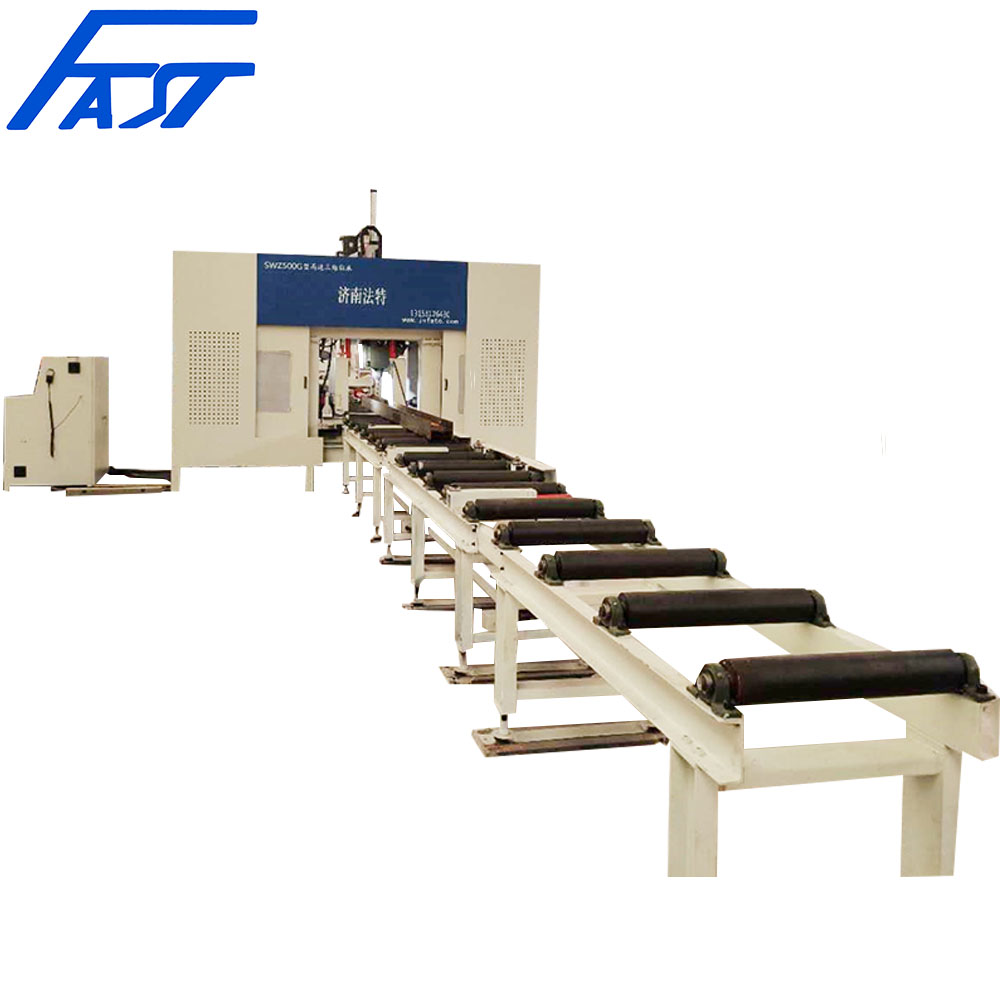

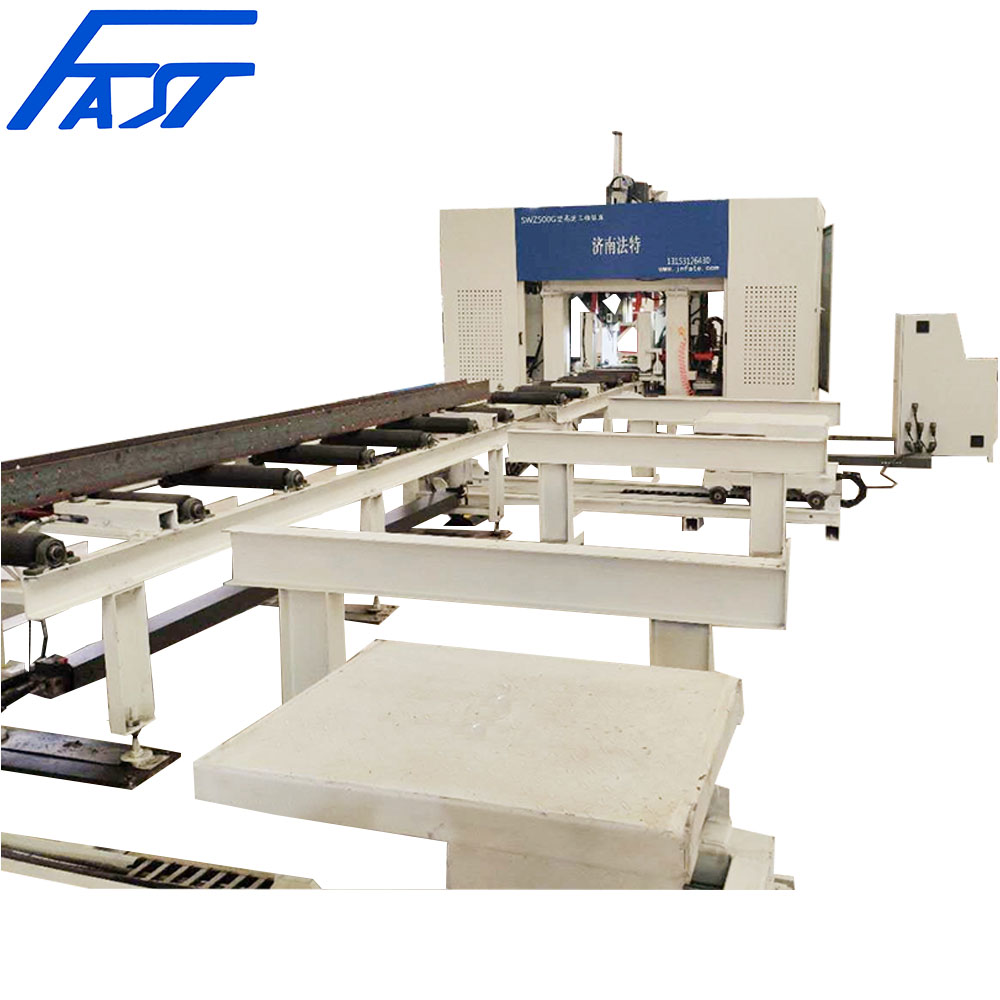

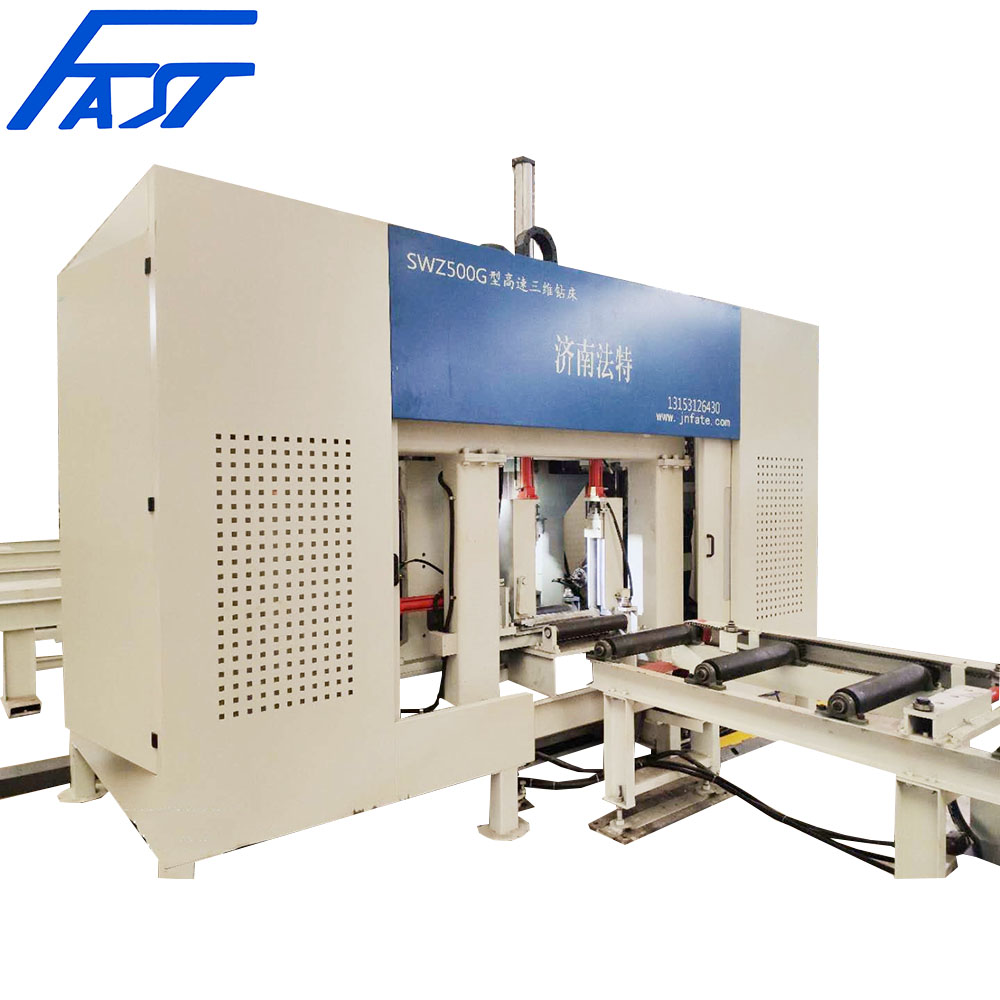

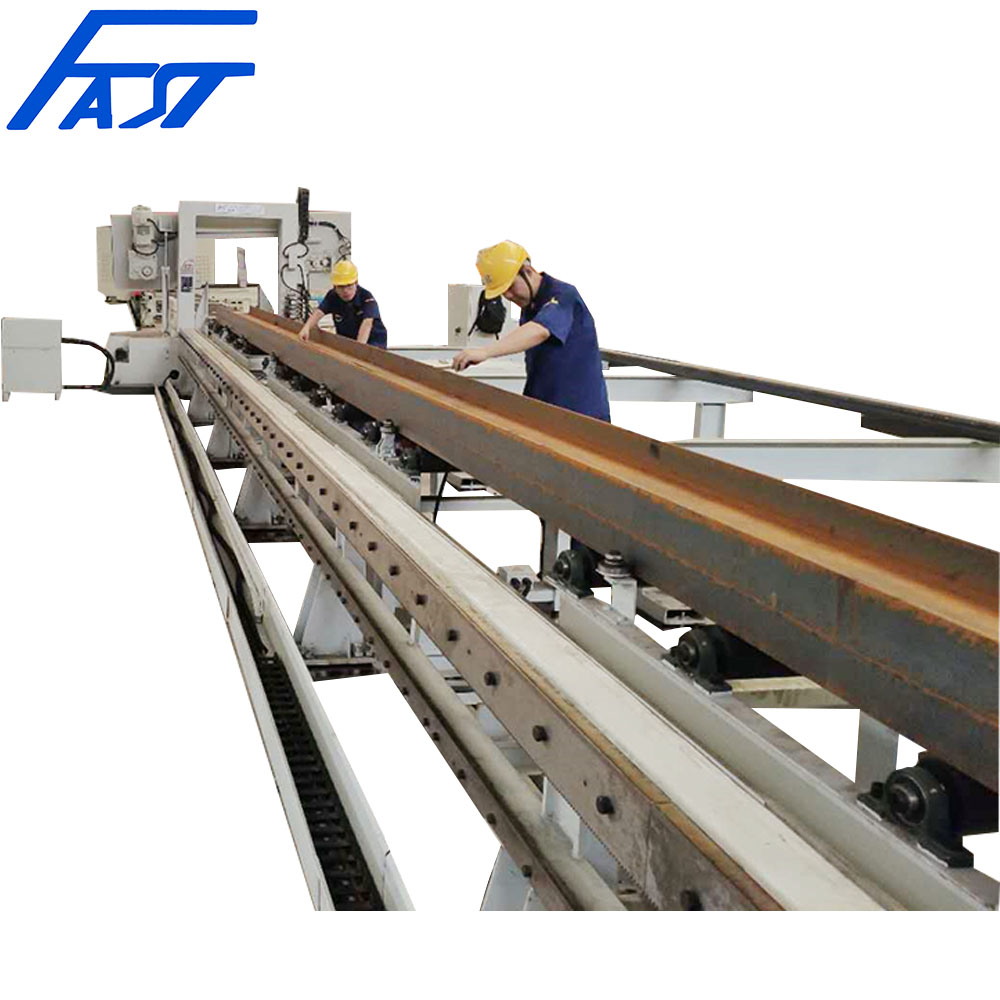

Jinan FAST High-Speed CNC H Beams Drilling Machine Used For Steel Constructure
1. APPLICATION

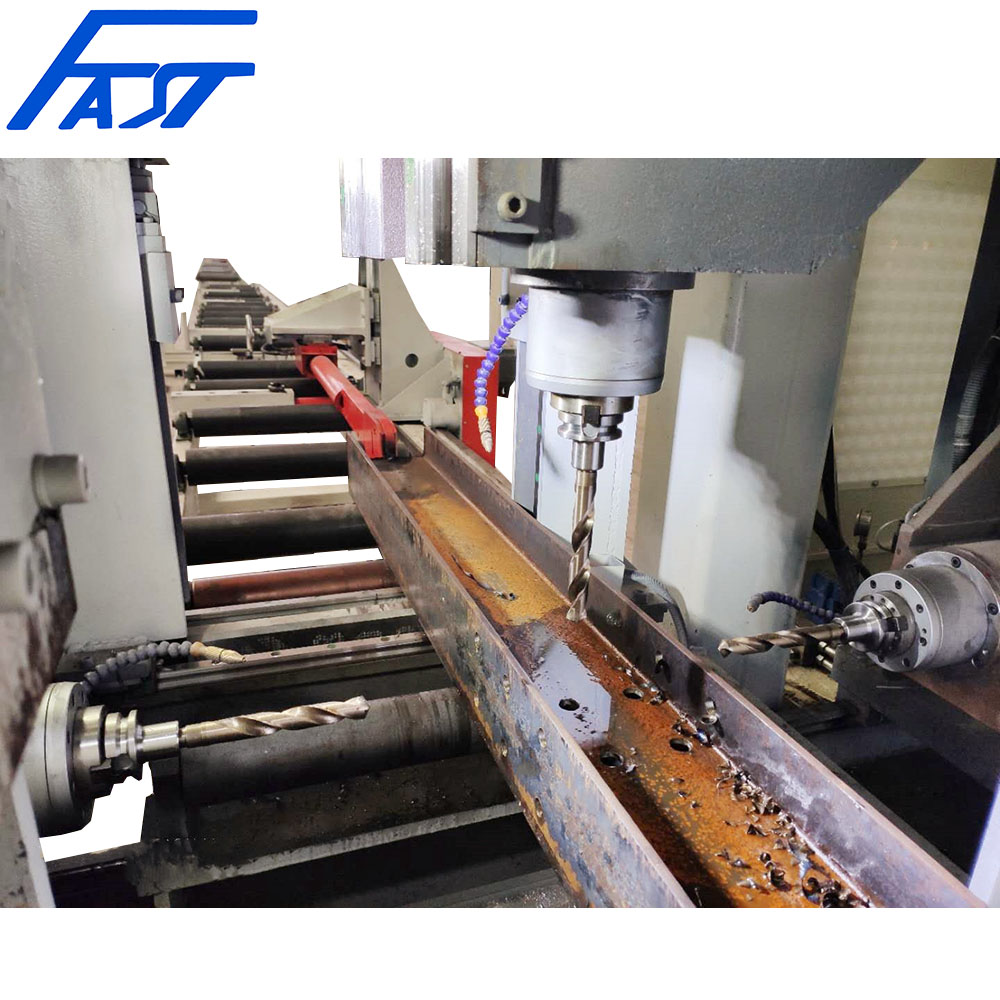

This machine is mainly used for drilling H-beam, channel steel and box beam, and is widely used in steel fabrication buildings, bridges, three-dimensional garages and other industries. The 7-axis CNC section steel 3D drilling machine adopts seven servo motors to realize drilling positioning in two vertical directions, one horizontal direction and one longitudinal direction and servo feeding of three spindles. There are 3 drilling surfaces, each with 1 drilling spindle, and 1 drilling spindle on each surface is driven by a frequency conversion motor. The drilling spindle is a servo feeding drilling spindle. When the hole diameter of the workpiece is 1, the holes on the three sides of the workpiece can be processed after passing through the machine at one time, with high efficiency and high hole position accuracy.
It is an indispensable machine to ensure quality in the steel fabrication manufacturing industry.
2.TECHNICAL DATA
Name | Unit | Specifications | ||
H-beam: Max. height × Max. width (Flange width) | mm | 650×300 | ||
H-beam: Min. height × Min. width (Flange width) | mm | 150×100 | ||
Automatic feed conveyor length | mm | 12000 | ||
Max. workpiece web thickness | mm | ≤25 | ||
Maximum workpiece weight | kg | 2000 | ||
Number of drilling spindles | 個(gè) | 3 | ||
Drilling Diameter Range | mm | φ5-30 | ||
Upper unit spindle technical parameters | Number of upper spindles | KW | 11 | |
Spindle rated torque | Nm | 140 | ||
Spindle speed range | r/min | 0~3000 | ||
Axial feed speed | mm/min | 0~4000 | ||
Spindle feed stroke | mm | 400 | ||
Spindle centerline lateral movement range | mm | 30~600 | ||
Left unit spindle technical parameters (reference side) | Drilling spindle power | KW | 11KW | |
Spindle rated torque | Nm | 140 | ||
Spindle speed range | r/min | 0~3000 | ||
Axial feed speed | mm/min | 0~4000 | ||
Spindle feed stroke | mm | 200 | ||
The moving range of the spindle center line up and down | mm | 20~270 | ||
Right unit spindle technical parameters | Drilling spindle power | KW | 11KW | |
Spindle rated torque | Nm | 140 | ||
Spindle speed range | r/min | 0~3000 | ||
Axial feed speed | mm/min | 0~4000 | ||
Spindle feed stroke | mm | 500 | ||
The moving range of the spindle center line up and down | mm | 20~270 | ||
Spindle taper hole |
BT40 (Pneumatic loosening knife) |
|||
Hole spacing error in hole group | mm | ≤±0.2 | ||
Adjacent hole group hole spacing error | mm | ±0.2 | ||
Bit cooling method | spray cooling, external cooling | |||
Up and down (vertical) stroke of gripping arm | mm | 100(50-150) | ||
Left and right (lateral) stroke of gripper arm | mm | 150(50-300) | ||
Gripper arm movement (forward direction) stroke | mm | 12000 | ||
Rack and pinion drive servo motor power | KW | 5 | ||
Outline dimensions of feeding channel (L× W × H) |
mm | 14000×900×1630 | ||
Feed channel length | mm | 8000 | ||
total power | KW | About 50 | ||
Dimensions of the production line L×W×H | mm | Abou 24000×3500×3120 | ||
Automatic conversion of CAD drawings into machining programs |
FAQ
· Are you a Manufacturer or a Trading company?
Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.
Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc
· Do you have stock product ready to delivery?
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed,when to delivery?
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services?
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality?
Each machine must be carried out quality examination and test when shipping and delivery goods.
