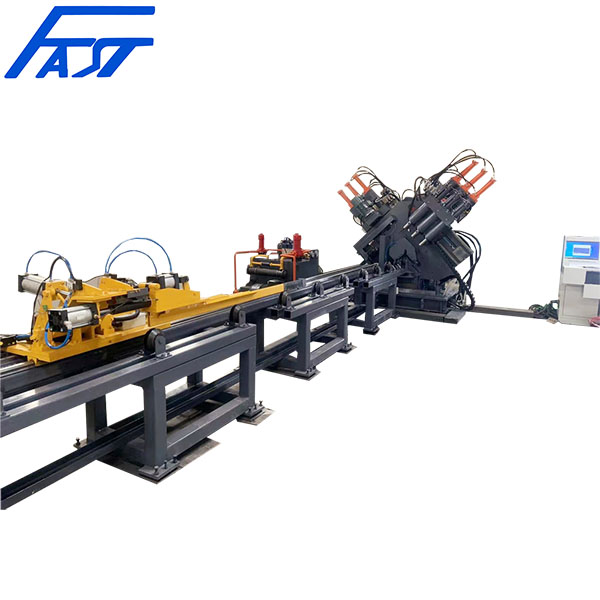

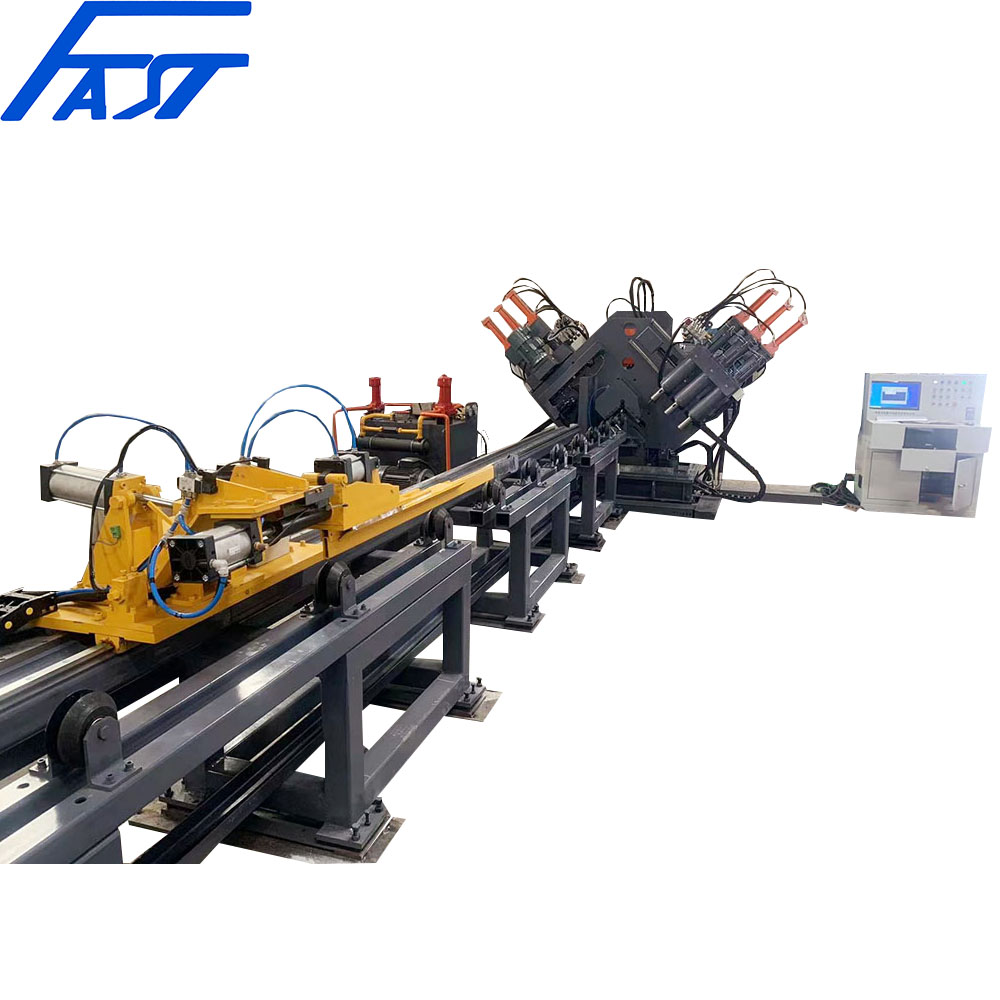

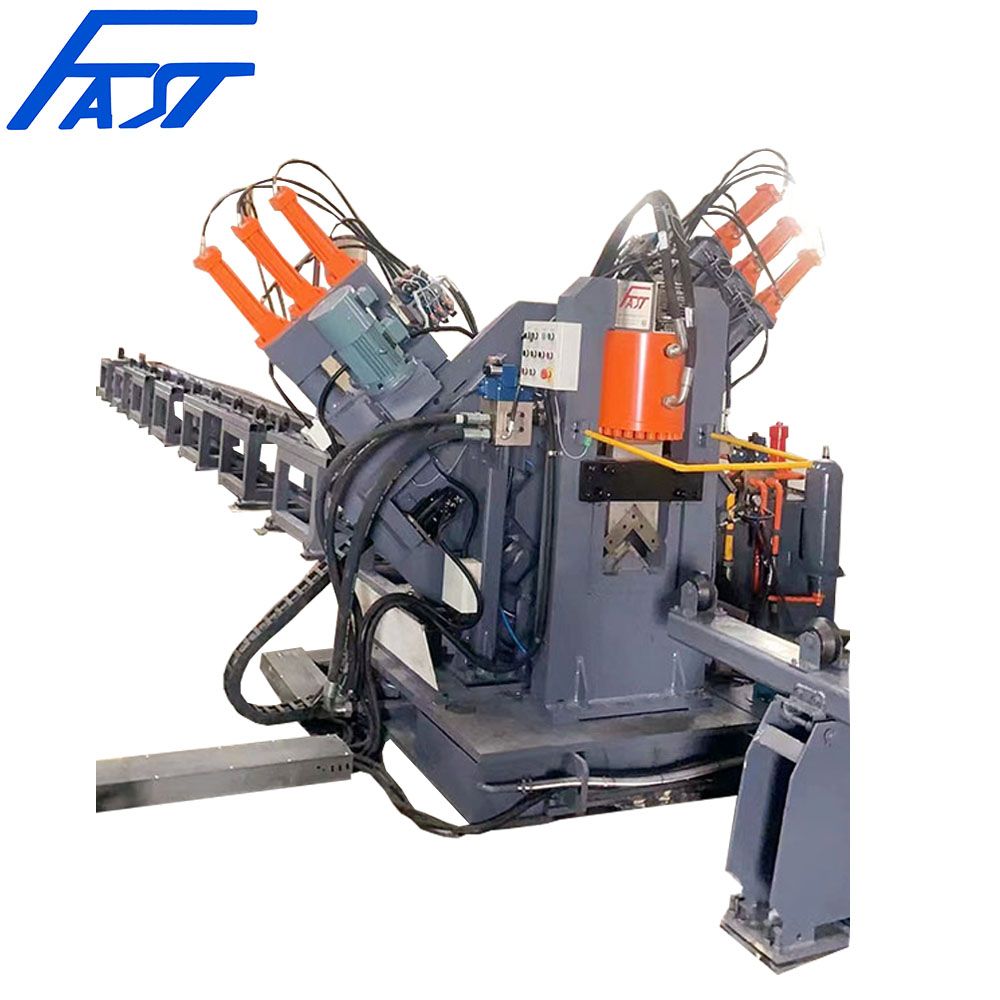

JX2532 Automatic CNC Drilling, Marking And Cutting Systems
APPLICABLE INDUSTRY
This machine is the automatic special production line used for angle steel drilling & marking,mainly in the field of angle steel tower industry.
COMPOSITION
Material platform |
Cross feeding conveyor |
CNC feeding trolley |
CNC conveyor |
CNC marking unit |

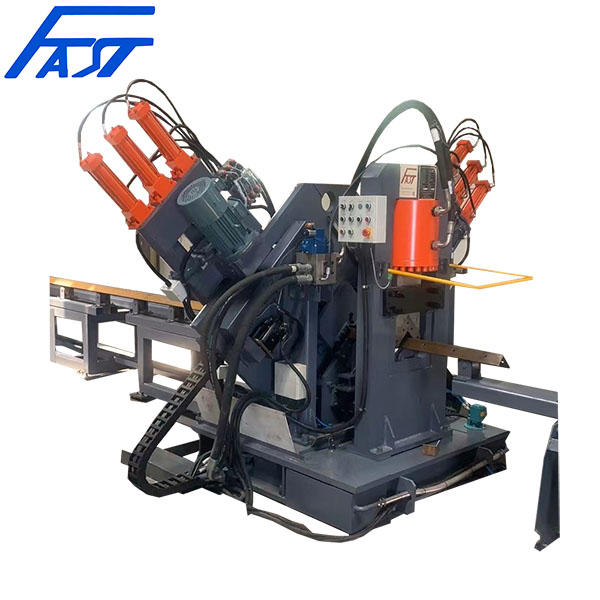

CNC punching unit |
Retainer(supporting material) |
CNC cutting unit |
Outfeeding conveyor |

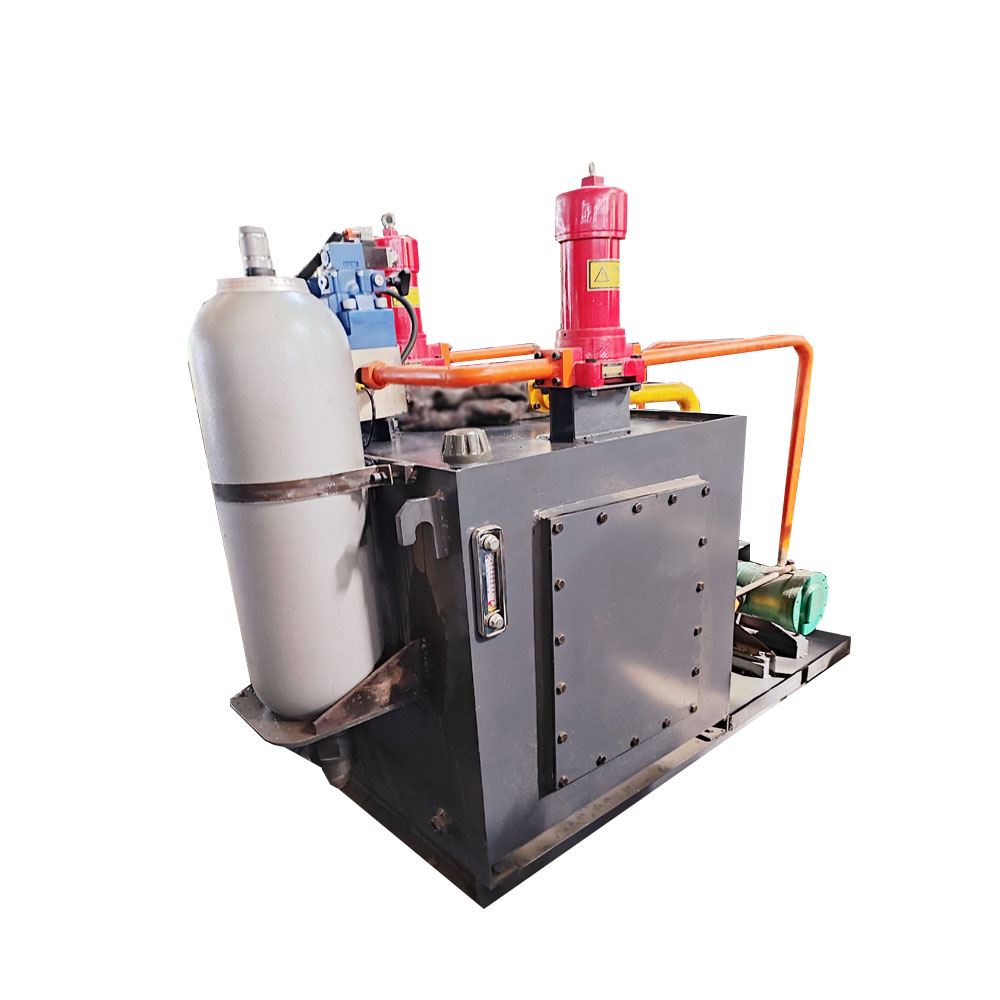

Hydraulic station |

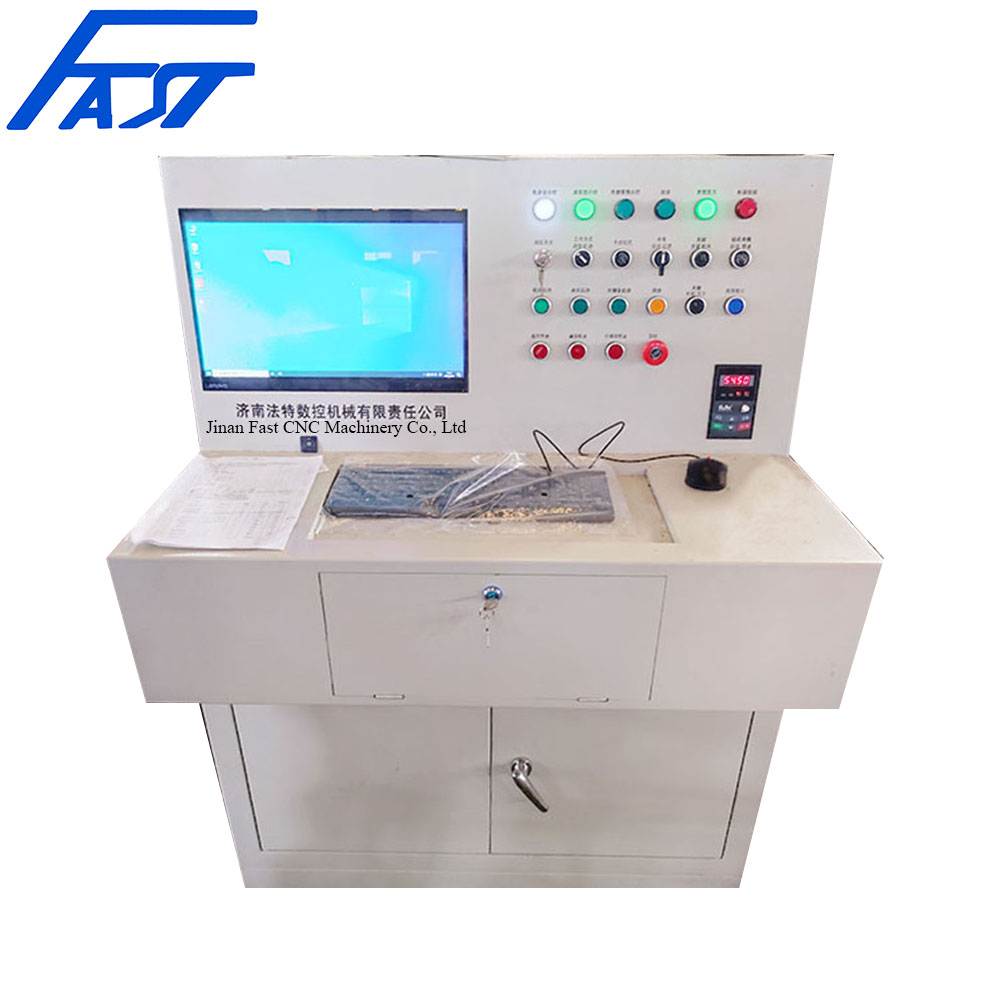

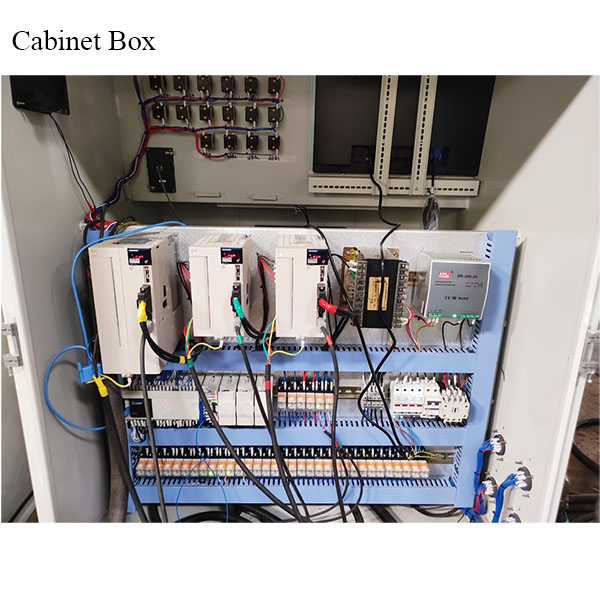

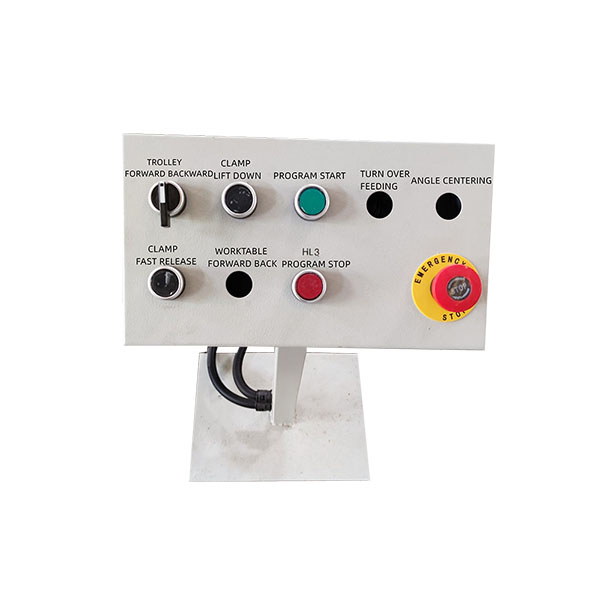

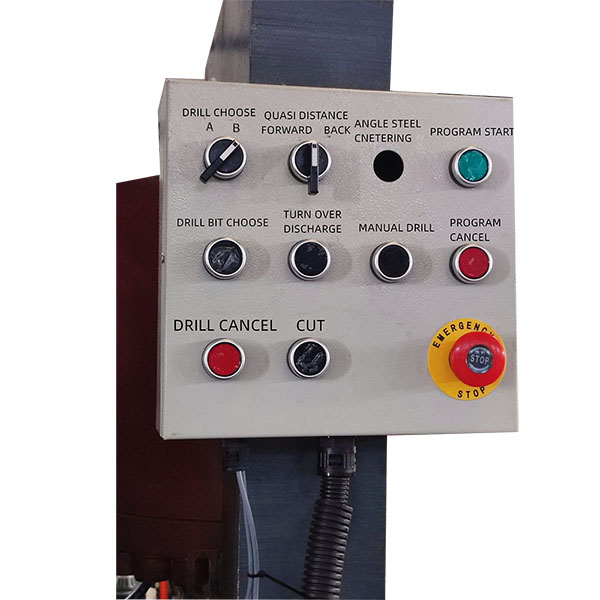

Controlling system |
TECHNICAL DATA
Model |
FJX2325 |
FJX363V
|
Angle Size (mm) |
100*100*8~250*250*32 |
110*110*12~360*360*35 |
Marking Force (kN) |
1000 |
1000 |
Max. Length of blank (m) |
14 |
14 |
Max. Length of finished(m) |
12 |
12 |
Qyt. of Drill On Each Side (Piece) |
3 |
3 |
Qty. of character group |
1 |
1 |
Qty. of Character in Each Character Group (Piece) |
18 |
18 |
Character Size (mm) |
14*10*20 |
14*10*20 |
Back mark (mm) |
20~220 |
20~340 |
Spindle rotation speed (r/min) |
180~760, Transducer stepless adjustment |
180~760, Transducer stepless adjustment |
Max. Feeding speed(m/min ) |
40 |
40 |
Max. Drilling Diameter (mm) |
Φ40 |
Φ40 |
Stroke of spindle (mm) |
240 |
220 |
Qty. Of CNC Axes |
3 |
3 |
Programming Mode |
Lofting software of manual program |
|
Working Accuracy |
Accordance with GB2694-2003 |
|
Overall Dimension (m) |
About 30*7*2.6 |
About 32*6.5*2.3m |
Net Weight (kg) |
17000 |
18800 |
FAQ
· Are you a Manufacturer or a Trading company?
Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.
Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc
· Do you have stock product ready to delivery?
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed,when to delivery?
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services?
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality?
Each machine must be carried out quality examination and test when shipping and delivery goods.
