Category:TUBESHEET/FLANGE DRILL MACHINE
Product specifications:
High-speed drilling machine,Cnc Plate Drilling Milling Machine, CNC drilling machine for steel plate, Automatic CNC plate drilling Tapping machine

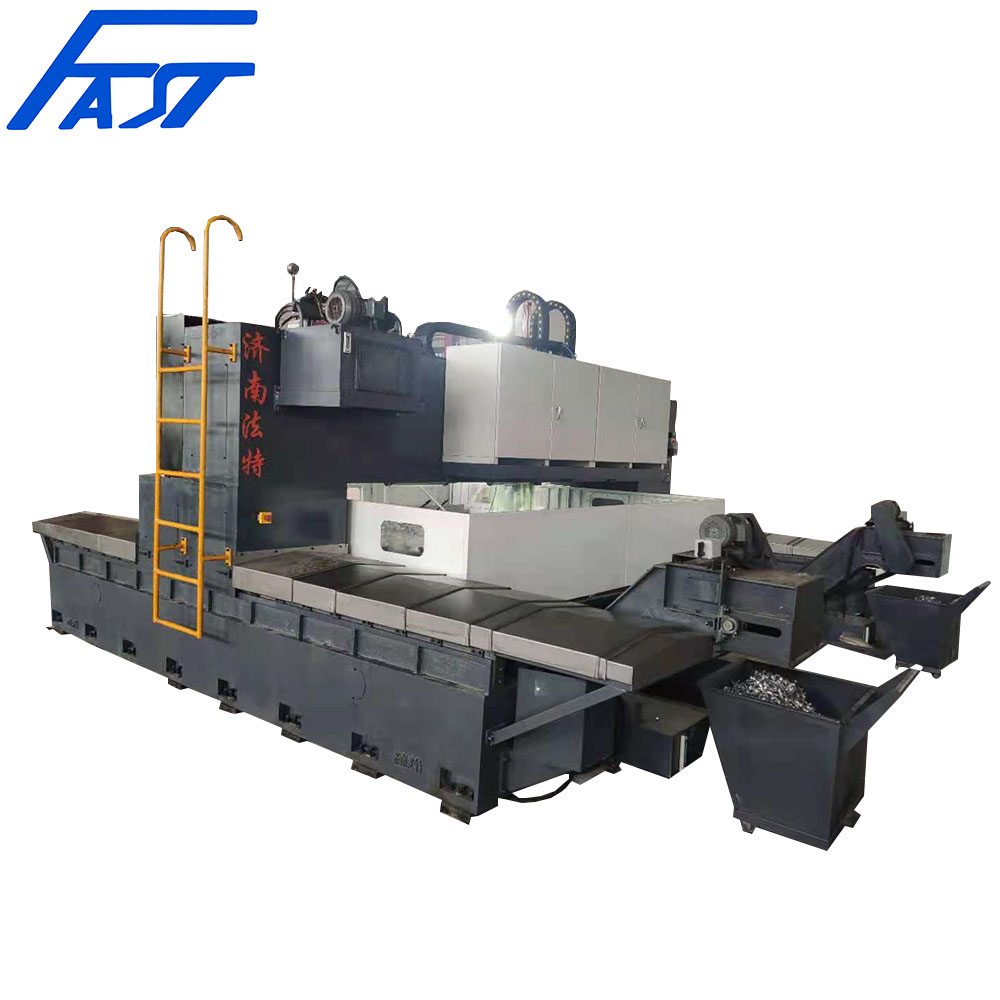

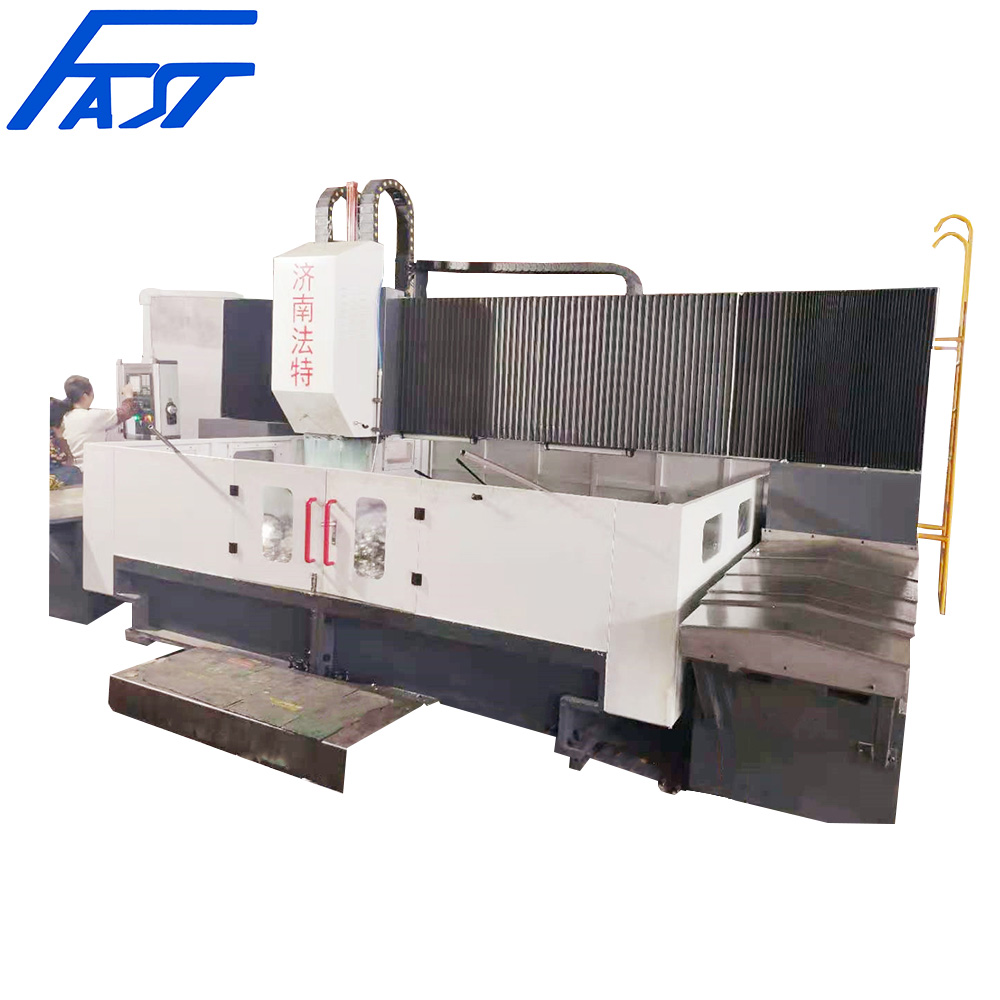

High Speed CNC Drilling Machine For Steel Plates TubeSheet Drilling Machine Milling Tapping Machine
APPLICATION

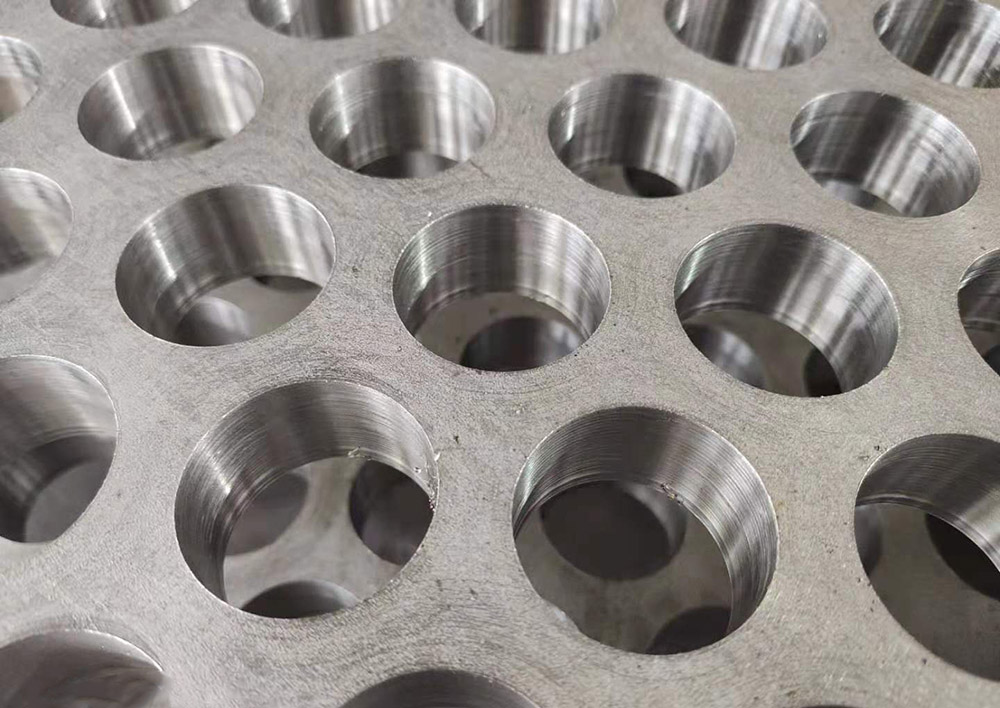

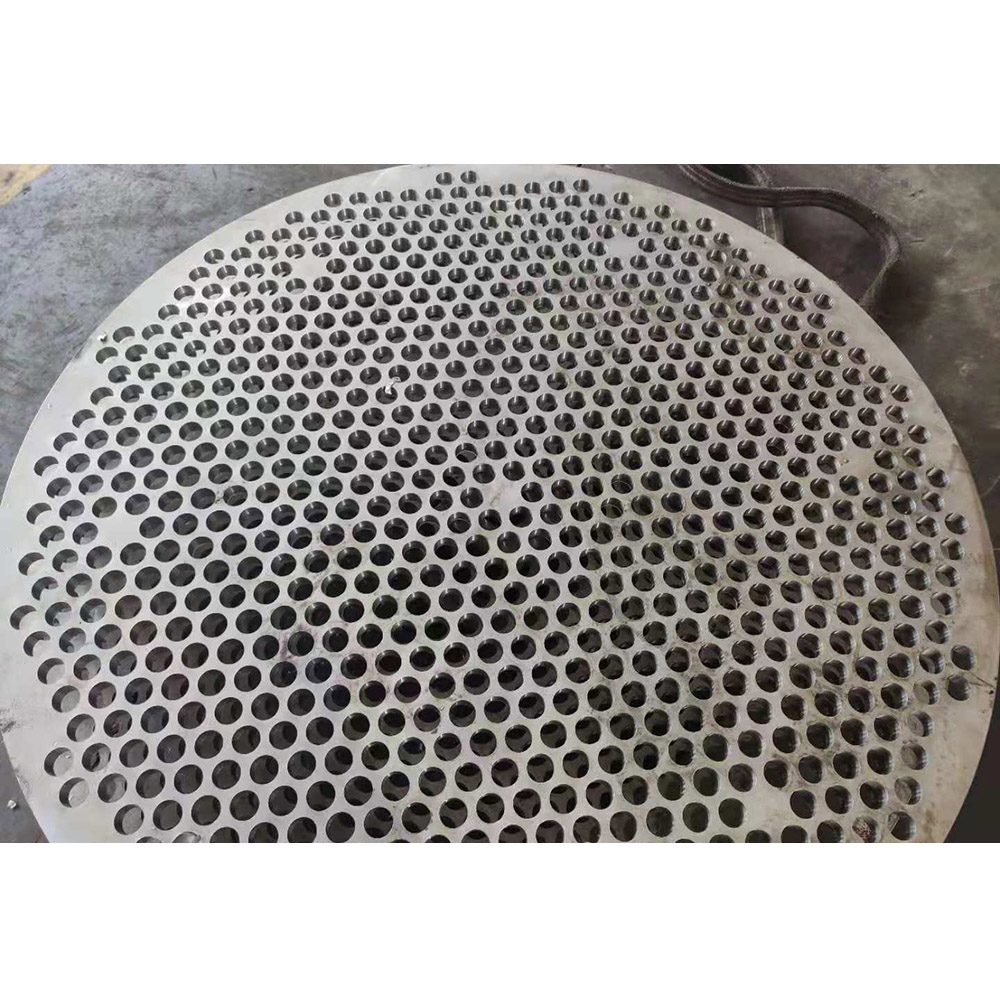

This machine is used for the drilling,tapping and milling for tube plate, clapboard,flange and rings. It is used in petrochemical, boiler, and wind power flange industries,also for joint plates in building, bridge, iron tower, etc. It is suitable for carbon steel or composite materials. Carbide milling cutter or high speed steel twist drill bit are adopted. Digital control can realize automation, high precision, varieties, batch production.
COMPOSITION
Left and right gantry base |
Worktable |
Longitudinal movablegantry |
Transverse movable saddle |
Vertical sliding pillow drilling power head |
Automatic chip removal |
Circulating cooling unit |
Hydraulic system |
TECHNICAL DATA
Model |
PZ2020G |
PZ3030G |
PZ4040G |
PZ5050G |
PZ6060G |
|
Max. Size of Work piece(mm) |
Max.Hole Distance L×W (mm) |
2000*2000 |
3000*3000 |
4000*4000 |
5000*5000 |
6000*6000 |
Max. Thickness (mm) |
250 |
250 |
250 |
250 |
250 |
|
The Distance Between The Lower Part of The Axes and the Work Bench(mm) |
230~730 |
|||||
Milling |
Φ100 Cutter Head, Depth 2mm (Material Q345) |
|||||
Max. Drilling Diameter (mm) |
Φ50 |
Φ50 |
Φ50 |
Φ50 |
Φ60 |
|
Drilling power head Quantity |
1 |
1 OR 2 |
2 |
2 |
2 |
|
Main Axes Taper Hole |
BT50 |
|||||
Rotating Speed of Drilling Spindle (r/min) |
30~2500 |
30~2500 |
30~2500 |
30~2500 |
30~2500 |
|
Motor Power of Drilling Spindle (kW) |
22 |
22 |
22*2 |
22*2 |
22*2 |
|
Longitudinal Movement(X-axis) Max Stroke (mm) |
2000 |
3000 |
4000 |
5000 |
6000 |
|
X-axis Movement Speed (m/min) |
0~8000 |
|||||
Lateral Movement(Y axis) Max. Distance (mm) |
2000 |
3000 |
4000 |
5000 |
6000 |
|
Y-axis Movement Speed (m/min) |
0~8000 |
|||||
Vertical Max. Stroke of Z-axis |
500 |
500 |
500 |
500 |
500 |
|
Feeding Speed of Z axis |
0~4000 |
|||||
Positioning accuracy |
≤0.04 |
|||||
Repeat positioning accuracy |
≤0.03 |
|||||
Number of clip cleaner |
2 |
|||||
Speed of Clip Removal (m/min) |
1 |
|||||
Clip Removal Motor Power(kW) |
20.75 |
|||||
Outline Dimension L*W*H(mm) |
4600*4200*3900 |
5800*5520*3900 |
7600*6540*3900 |
9200*8500*4300 |
9680*9520*6000 |
|
Machine Weight(T) |
24 |
35 |
56 |
70 |
75 |
★ All of these models can be customized according to customer requirements.
