Product specifications:
Beam drill line, Gantry movable CNC drilling &milling machine,H-beam drilling milling process line, Structural steel beam drill line

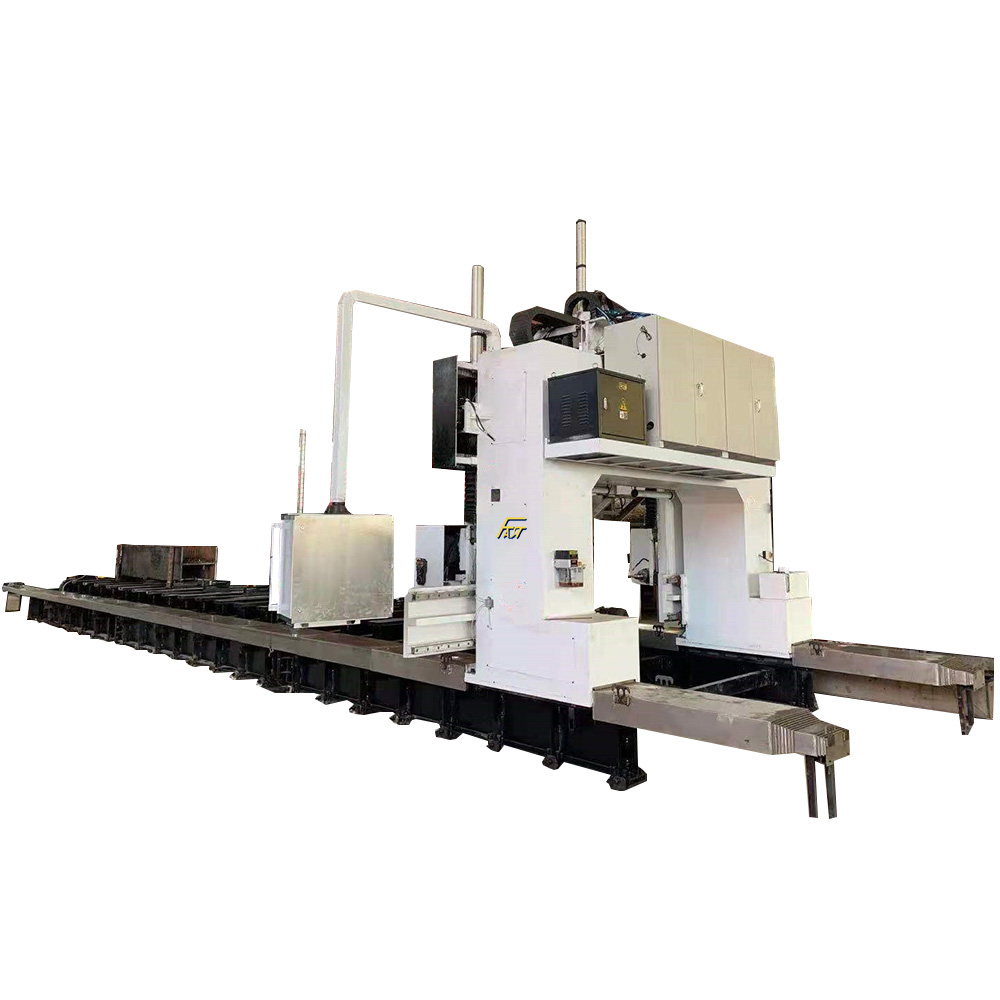

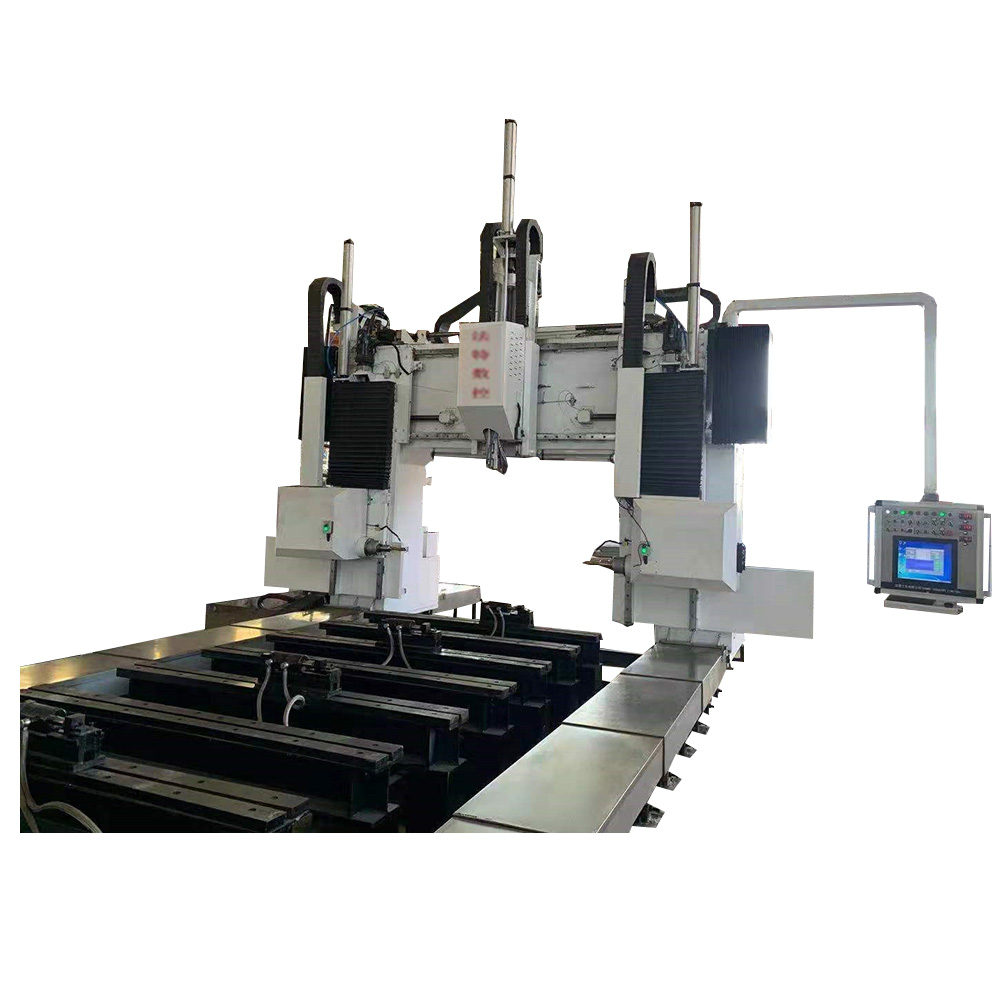

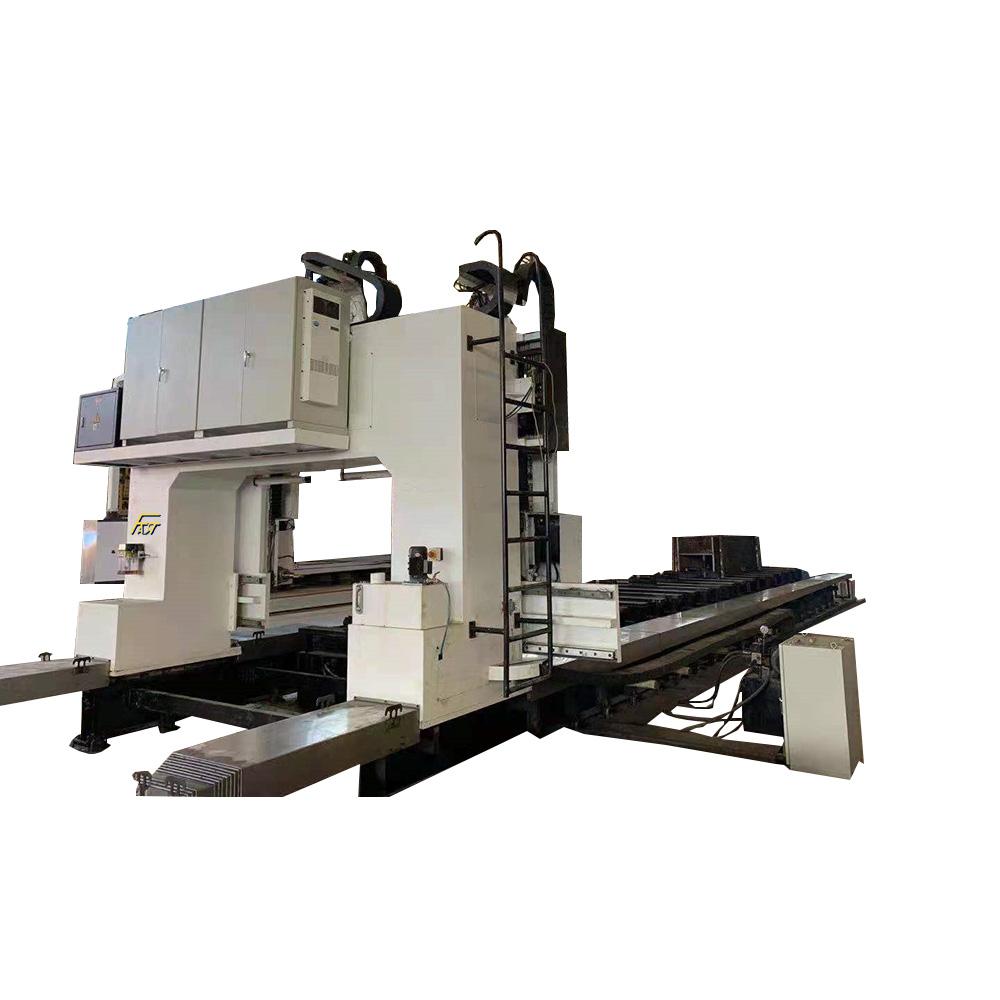

SDM360 x 200 x 10000 Gantry Movable CNC Drilling &Milling Machine
APPLICATION
This machine is mainly used for drilling and milling of groove beam, H-beam and other structural parts. Three sides can be processed simultaneously, and one side can be processed.
If requested, tapping can be added and a knife library is also available.
MODEL EXPLAINATION
SDM---Section Steel Drilling and Milling
360: Width of section steel is 360mm
200:Height of section steel is 200mm
10000: Section steel length 10000mm
TECHNICAL DATA
SPECIFICATION |
UNIT |
PARAMETERS |
|
Worktable |
Effective table size
|
mm |
360×10000 |
Can pass workpiece width
|
mm |
560 |
|
Load capacity
|
t |
10 |
|
Upper power head unit
|
Spindle specification
|
|
BT40 precision high speed spindle |
Tool cooling mode
|
|
Central spray internal cooling + gas-liquid external cooling |
|
Loosing tool method |
|
Pneumatic loosing tool |
|
Spindle servo motor power
|
kW |
15 |
|
Range of spindle speed
|
r/min |
0-3000 |
|
Left and right power head units
|
Spindle specification |
|
BT40 precision high speed spindle |
Tool cooling mode |
|
BT40 precision high speed spindle |
|
Loosing tool method |
|
Pneumatic loosing tool |
|
Spindle servo motor power |
kW |
15 |
|
Range of spindle speed |
r/min |
0-3000 |
|
Processing capability
|
Drilling |
mm |
φ30 Carbide drill
|
mm |
φ40 twist drill |
||
Milling |
mm |
φ30 milling tool |
|
Tapping |
|
M20(Optional Item) |
|
Automatic tool changer |
|
3 tool manazine, each magazine has 4 tools (optional) |
|
CNC axes number and servo motor
|
CNC Axes |
|
8 axes(Withour tool hoder) 12 axes (With auto tool holder)
|
Spindle servo motor power
|
kW |
15×3 |
|
The spindle feeds the servo motor power
|
kW |
2KW×3 (With precision reducer) |
|
Gantry and power head move servo motor power |
kW |
2KW×5 (With precision reducer) |
|
Tool magazion servo motor power |
kW |
0.6KW One rotary tool magazine is used, 2 inline tool magazine are not used |
|
Controlling system |
Controlling system |
|
Computer+PLC (Without Tapping) |
|
tandard CNC system (with tapping) |
||
Cooling system |
Cooling method |
|
(See power head unit description) |
Air source pressure (supplied by user) |
mPa |
0.6 |
|
Chip removal system |
Power of a screw chip drainer |
kW |
1.1(Optional Item) |
Machine total power |
|
kW |
about 53 |
Total weight |
|
T |
about 15 |
Outline demension |
L*W*H |
mm |
About 11000×2000×3000 |
