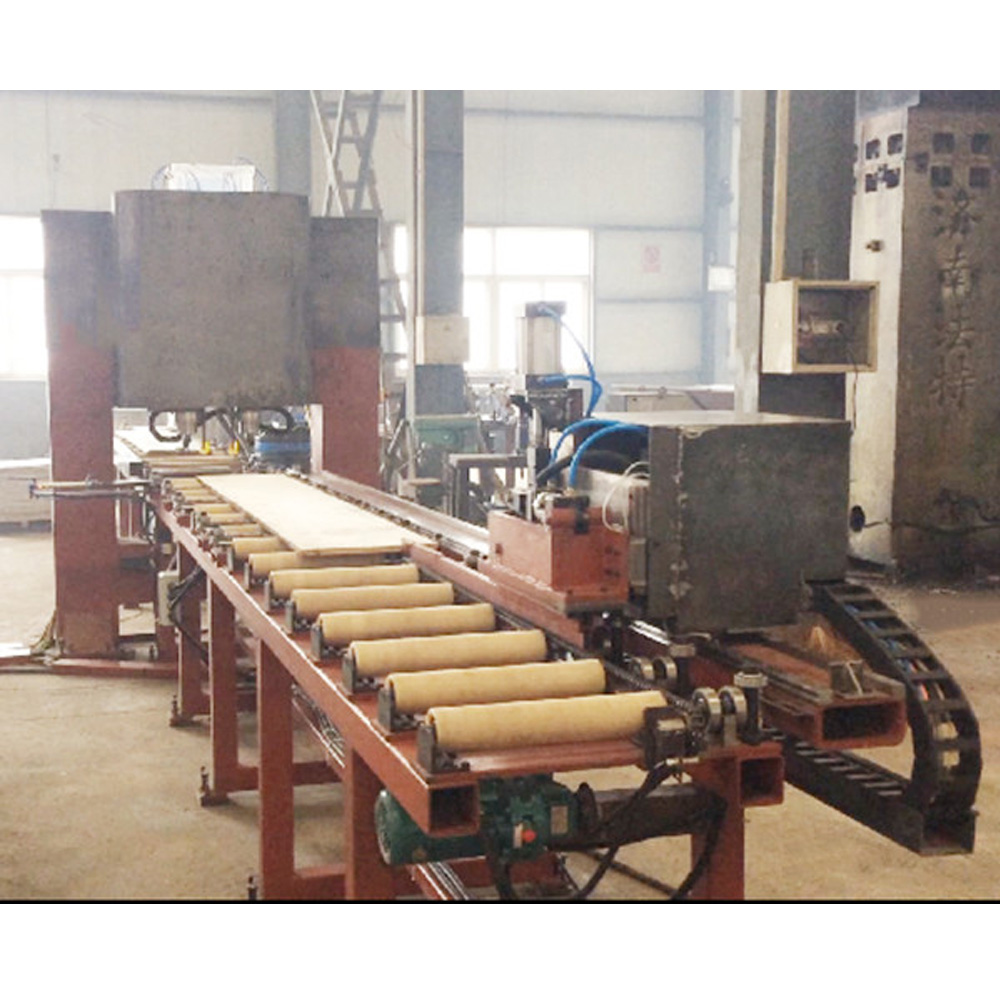

CNC Drilling For Plastic Composite Board
1、Usage
This machine is designed and manufactured for the purpose of drilling for the aluminum plastic composite board. Two power heads and two drilling spindle are installing on the equipment. Numerical control of machine tool processing, convenient operation. It can realize automation, high precision, mass production.
2、Machine Composition
Feeding channel, CNC feeding conveyor, gantry drilling unit, unloading route, pneumatic system and controlling system.
2.1 CNC feeding conveyor:to undertake the blank material, to make the material depend on one side of the positioning. The other CNC feeding conveyor is the support of guide of trolley and driver. Effective length 2600mm.
2.2、CNC feeding trolley: Clamping the workpiece and CNC feeding alone route
1 |
Trolley moving speed |
0~60000 mm /min |
2 |
Trolley stroke (X axis) |
2600mm |
3 |
Trolley servo motor power |
1.5KW |
4 |
Clamp arm lifting motor power |
0.25KW |
5 |
Trolley driving |
Gear and rack, mold m=1.25 |
6 |
Trolley support rails |
25mm |
1 |
Distance between end of the spindle and the working table |
70~350 mm |
2 |
Drilling diameter range |
≤Ф6(Aluminum plastic composite plate) |
3 |
Spindle feeding |
Servo controls |
4 |
Drilling heads No. |
Double heads, each head has one spindle. |
5 |
Clamper type |
ER20 |
6 |
Spindle power |
1.5KW×2 |
7 |
Spindle rotary speed |
100-6000r/min |
8 |
The main shaft end face & side beat degree |
0.02mm |
9 |
Dynamic head transverse mobile servo motor power |
0.75KWX2 |
10 |
Dynamic head horizontal stroke range(Y1,Y2 axes) |
10-250mm |
200-450mm |
||
11 |
Spindle feeding stroke(Z1,Z2 axes) |
280mm |
12 |
Spindle feeding speed |
0~4000 mm /min |
13 |
Spindle feeding servo motor power |
0.75KWX2 |
14 |
Driving Screw model |
Ф32mm |
15 |
Support guide rail model |
Y Axis 30mm,Z Axis25mm |
FAQ
· Are you a Manufacturer or a Trading company?
Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.
Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc
· Do you have stock product ready to delivery?
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed,when to delivery?
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services?
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality?
Each machine must be carried out quality examination and test when shipping and delivery goods.
