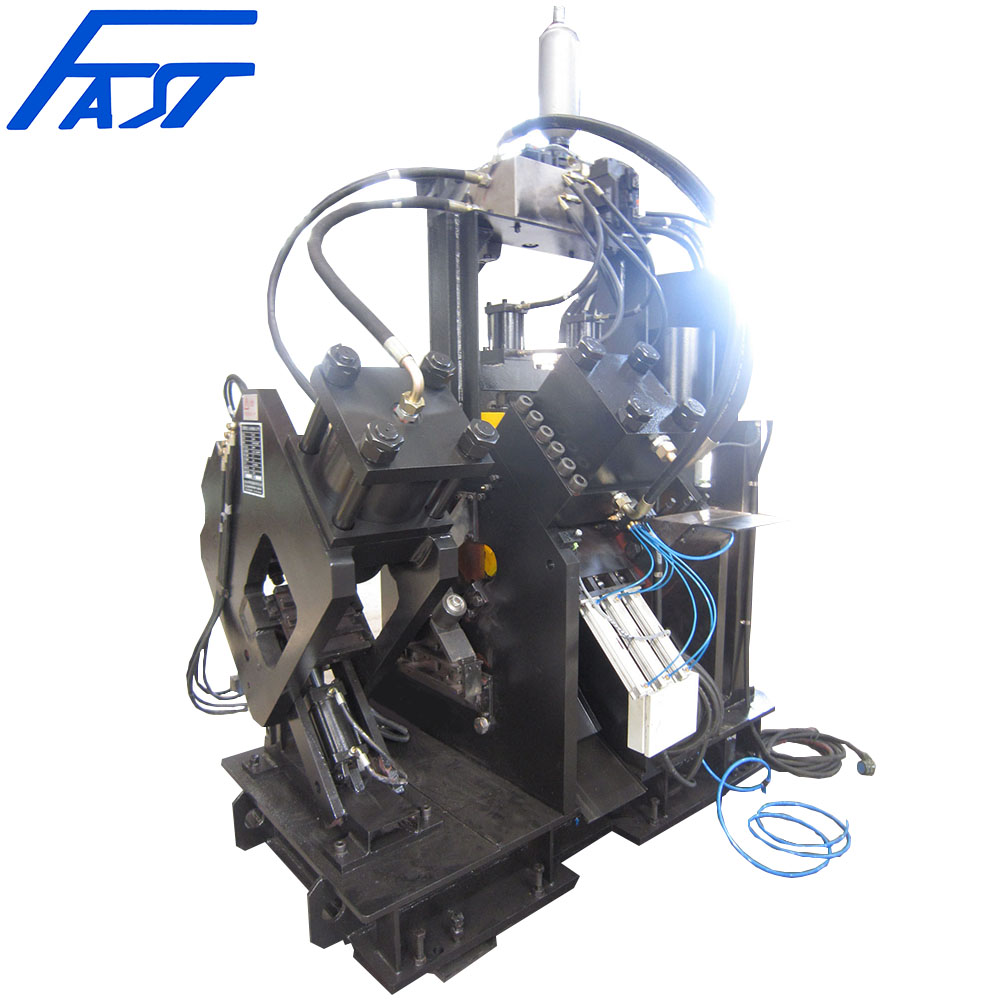

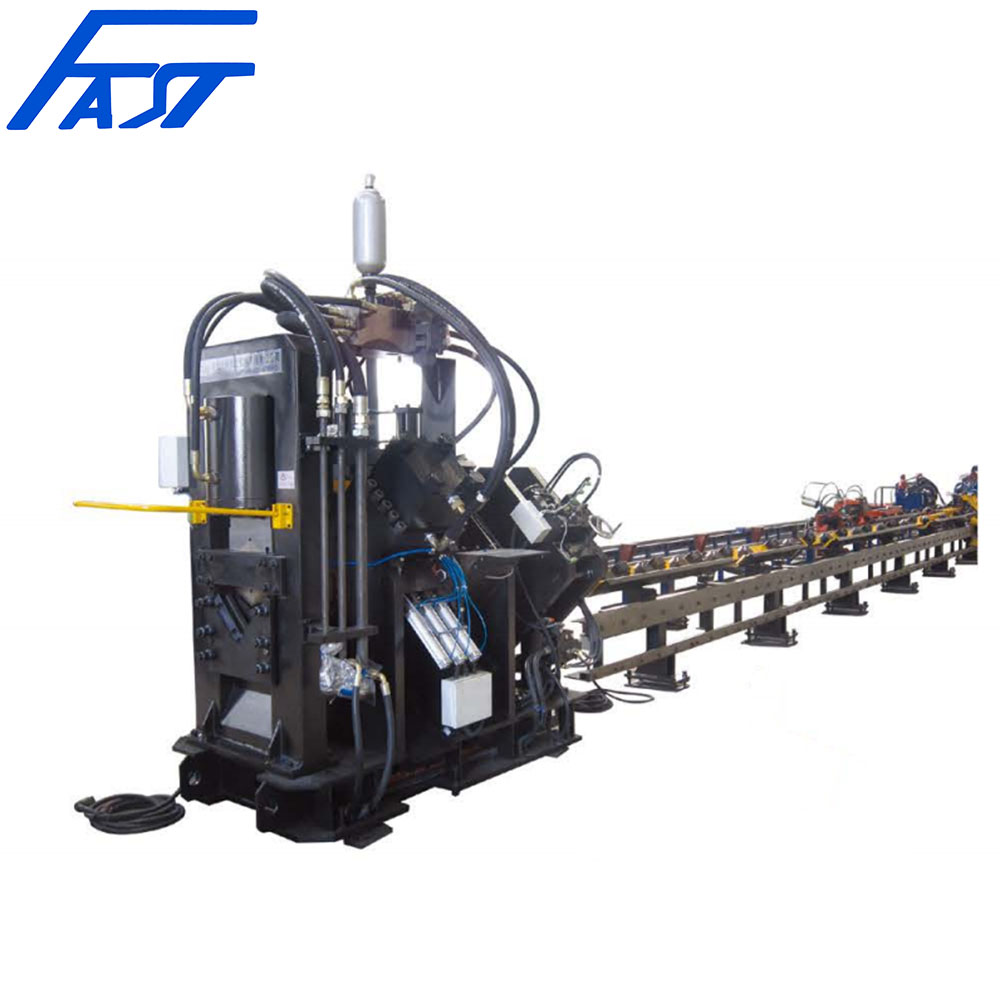

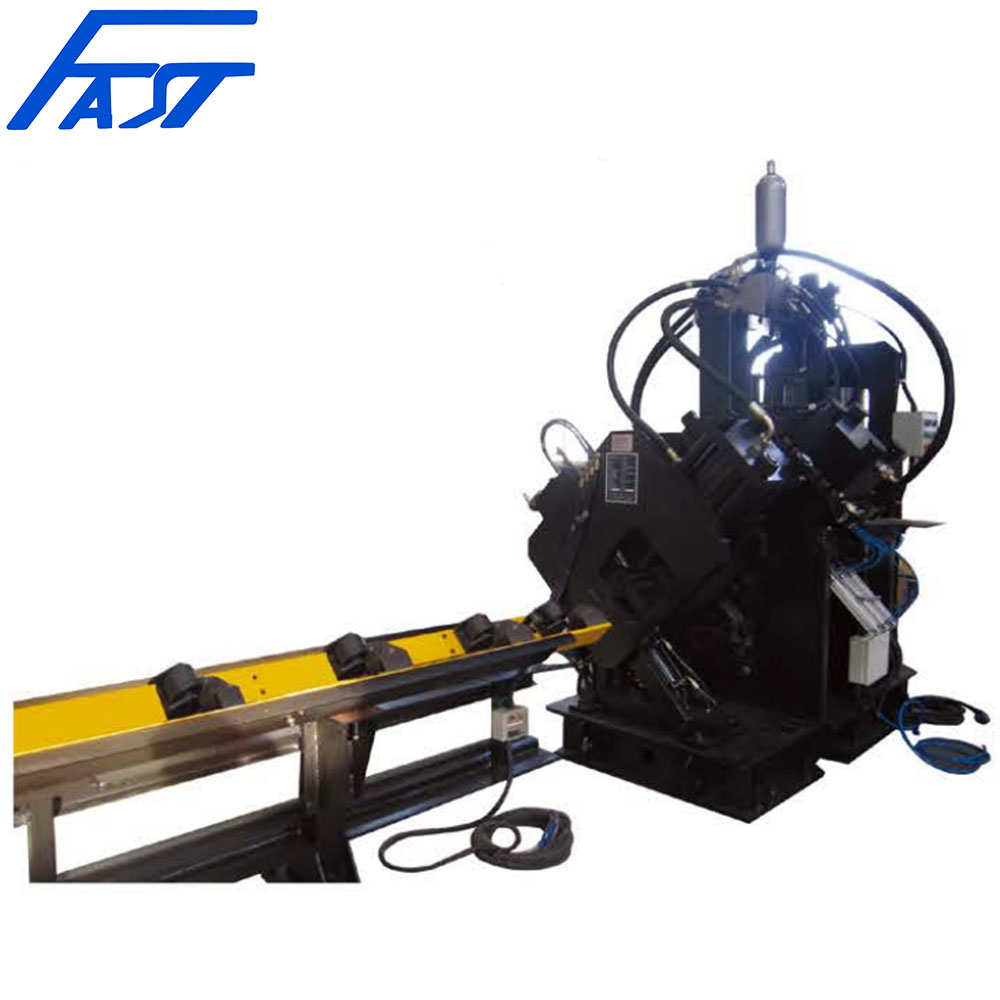

CNC Punching, Marking & Shearing Line For Angles JX2020
APPLICABLE INDUSTRY

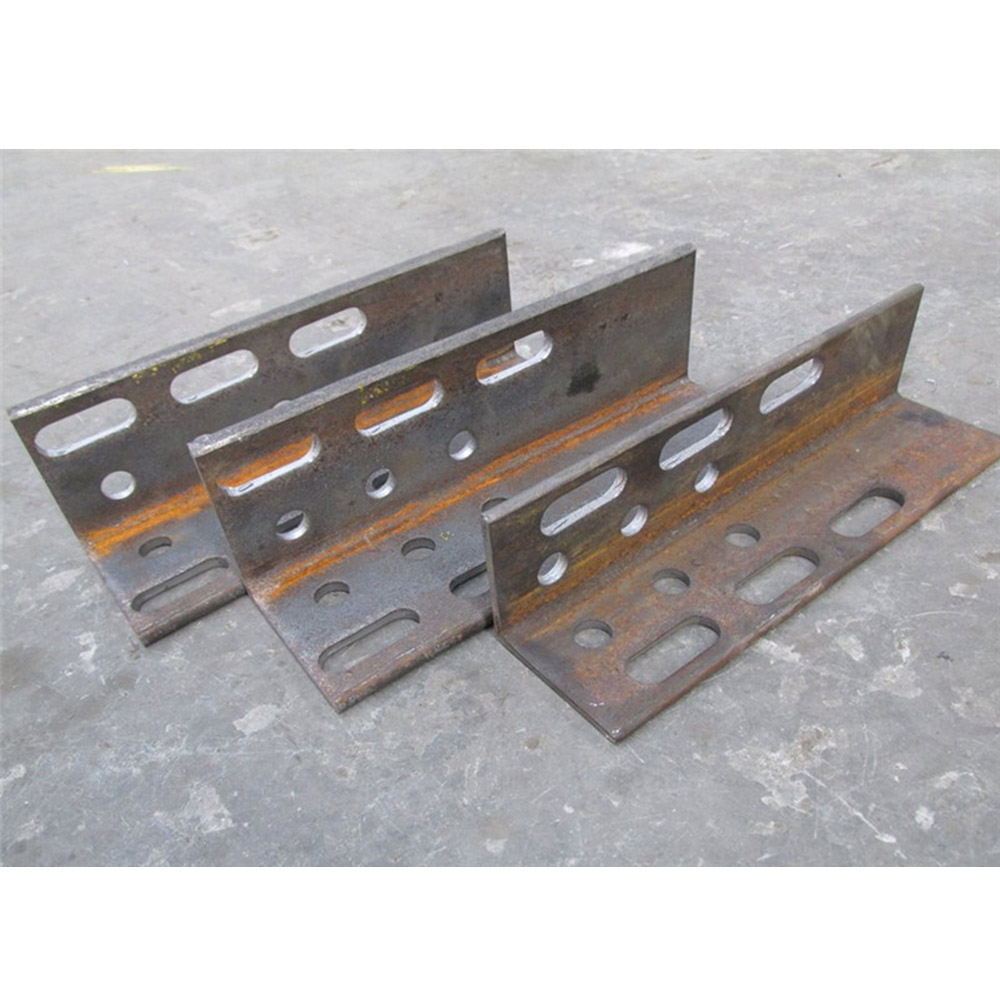

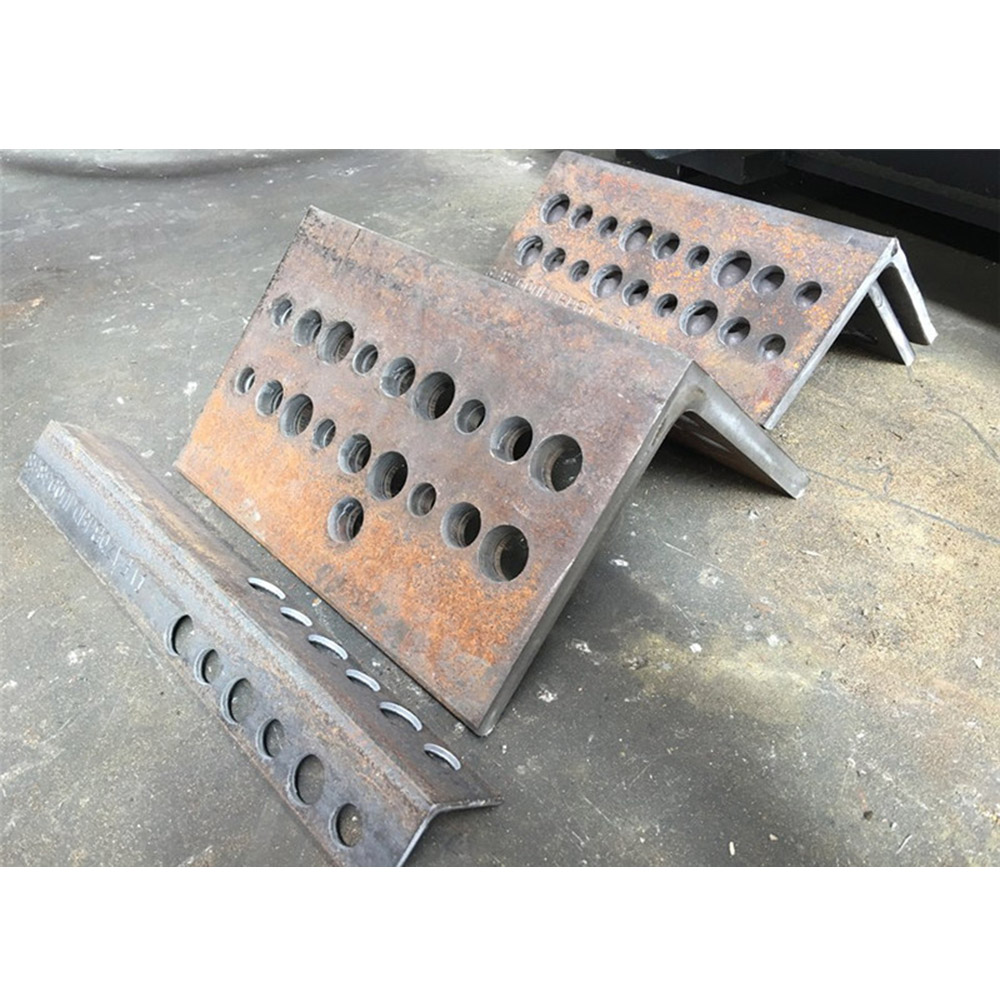

This machine is the automatic special production line used for angle steel punching, marking, and shearing mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries, etc.
COMPOSITION
Material platform |
Cross feeding conveyor |
CNC feeding trolley |
CNC conveyor |
CNC marking unit |
CNC punching unit |
Retainer(supporting material) |
CNC cutting unit |
Outfeeding conveyor |
Hydraulic station |
Controlling system |
TECHNICAL DATA
Model
JX2020
FAPM2020
FAPM2020A
FAPM2020C
Angle Size (mm)
50*50*4~200*200*20
50*50*4~200*200*20
50*50*4~200*200*20
50*50*4~200*200*20
Max. Punching (D*T) (mm)
Φ26x20
(Q345)
Φ26x20
(Q420)
Φ26x20
(Q420)
Φ26x20
(Q420)
Punching Force (kN)
1000
1200
1200
1200
Marking Force (kN)
700
1000
1000
1000
Shearing Force (kN)
1600
2000
4000
4000
Max. Length of blank(m)
14
14
14
14
Max.length of finished (m)
12
12
12
12
Qty. Of punching head on each side (pcs)
3
3
3
3
NO. of Character Group (Piece)
4
4
4
4
No. of Character in Each Character Group (Piece)
12
18
18
18
Character Size (mm)
14*10*20
Shearing modes
Double blade
Double blade
Single blade
Single blade
CNC Axes (Piece)
3
Feeding Speed of Angle (m/mm)
60
60
60
60
Programming Mode
Lofting software or instruction programming
Overall Dimension (m)
About 32*7*2.6
About 32*7*2.6
About
32*7*2.6
About
32*7*2.6
Net Weight (kg)
About 17500
About 17500
About 17500
About 17500
FAQ
· Are you a Manufacturer or a Trading company?
Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.
Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc
· Do you have stock product ready to delivery?
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed,when to delivery?
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services?
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality?
Each machine must be carried out quality examination and test when shipping and delivery goods.
