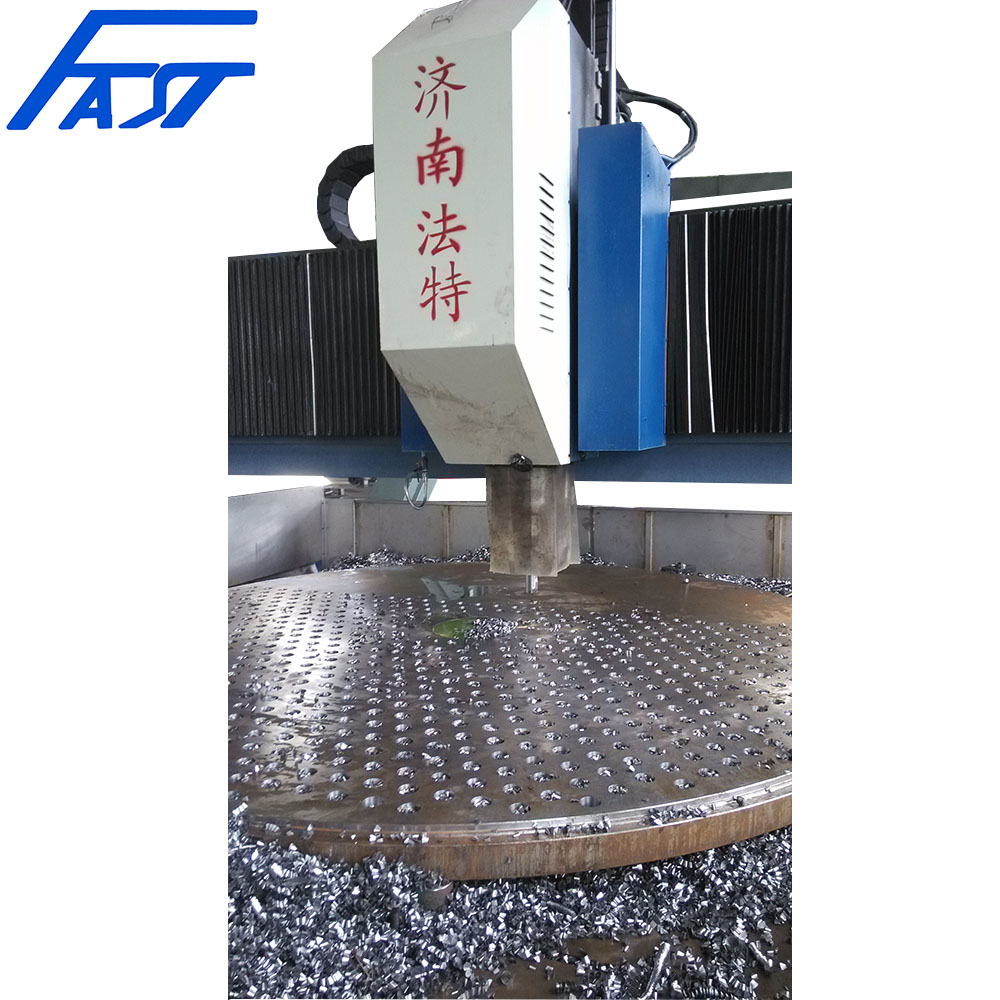

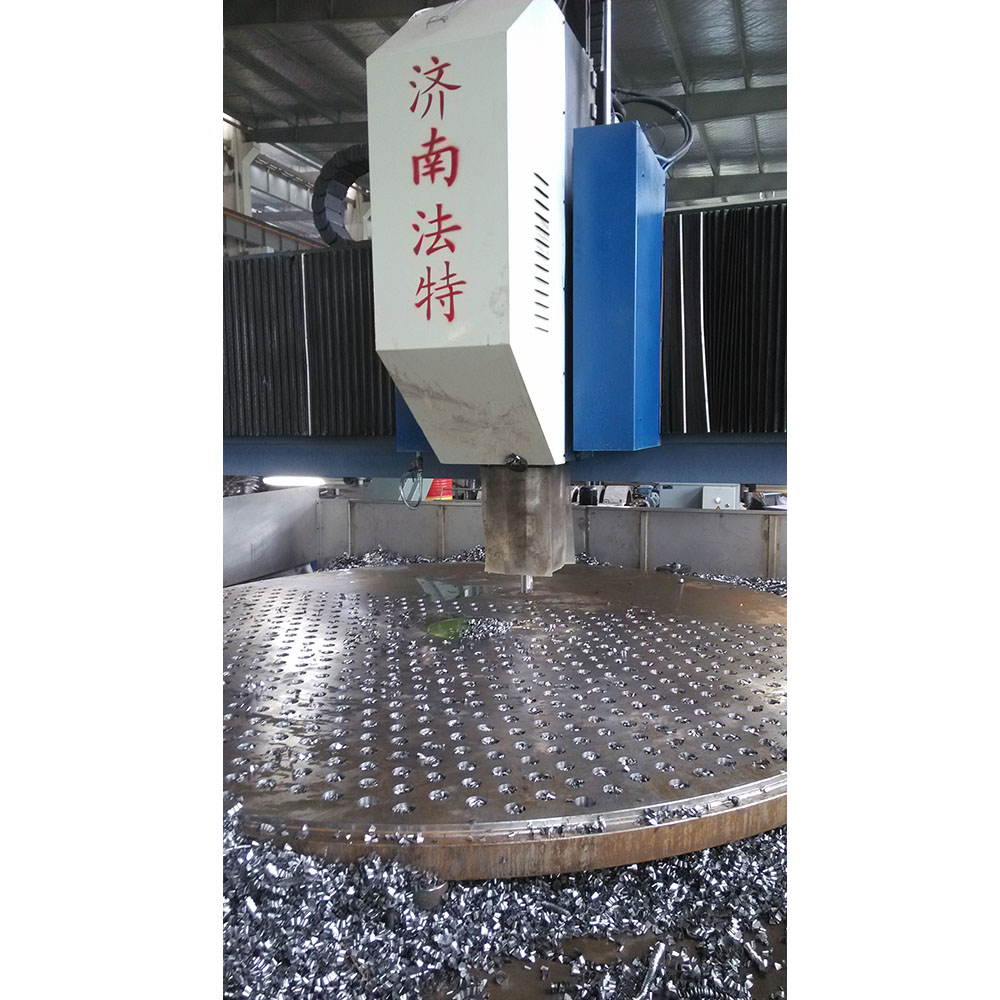

PZG4040 CNC DRILLILNG MACHINE FOR TUBESHEET/ FLANGE

Category:PLATE DRILLING MILLING MACHINE

Product specifications:

Drilling Machine, 3000*3000 plate drilling machine, High speed drilling machine for plate, cnc plate drilling machine price

  • High-speed CNC Drilling And Milling Machine For Tubesheet/Flange


    APPLICATION

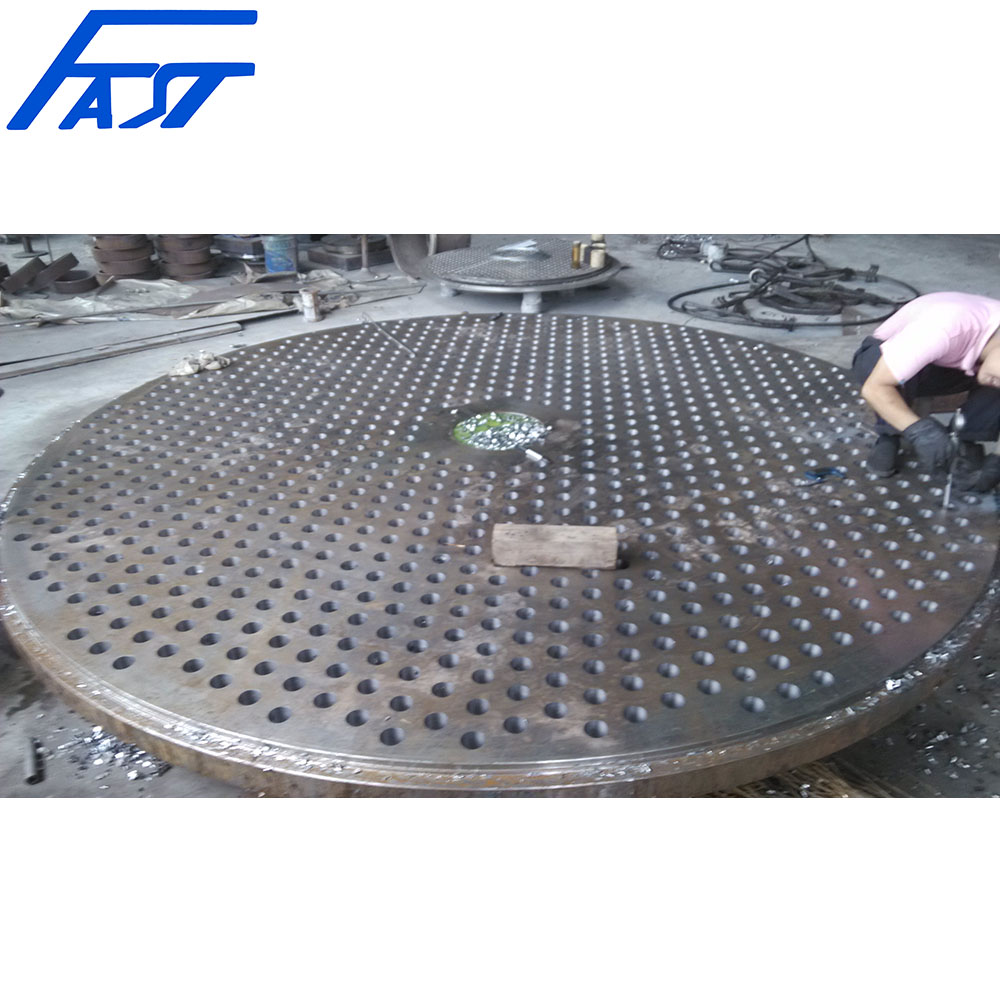

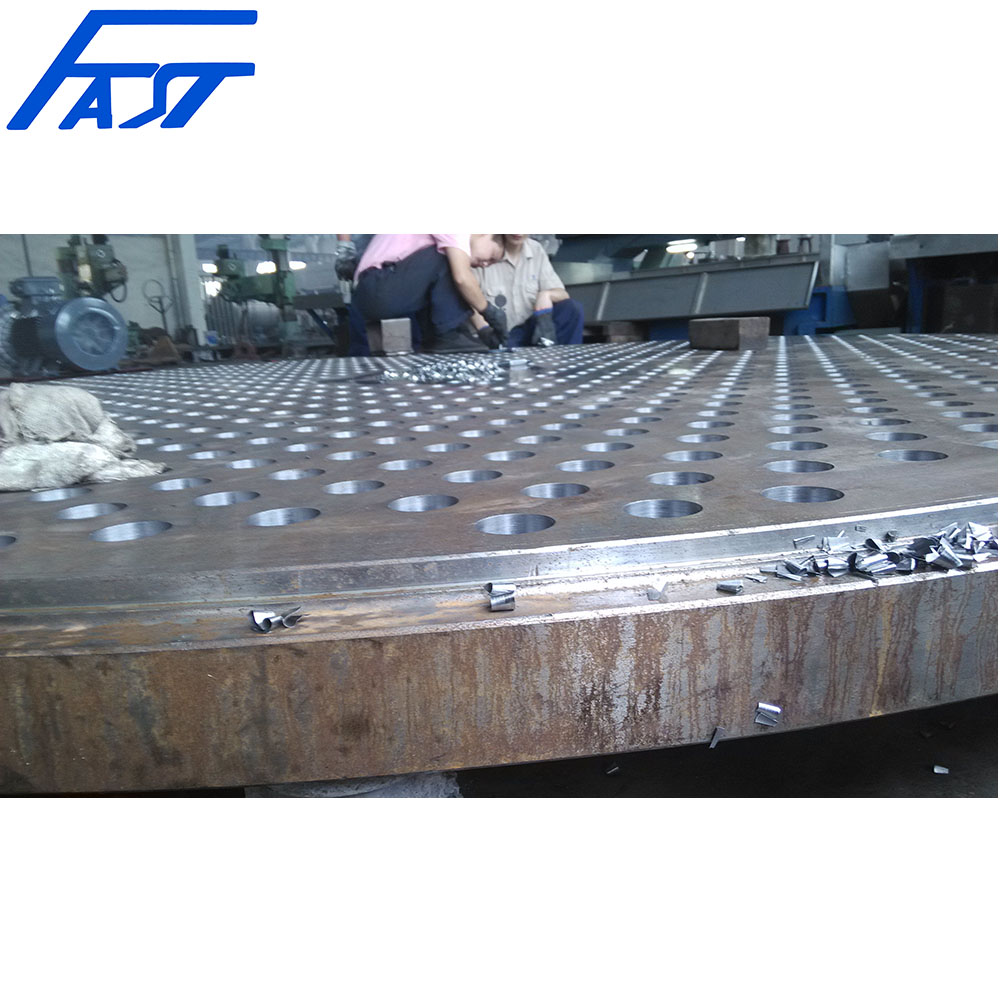

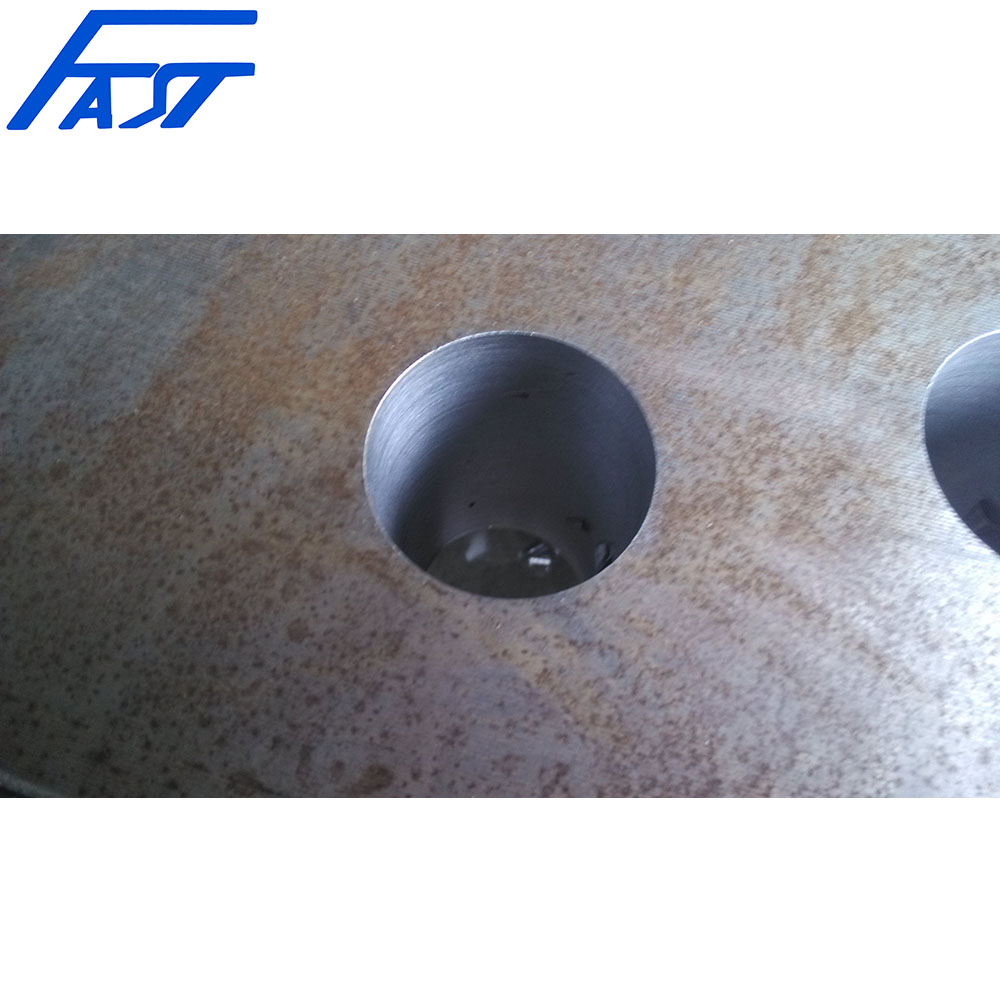

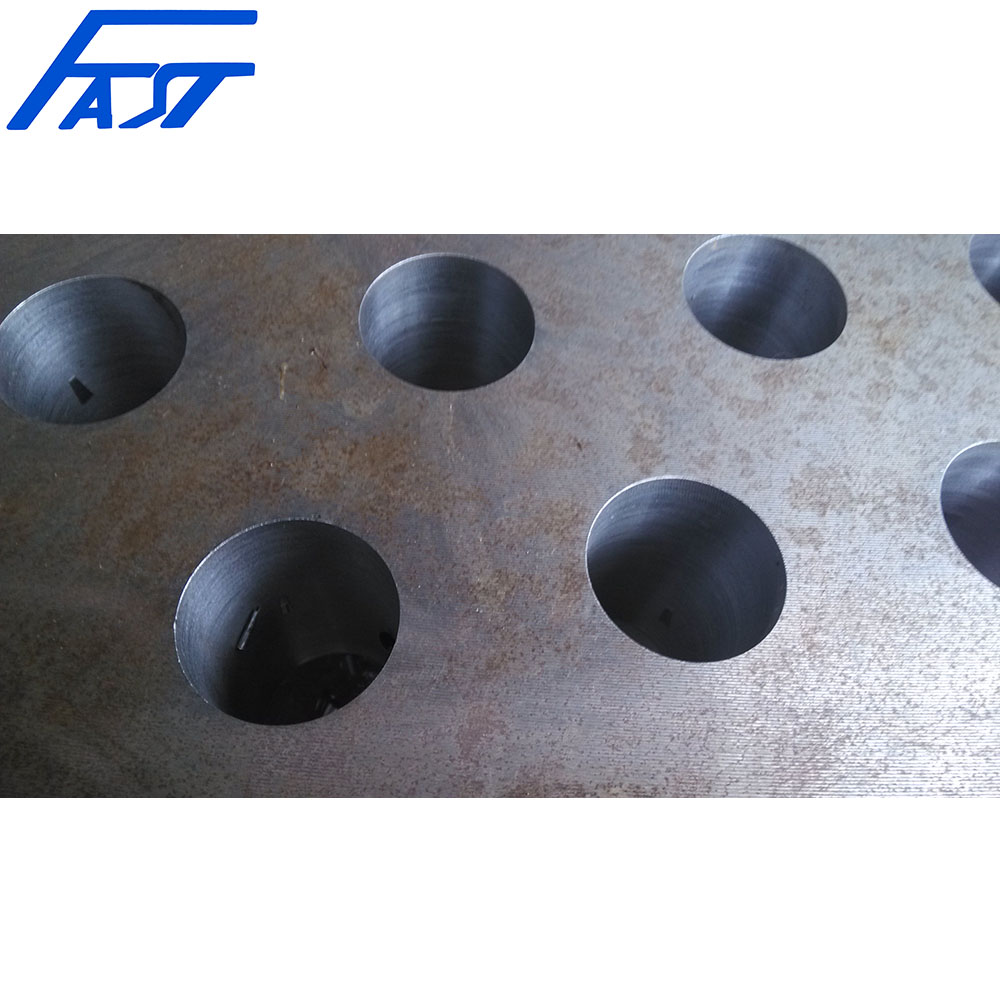

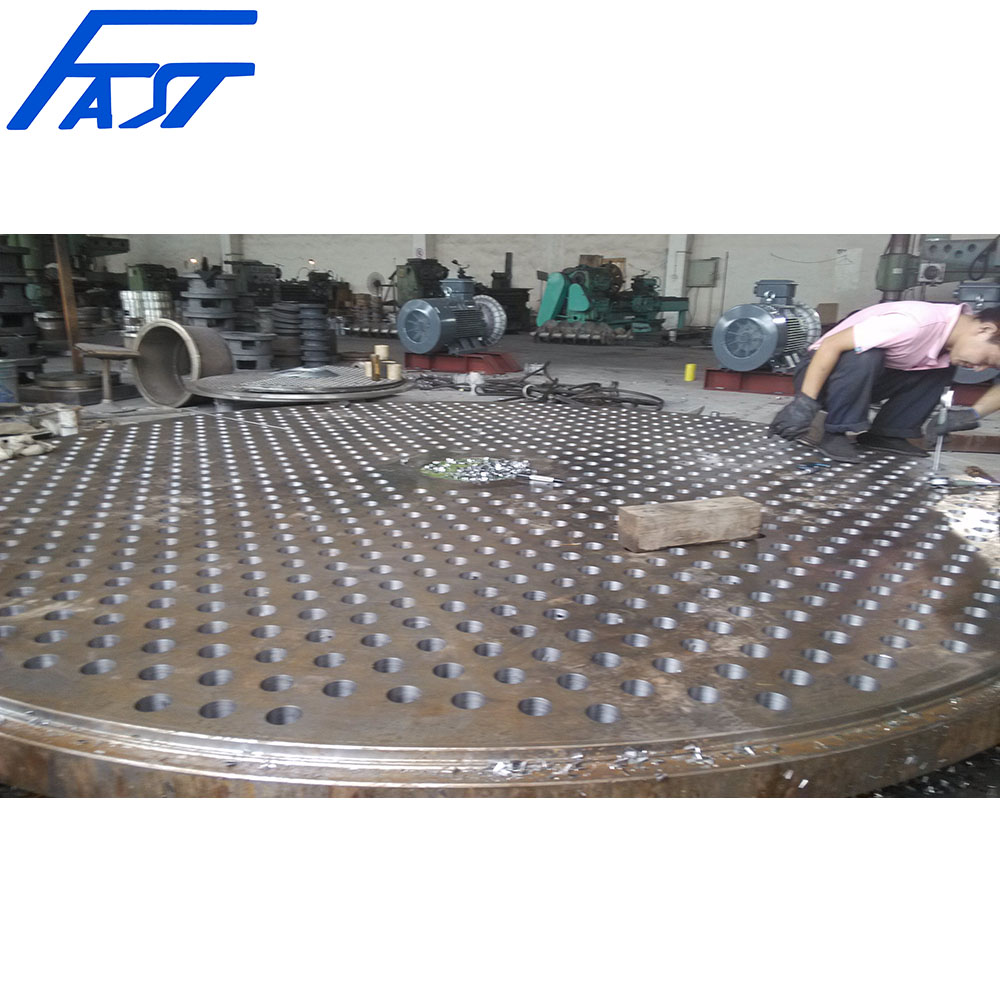

    This machine is used for the drilling,tapping and milling for tube plate, clapboard,flange and rings. It is used in petrochemical, boiler, and wind power flange industries, also for joint plates in building, bridge, iron tower, etc. It is suitable for carbon steel or composite materials. Carbide milling cutter or high speed steel twist drill bit are adopted. Digital control can realize automation, high precision, varieties, batch production.


    COMPOSITION

    Left and right gantry base

    Worktable

    Longitudinal movable gantry

    Transverse movable saddle

    Vertical sliding pillow drilling power head

    Automatic chip removal

    Circulating cooling unit

    Hydraulic system

    Electric System


    TECHNICAL DATA

    Model

    PZ2020G

    PZ3030G

    PZ4040G

    PZ5050G

    PZ6060G

    Max. Size of Work piece(mm)

    Max.Hole Distance L×W (mm)

    2000*2000

    3000*3000

    4000*4000

    5000*5000

    6000*6000

    Max. Thickness (mm)

    250

    250

    250

    250

    250

    The Distance Between The Lower Part of The Axes and the Work

    Bench(mm)

    230~730

    Milling

    Φ100 Cutter Head, Depth 2mm (Material Q345)

    Max. Drilling Diameter (mm)

    Φ50

    Φ50

    Φ50

    Φ50

    Φ60

    Drilling power head Quantity

    1

    1 OR 2

    2

    2

    2

    Main Axes Taper Hole

    BT50

    Rotating Speed of Drilling Spindle (r/min)

    30~2500

    30~2500

    30~2500

    30~2500

    30~2500

    Motor Power of Drilling Spindle (kW)

    22

    22
    OR 22*2

    22*2

    22*2

    22*2

    Longitudinal Movement(X-axis) Max Stroke (mm)

    2000

    3000

    4000

    5000

    6000

    X-axis Movement Speed (m/min)

    0~8000

    Lateral Movement(Y axis) Max. Distance (mm)

    2000

    3000

    4000

    5000

    6000

    Y-axis Movement Speed (m/min)

    0~8000

    Vertical Max. Stroke of Z-axis

    500

    500

    500

    500

    500

    Feeding Speed of Z axis

    0~4000

    Positioning accuracy

    ≤0.04

    Repeat positioning accuracy

    ≤0.03

    Number of clip cleaner

    2

    Speed of Clip Removal (m/min)

    1

    Clip Removal Motor Power(kW)

    20.75

    Outline Dimension L*W*H(mm)

    4600*4200*3900

    5800*5520*3900

    7600*6540*3900

    9200*8500*4300

    9680*9520*6000

    Machine Weight(T)

    24

    35

    56

    70

    75

    All of these models can be customized according to customer requirements.



    FAQ

    · Are you a Manufacturer or a Trading company?

    Manufacturer + trading company integration),focusing on CNC machines for 18 years. Integration with DesignMachining and Assembly.

    Exporting to Russia,USA,AustraliaVietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc

    · Do you have stock product ready to delivery?

    In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.

    · After an order is placed,when to delivery?

    General 30 working days. It depends on specific items and item quantities.

    Please check with sale manager for exact delivery time.

    · What is the Warranty with After-sale Services?

    12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.

    After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.

    · What about the product quality

    Each machine must be carried out quality examination and test when shipping and delivery goods.
