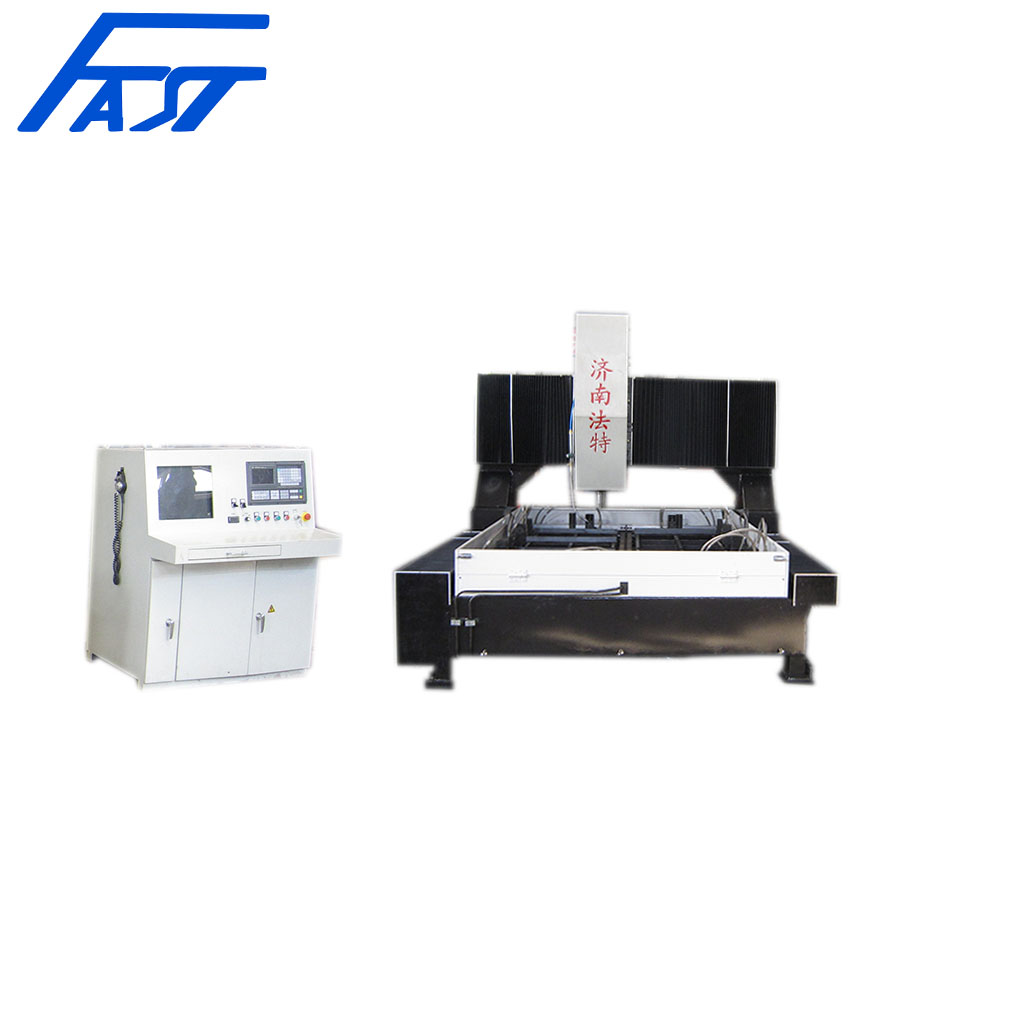

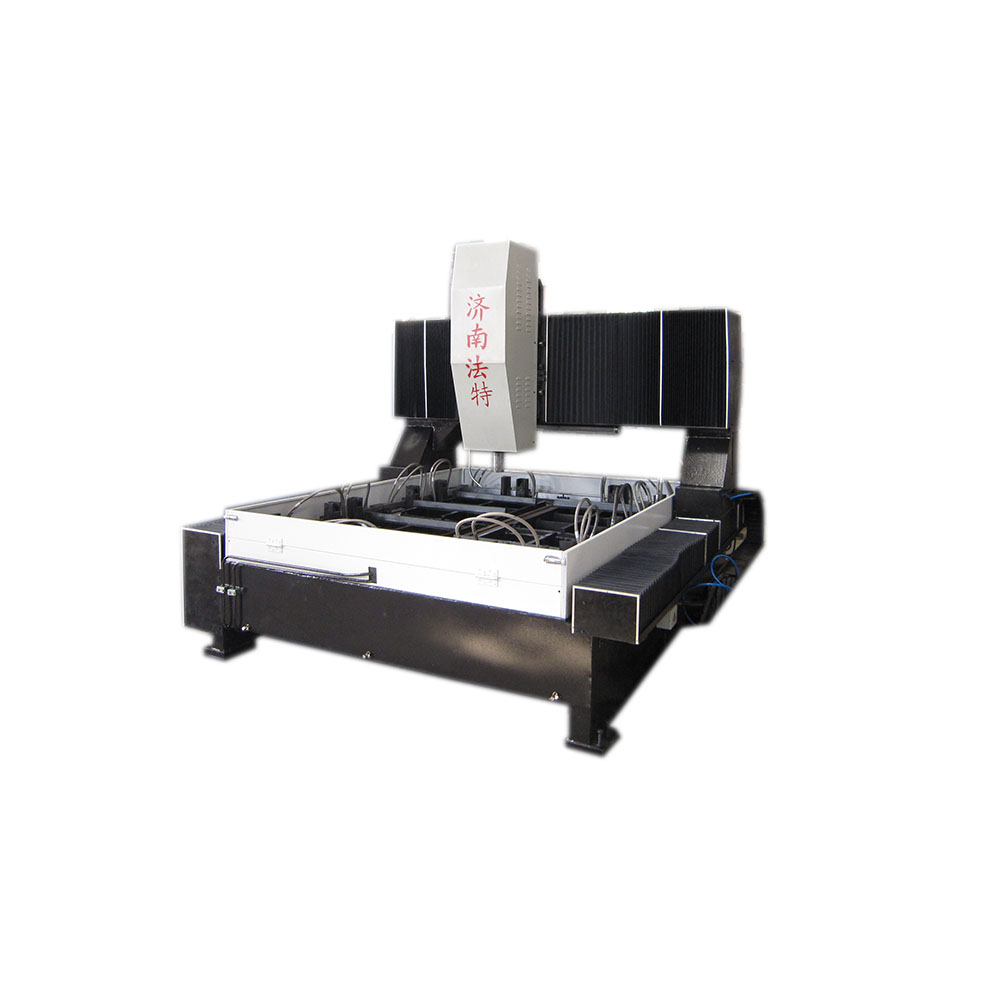

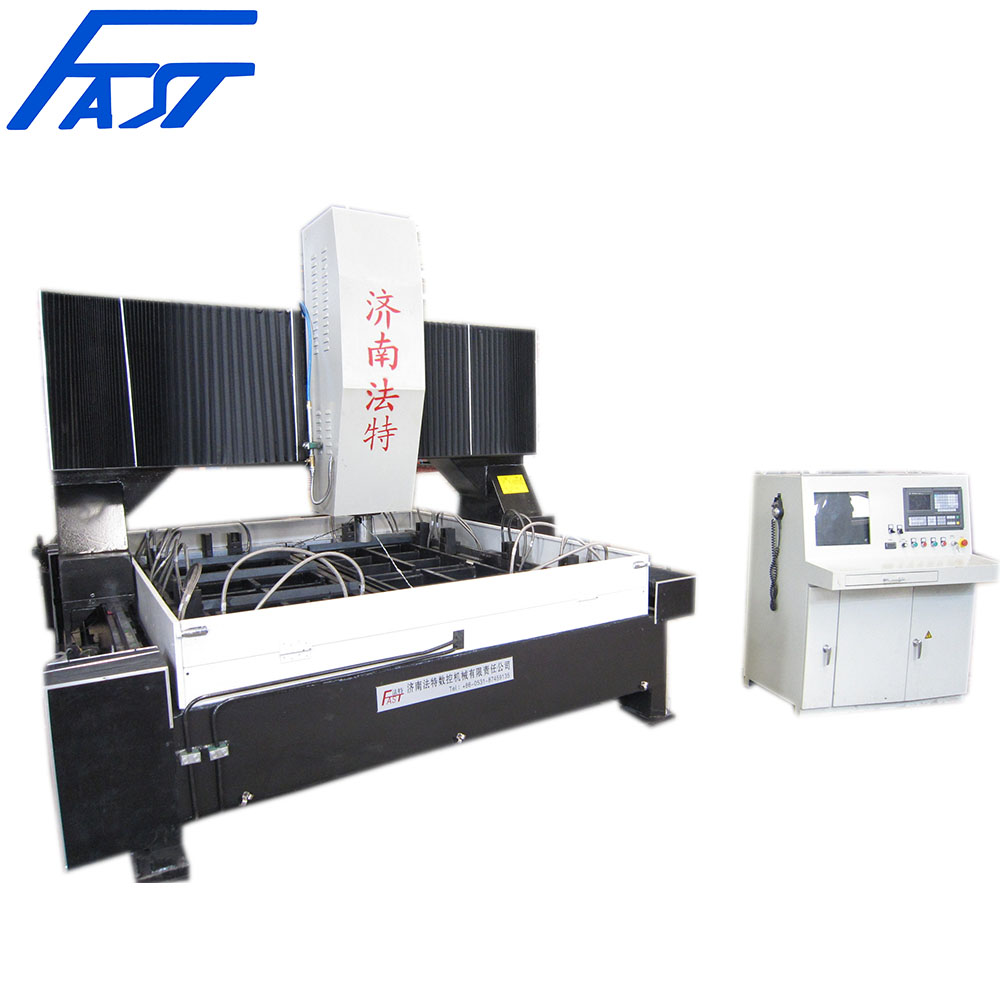

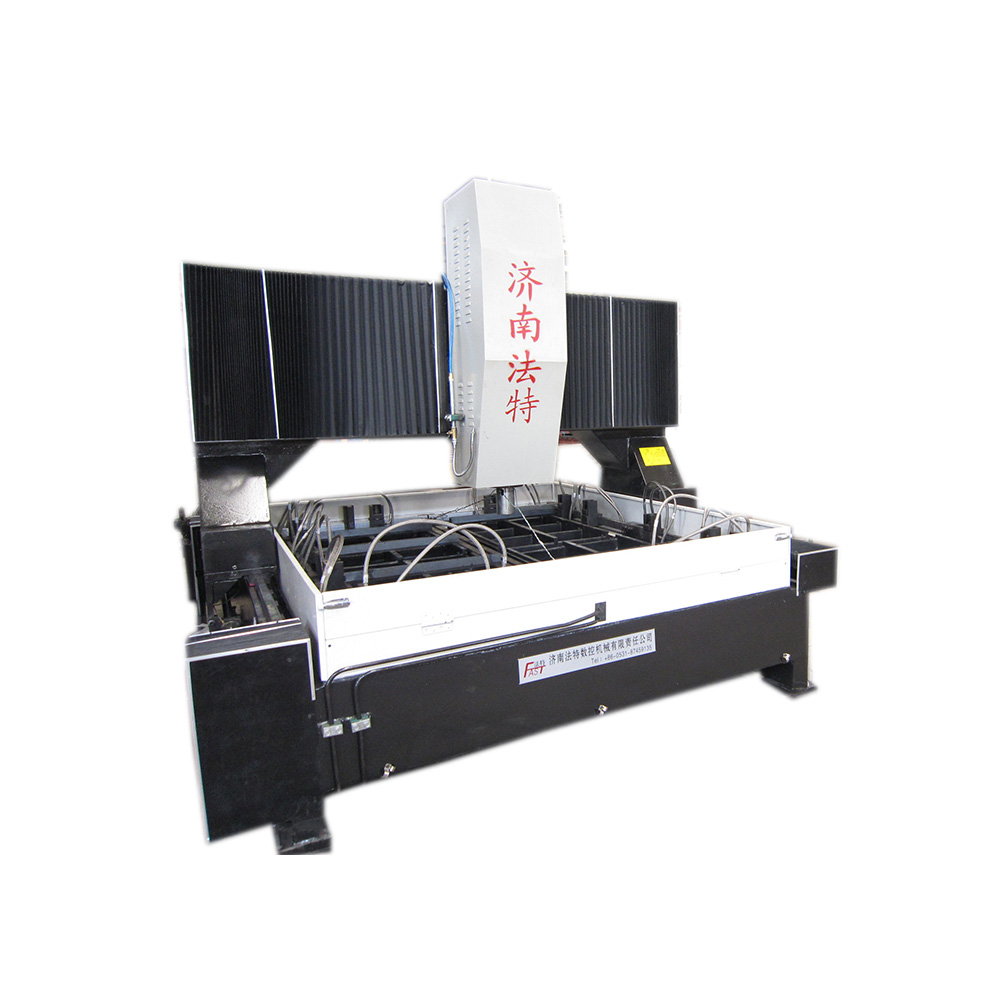

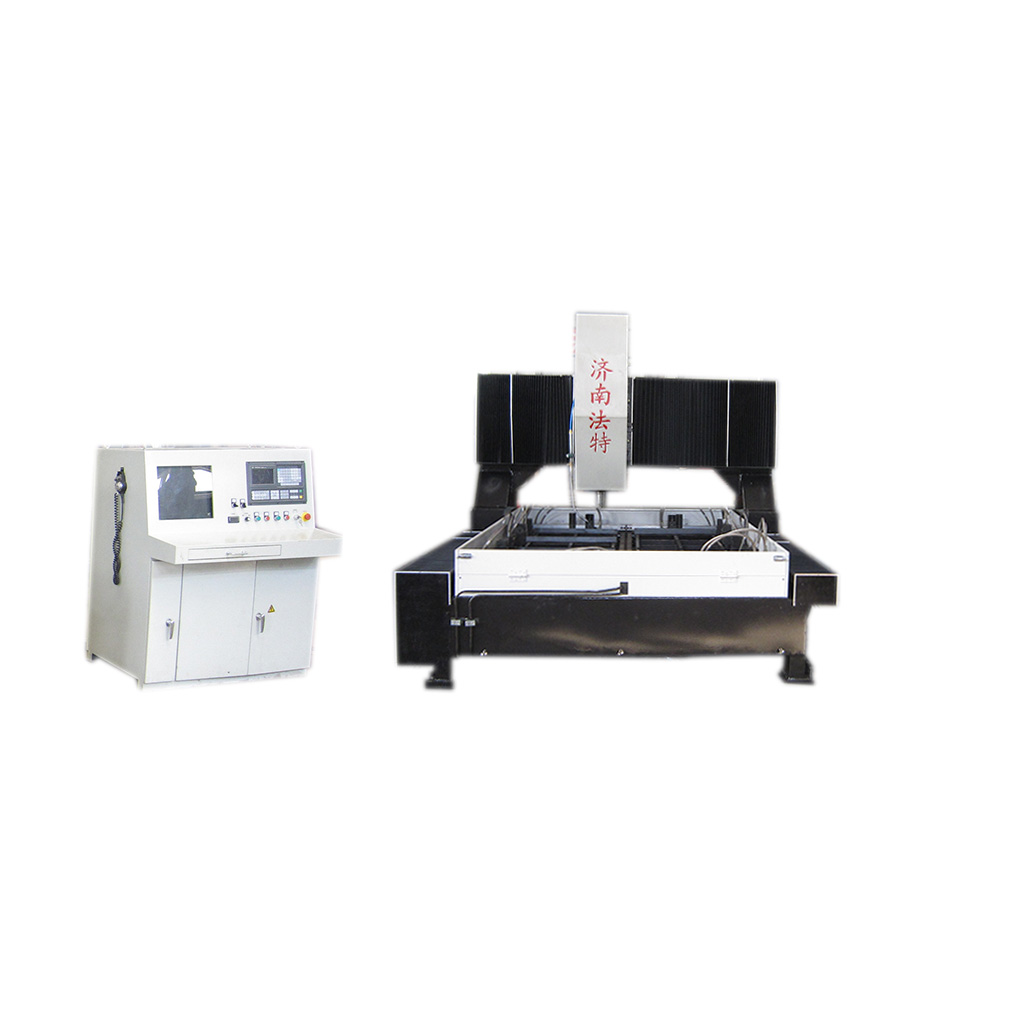

PZ2016 CNC Movable Double Tables Gantry Type Drilling Machine
APPLICATION
This machine is mainly used for drilling plates, flanges, discs, rings. Drilling through hole and blind hole can be realized on single materials and composite materials.It is also used for joint plates in building, bridge, iron tower, etc.
COMPOSITION

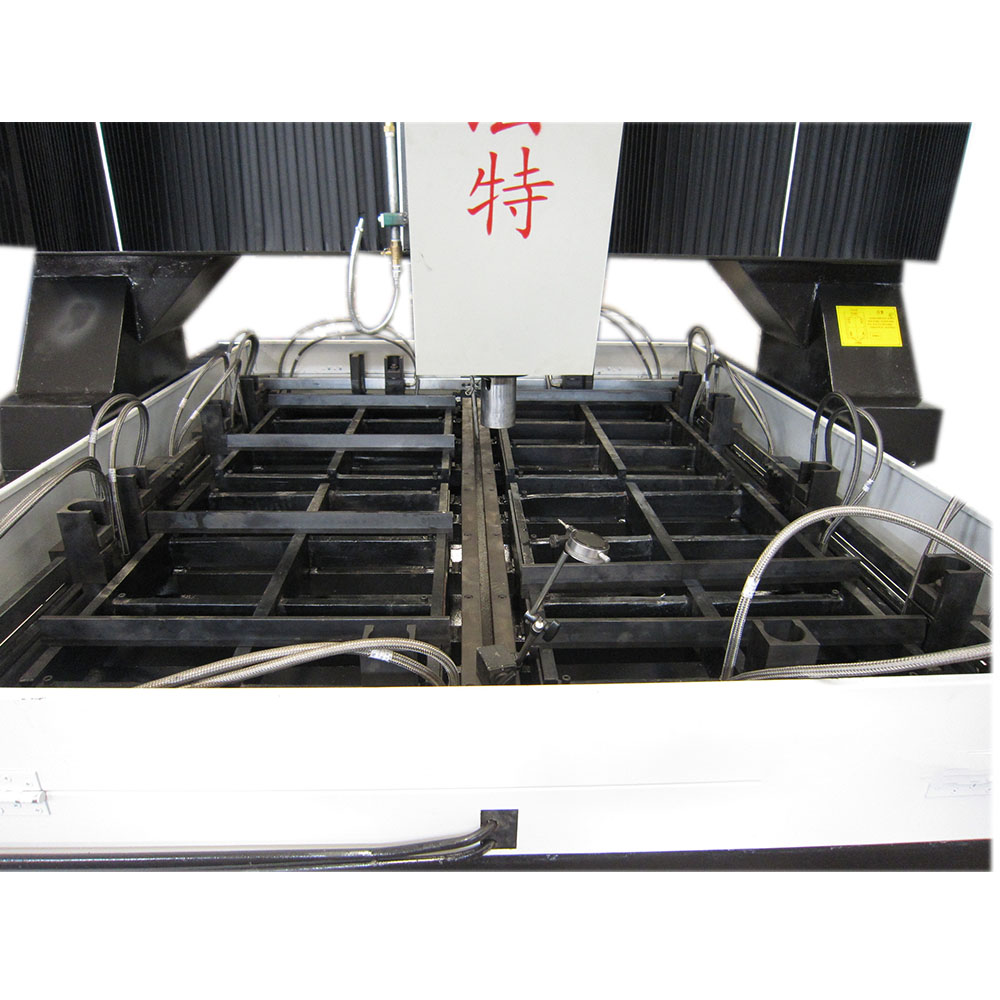

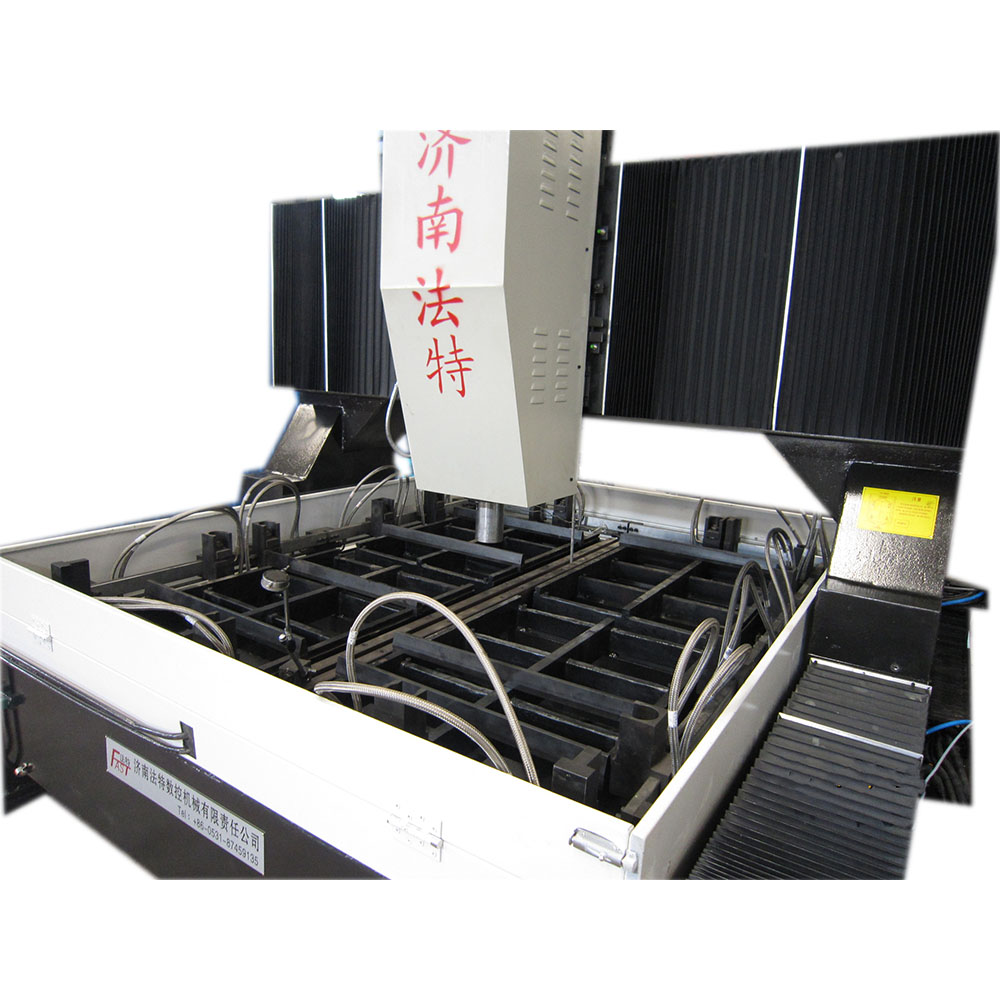

Worktable
Traveling gantry
Drilling power head
Automatic chip removal
Circulating cooling unit
Lubrication system
Hydraulic system
Pneumatic system
TECHNICAL DATA
Model
PZ1616
（Option PZ1610）
PZ2020
（Option PZ2016）
PZ3030
PZ4040
(Option PZ4016）
PZ5050
Max. Size of Workpiece (mm)
Max. Processing Range L*W (mm)
1600*1600（Option 1600*1000）
2000*2000（Option 2000*1600）
3000*3000
4000*4000（Option 4000*1600）
5000*5000
Max. Drilling Diameter (mm)
Φ 50
Max. Drilling Depth (mm)
150
200
250
Drilling Spindle
Type
Servo controlling power head
Quantity
1
1 (option 2)
2
Spindle Rotation Speed
30-700
Spindle Power
7.5
7.5 ( Option 7.5*2)
Morse Taper
#4
X Axis
Max. Stroke
1600
2000
3000
4000
5000
Speed
0-6000
Y Axis
Max. Stroke
1600
2000
3000
4000
5000
Speed
0-6000
Z Axis
Max. Stroke
350
400
400
500
500
Speed
0-4000
Positioning accuracy
≤ 0.04
Re-positioning accuracy
≤ 0.03
Net Weight (Ton)
4.6
7
15
28
42
Overall Dimension L*W*H (mm)
2850*2640*2500
3450*3120*2550
4800*4400*2650
5900*5400*2850
7000*6600*2850
★ All of these models can be customized according to customer requirements.
FAQ
· Are you a Manufacturer or a Trading company？
Manufacturer + trading company （integration），focusing on CNC machines for 18 years. Integration with Design，Machining and Assembly.
Exporting to Russia，USA，Australia，Vietnam，Brazil，Ethiopia，Tunisia，Bulgaria，India，Indonesia，Jordan，Pakistan，etc
· Do you have stock product ready to delivery？
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed，when to delivery？
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services？
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality？
Each machine must be carried out quality examination and test when shipping and delivery goods.
