Category:STEEL TUBE MACHINE
Product specifications:
Formed steel pipe machine, Formed steel pipe straighten machine, Hydraulic formed steel pipe straighten machine, Hydraulic linking and straightening machine for formed steel pipe

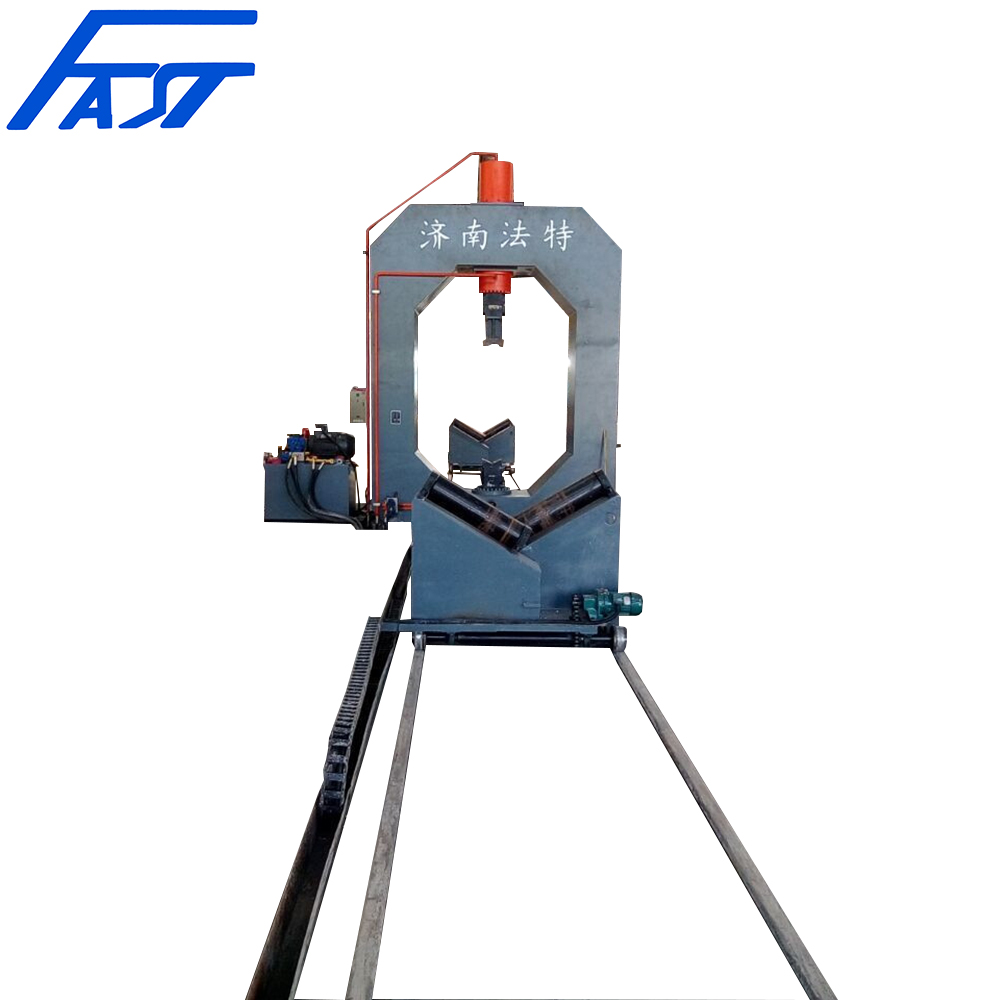

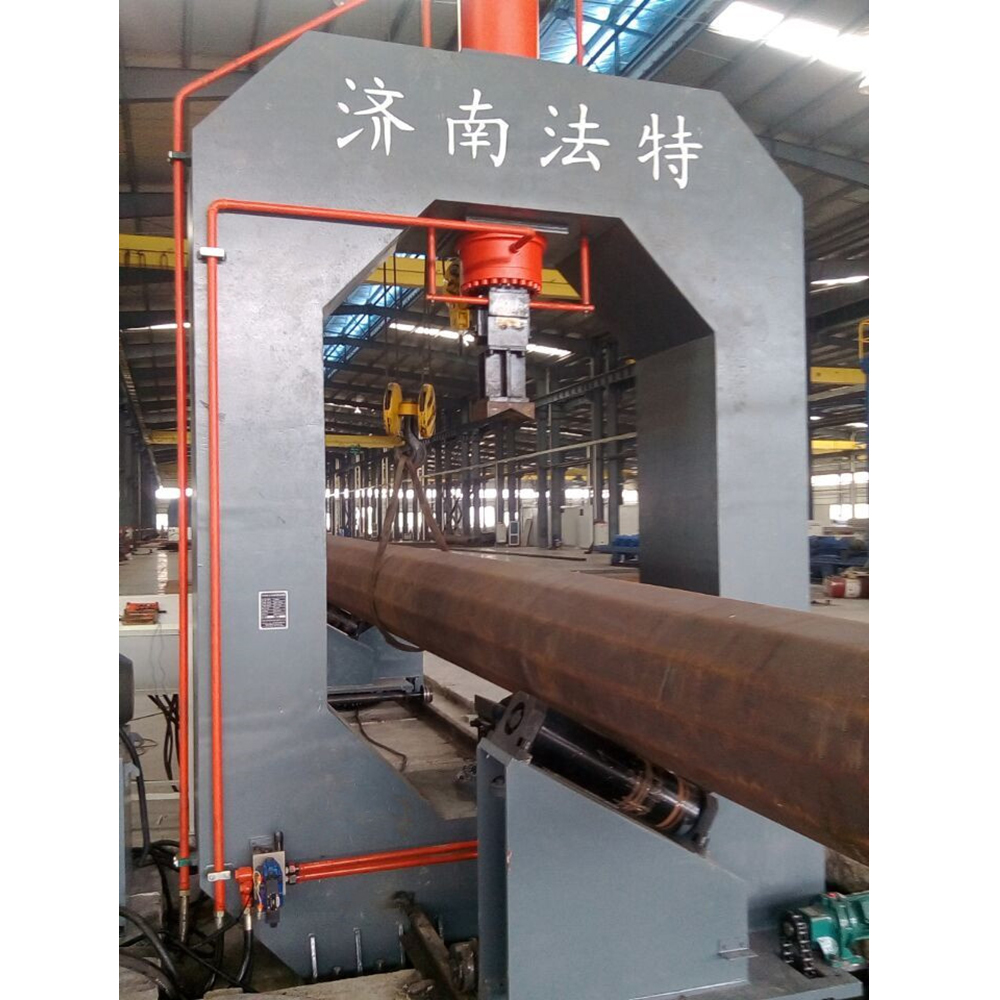

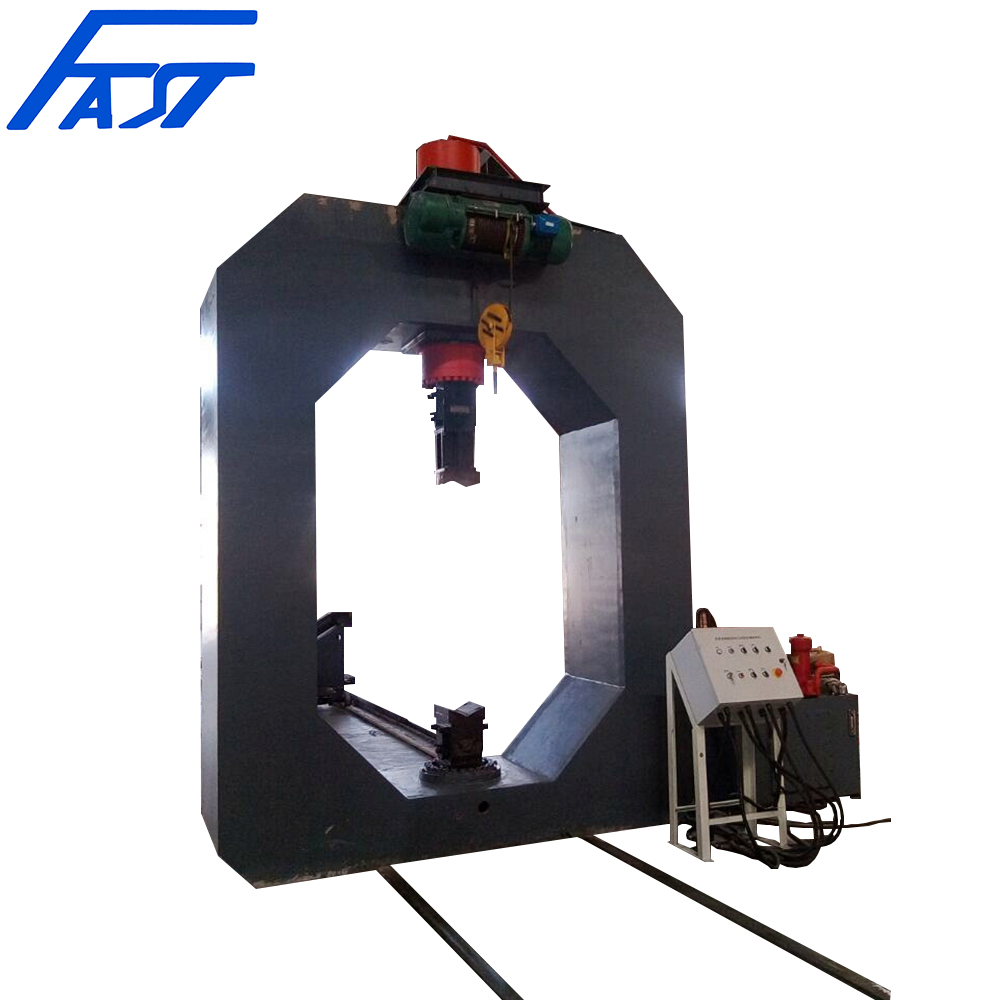

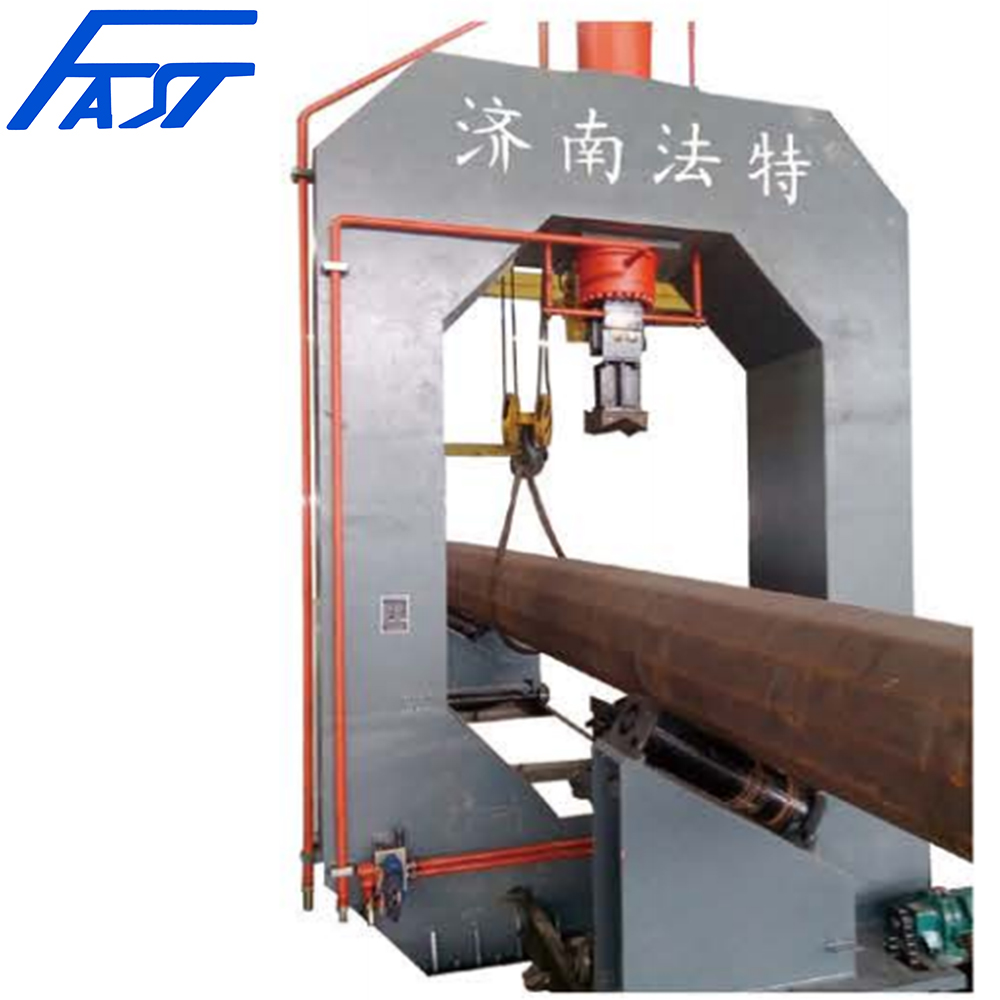

Hydraulic Linking and Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine
APPLICATION
This machine is gantry hydraulic joint straightening machine, mainly used for steel pipe rolling or bending formed steel tube with pressing, jointing & straightening. It is easy for the steel pipe welding. It can be also used in cylinders and cones rib tube joint alignment welding. In a wide range of application, such as petroleum, electricity, shipbuilding & chemical industries, ect has been widely used.
FEATURES

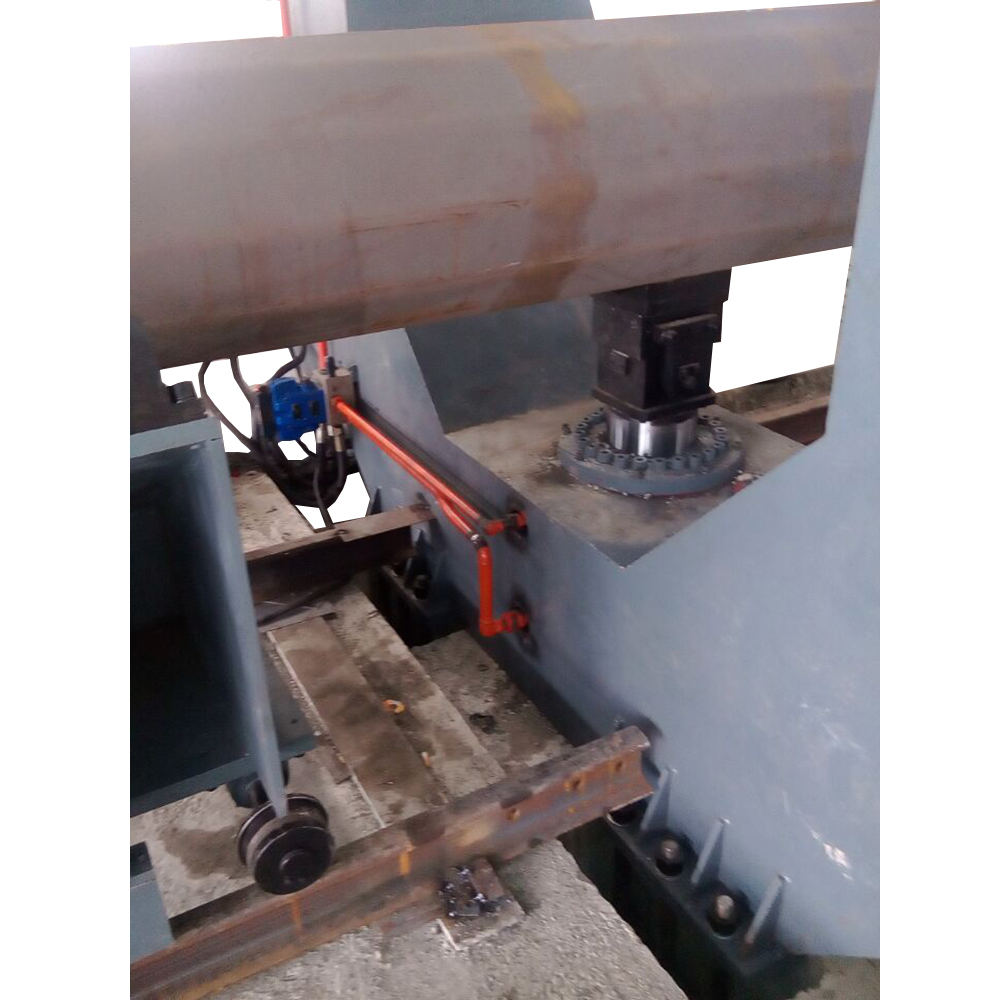

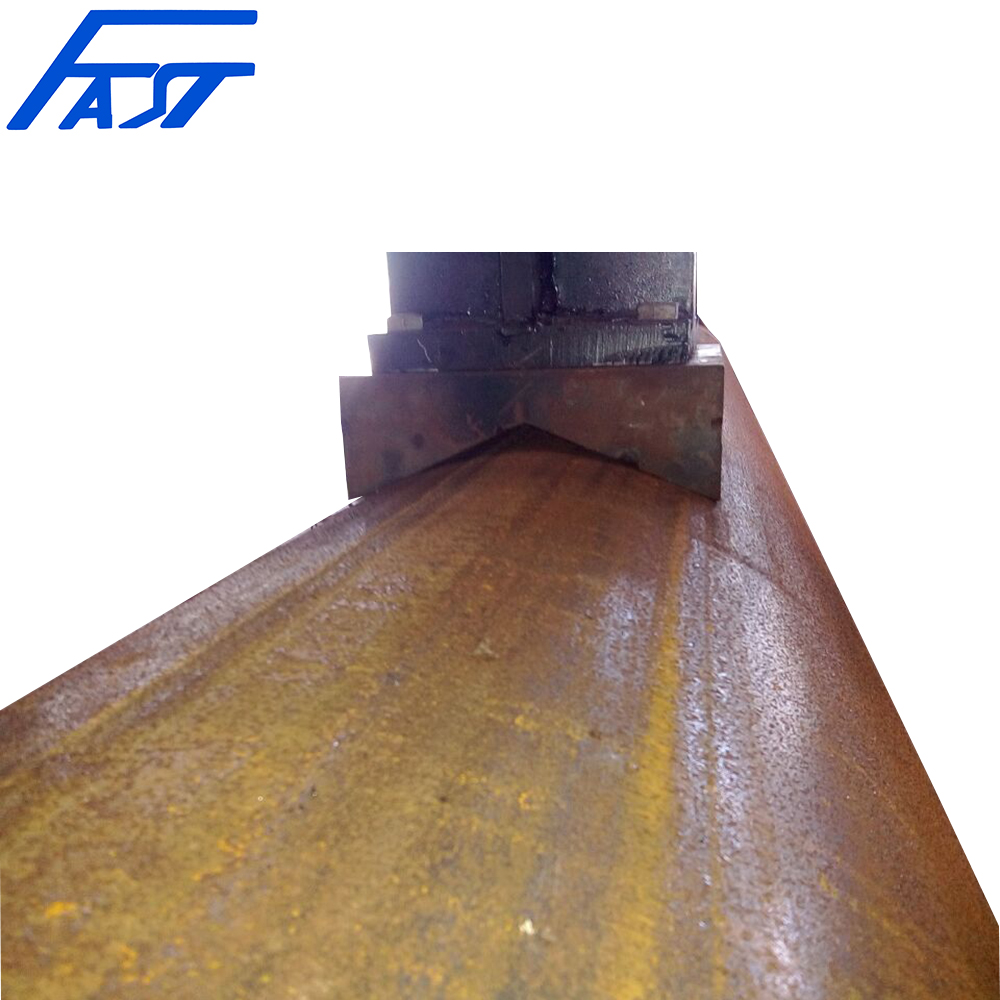

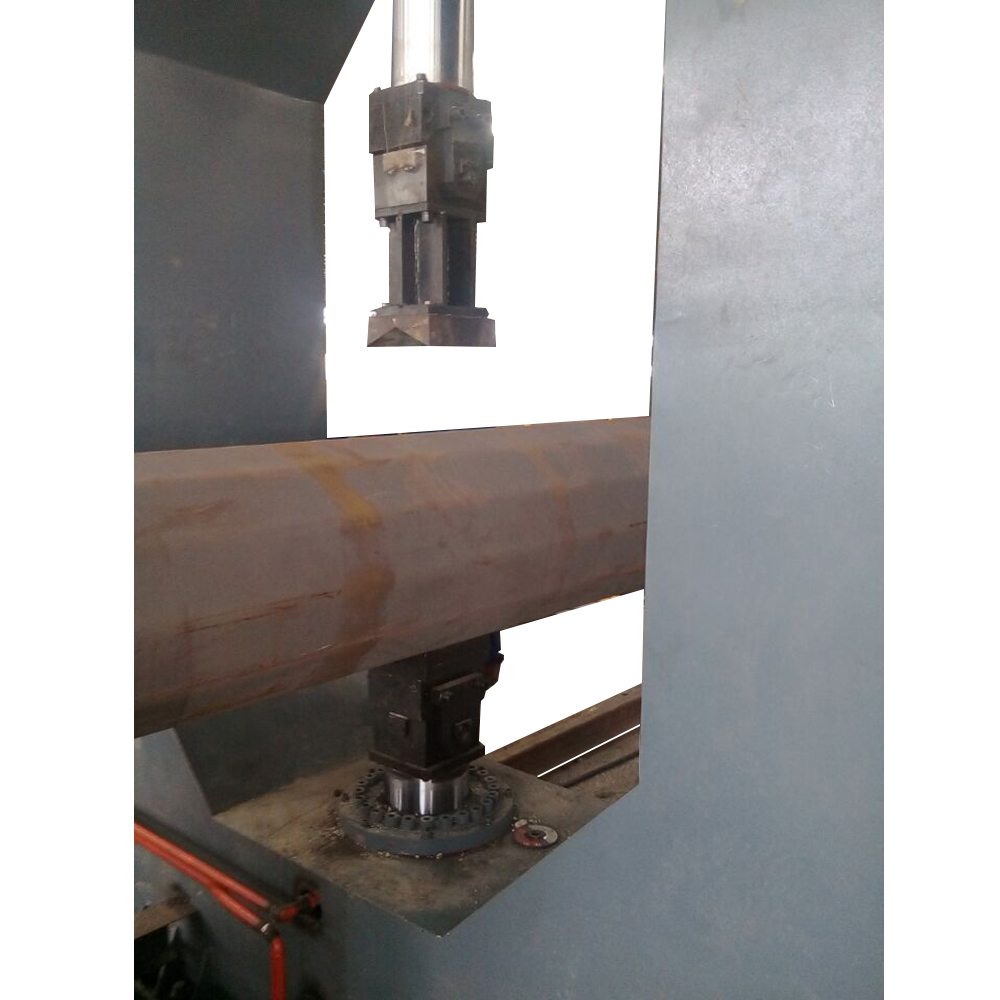

■ This machine has a lower main oil cylinder installed on the top. Both side installs a clamping cylinder. The clamping oil cylinder can move up and down under the oil cylinder to drive, cooperating with extended compressive bar for Φ200mm-Φ1500mm steel pipe joint operations.

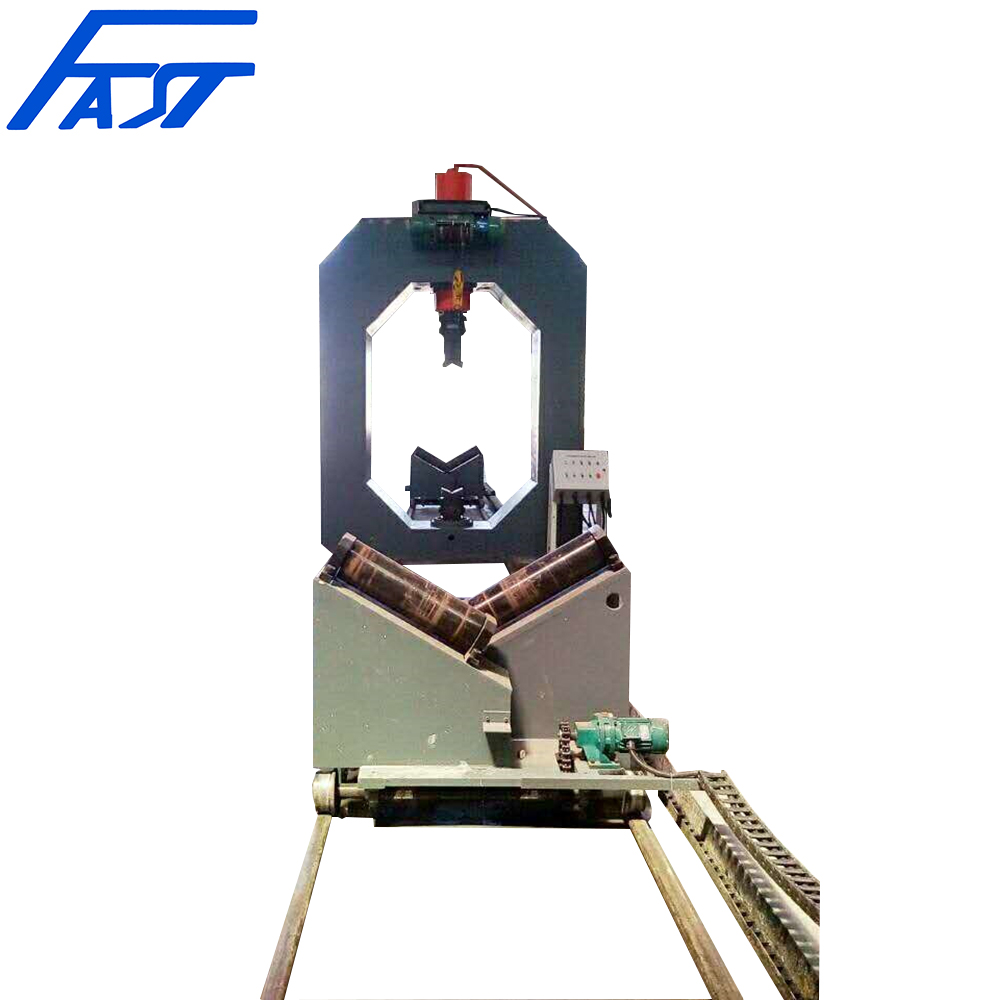

■ In the lower part of the main engine, there is a V-shape table.
■It reduces the labor of the workers by driving the roller with electric drive.
■ This machine can also be matched with back and forth bracket for the straightening of the steel tube, and a dual-purpose machine.
TECHNICAL DATA
Model |
XH150 |
Pressure of Upper Cylinder (kN) |
1000/2500 (Used for alignment) |
Stroke of Upper Cylinder (mm) |
500 |
Pressure of Side Cylinder (kN) |
250 |
Stroke of Side Sylinder (mm) |
450 |
Scope of Steelpipe (mm) |
Φ500~Φ1500 |
Up & Down Position of Side Cylinder |
Auto adjustment |
Adjustable Stroke (mm) |
600 |
Adjustable Way of Steelpipe (mm) |
Manual or Mechanical |
Total Power of Motor (kW) |
11/18.5 |
Overall dimensions L×W×H (m) |
28×6×6 |
★ All of these models can be customized according to customer requirements.
FAQ
· Are you a Manufacturer or a Trading company?
Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.
Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc
· Do you have stock product ready to delivery?
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed,when to delivery?
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services?
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality?
Each machine must be carried out quality examination and test when shipping and delivery goods.
