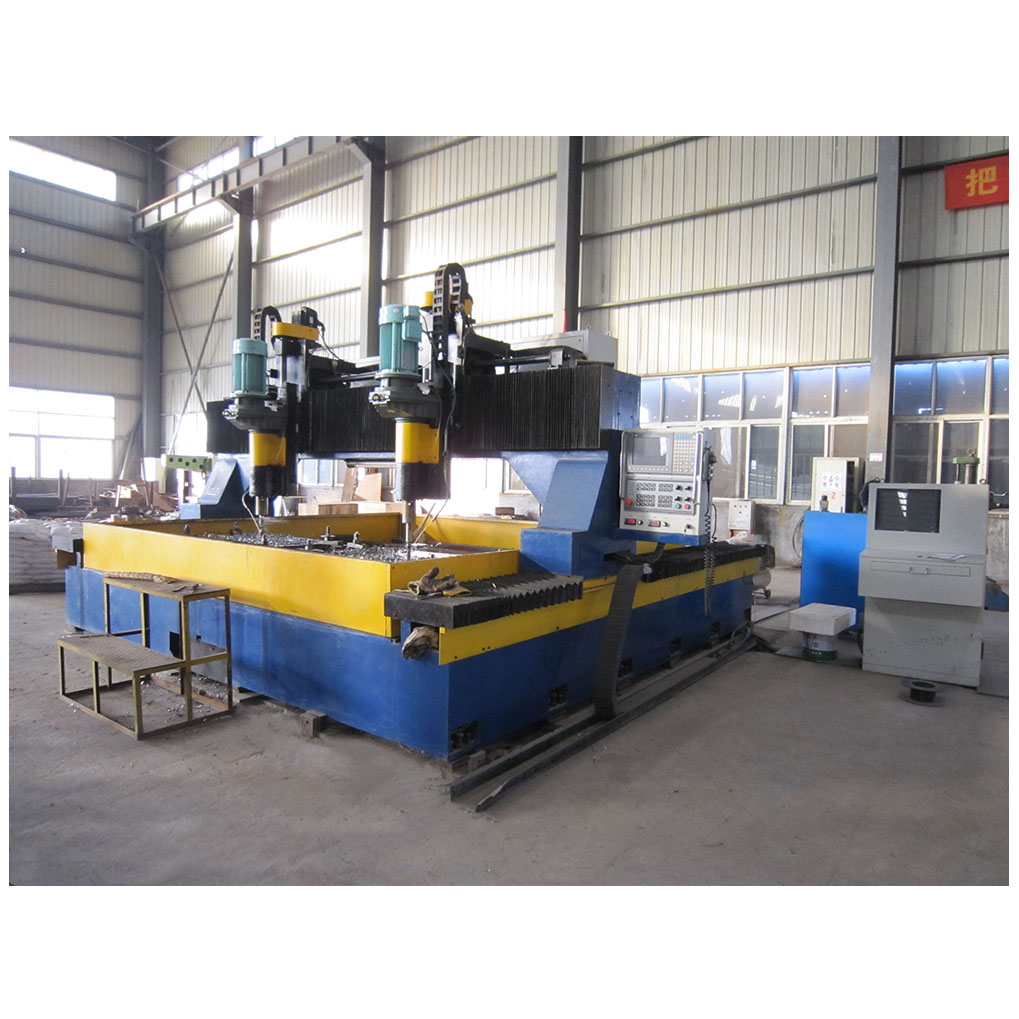

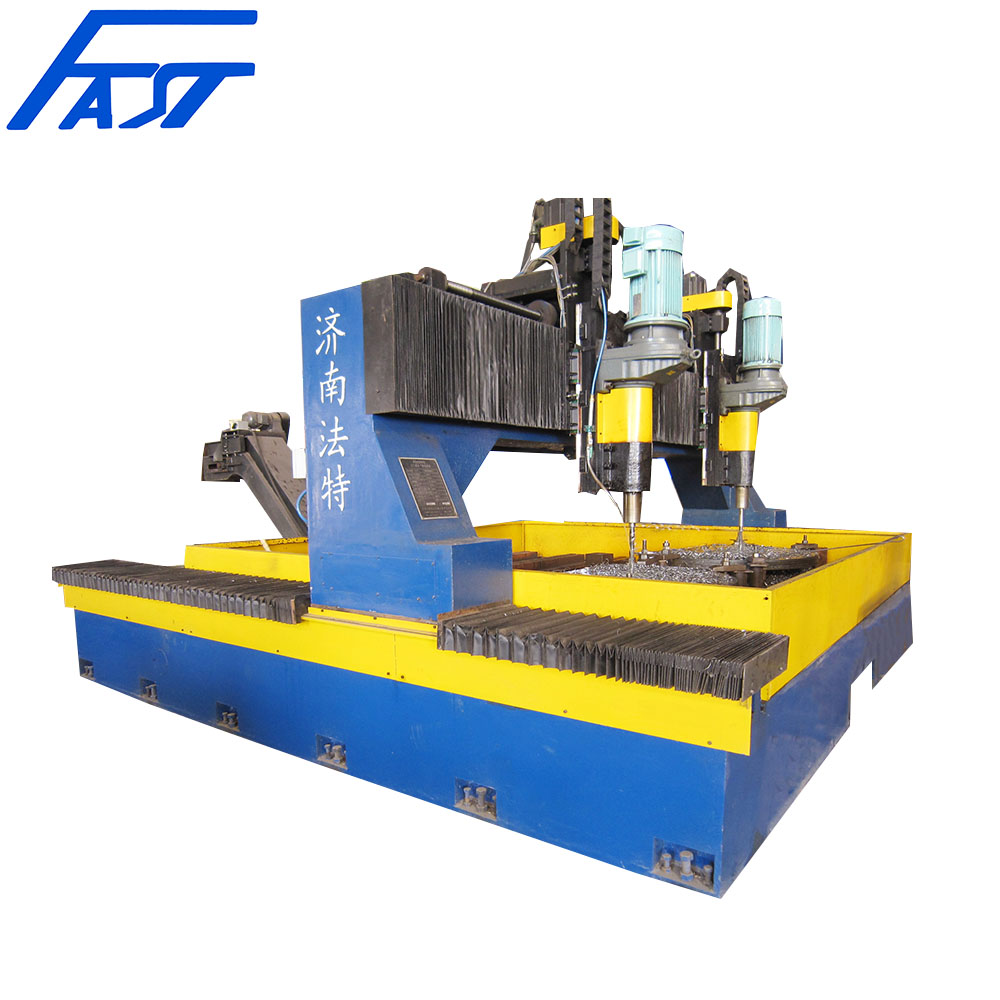

PZ3030 CNC Tubesheet Drilling Machine
APPLICATION

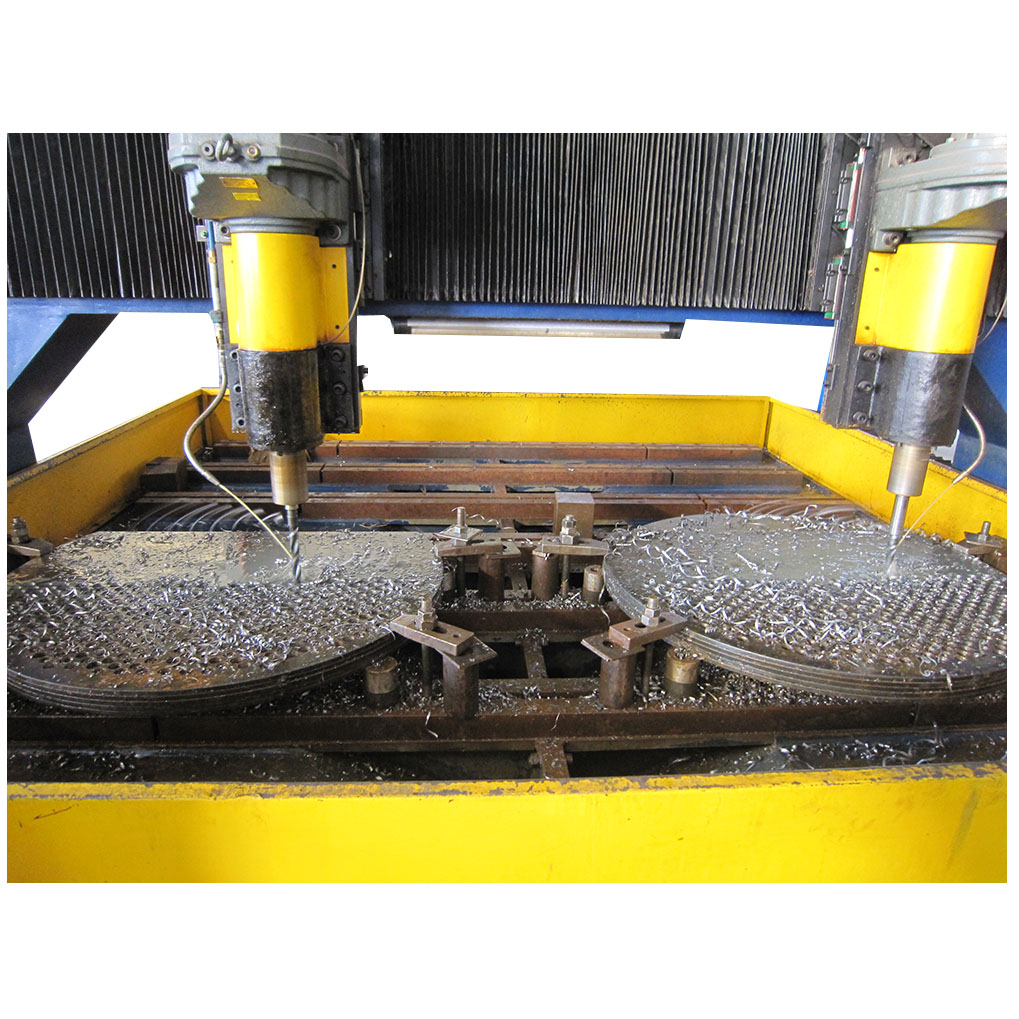

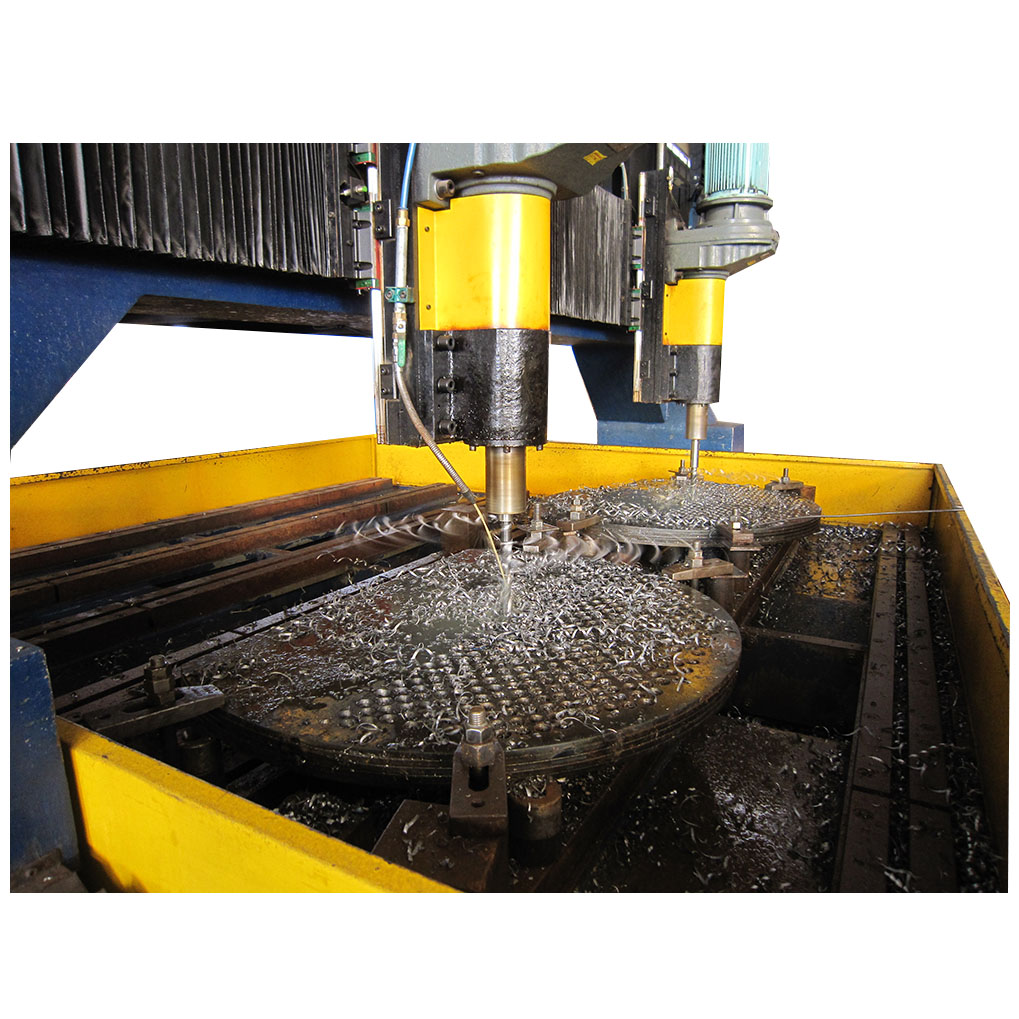

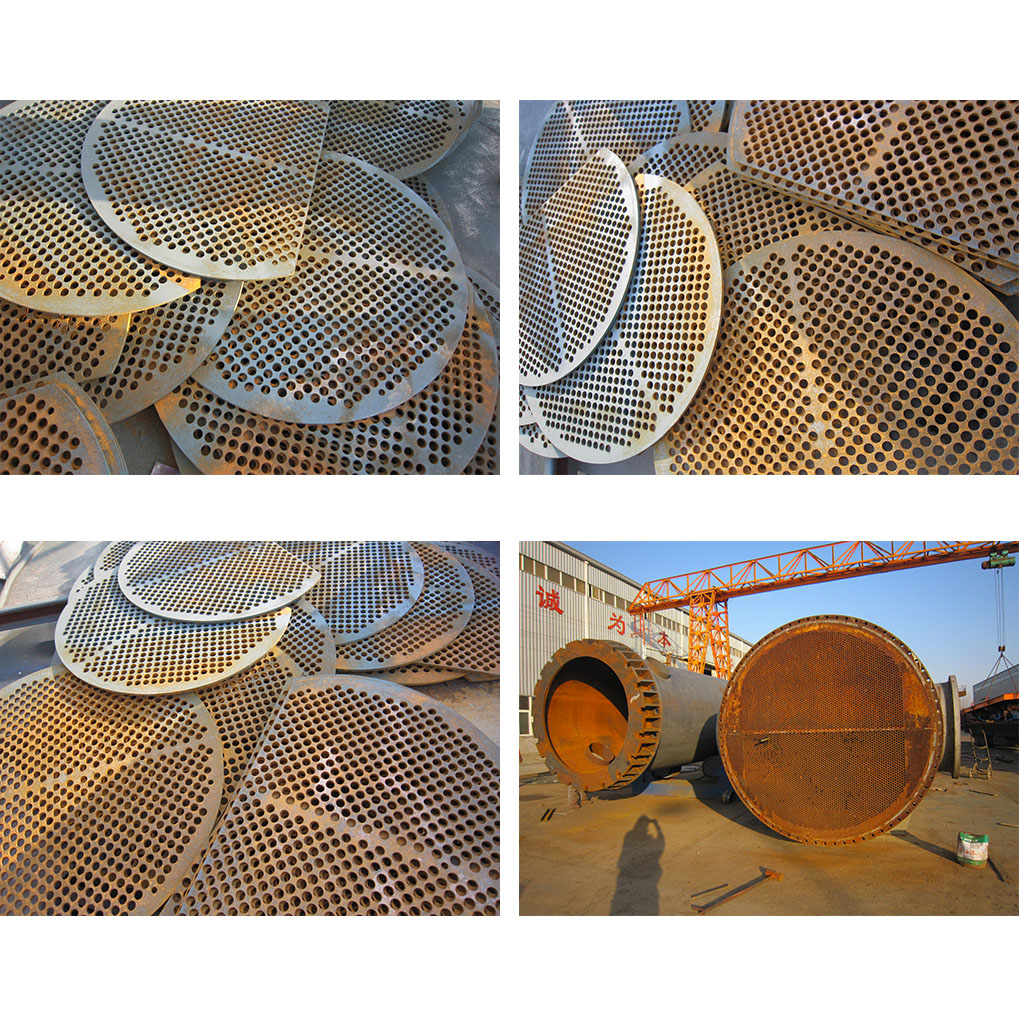

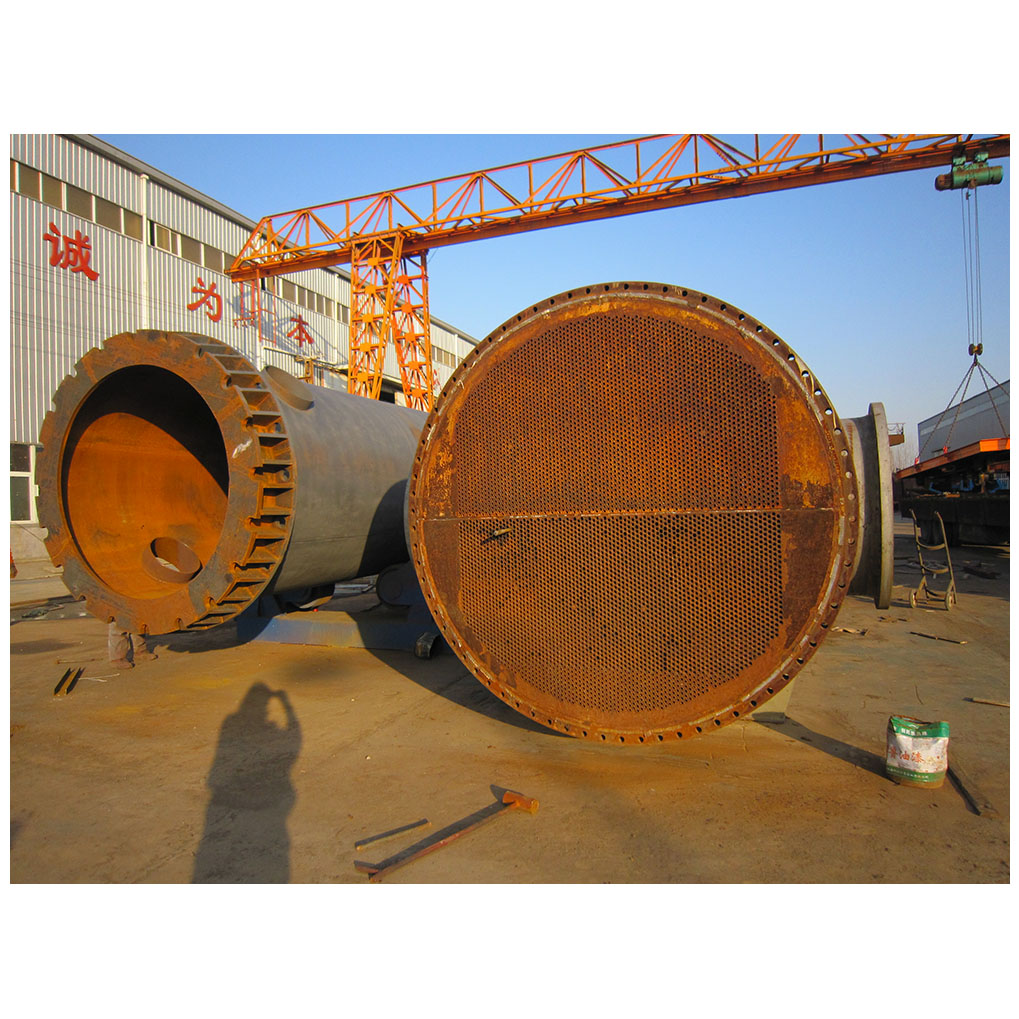

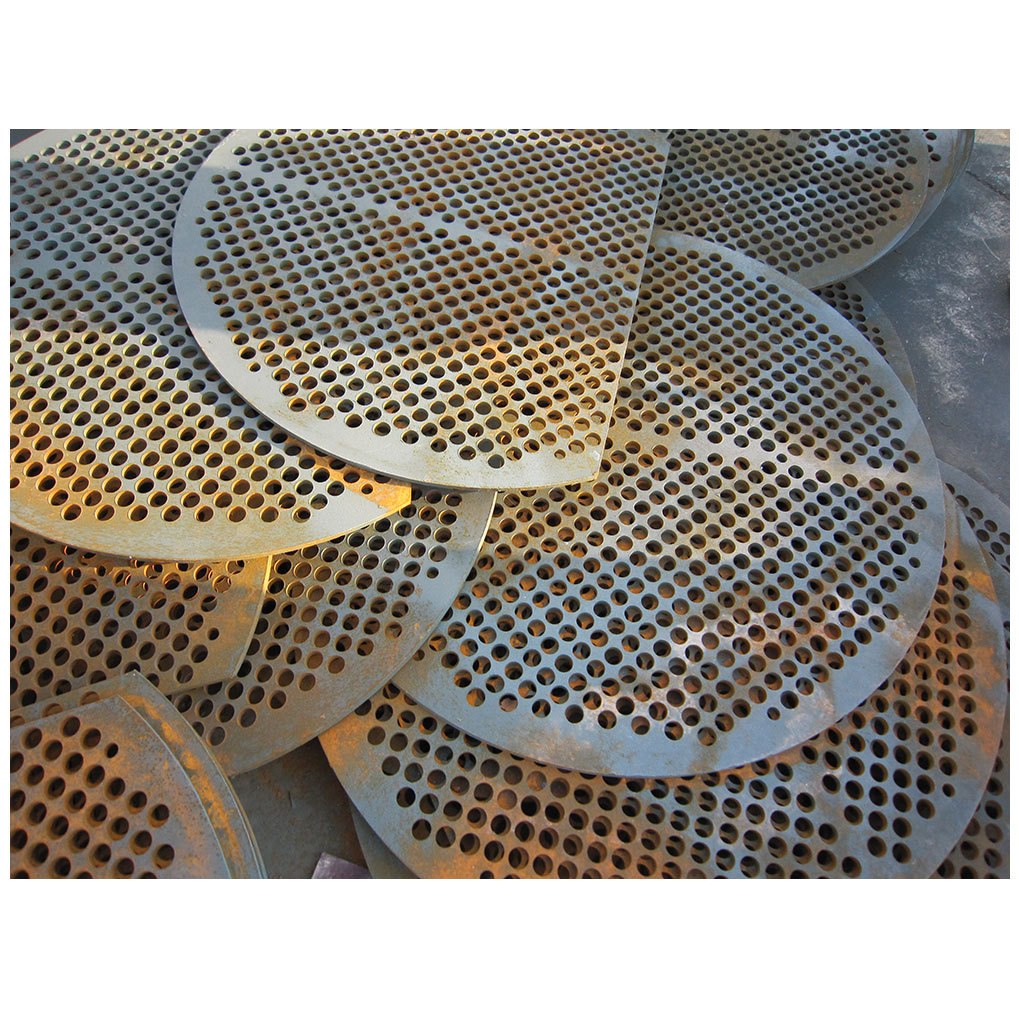

This machine is mainly used for drilling plates, flanges, discs, rings. Drilling through hole and blind hole can be realized on single materials and composite materials.It is also used for joint plates in building, bridge, iron tower, etc.
COMPOSITION
Worktable |
Traveling gantry |
Drilling power head |
Automatic chip removal |
Circulating cooling unit |
Lubrication system |
Hydraulic system |
Pneumatic system |
TECHNICAL DATA
Model |
PZ1616 (Option PZ1610) |
PZ2020 (Option PZ2016) |
PZ3030 |
PZ4040 (Option PZ4016) |
PZ5050 |
||
Max. Size of Workpiece (mm) |
Max. Processing Range L*W (mm) |
1600*1600(Option 1600*1000) |
2000*2000(Option 2000*1600) |
3000*3000 |
4000*4000(Option 4000*1600) |
5000*5000 |
|
Max. DrillingDiameter (mm) |
Φ 50 |
||||||
Max. Drilling Depth (mm) |
150 |
200
|
250
|
||||
Drilling Spindle |
Type |
Servo controlling power head |
|||||
Quantity |
1 |
1 (option 2) |
2 |
||||
Spindle Rotation Speed |
30-700 |
||||||
Spindle Power |
7.5 |
7.5 ( Option 7.5*2) |
|||||
Morse Taper |
#4 |
||||||
X Axis |
Max. Stroke |
1600 |
2000 |
3000 |
4000 |
5000 |
|
Speed |
0-6000 |
||||||
Y Axis |
Max. Stroke |
1600 |
2000 |
3000 |
4000 |
5000 |
|
Speed |
0-6000 |
||||||
Z Axis |
Max. Stroke |
350 |
400 |
400 |
500 |
500 |
|
Speed |
0-4000 |
||||||
Positioning accuracy |
≤ 0.04
|
||||||
Re-positioning accuracy |
≤ 0.03
|
||||||
Net Weight (Ton) |
4.6 |
7 |
15 |
28 |
42 |
||
Overall Dimension L*W*H (mm) |
2850*2640*2500 |
3450*3120*2550 |
4800*4400*2650 |
5900*5400*2850 |
7000*6600*2850 |
★ All of these models can be customized according to customer requirements.
FAQ
· Are you a Manufacturer or a Trading company?
Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.
Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc
· Do you have stock product ready to delivery?
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed,when to delivery?
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services?
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality?
Each machine must be carried out quality examination and test when shipping and delivery goods.
