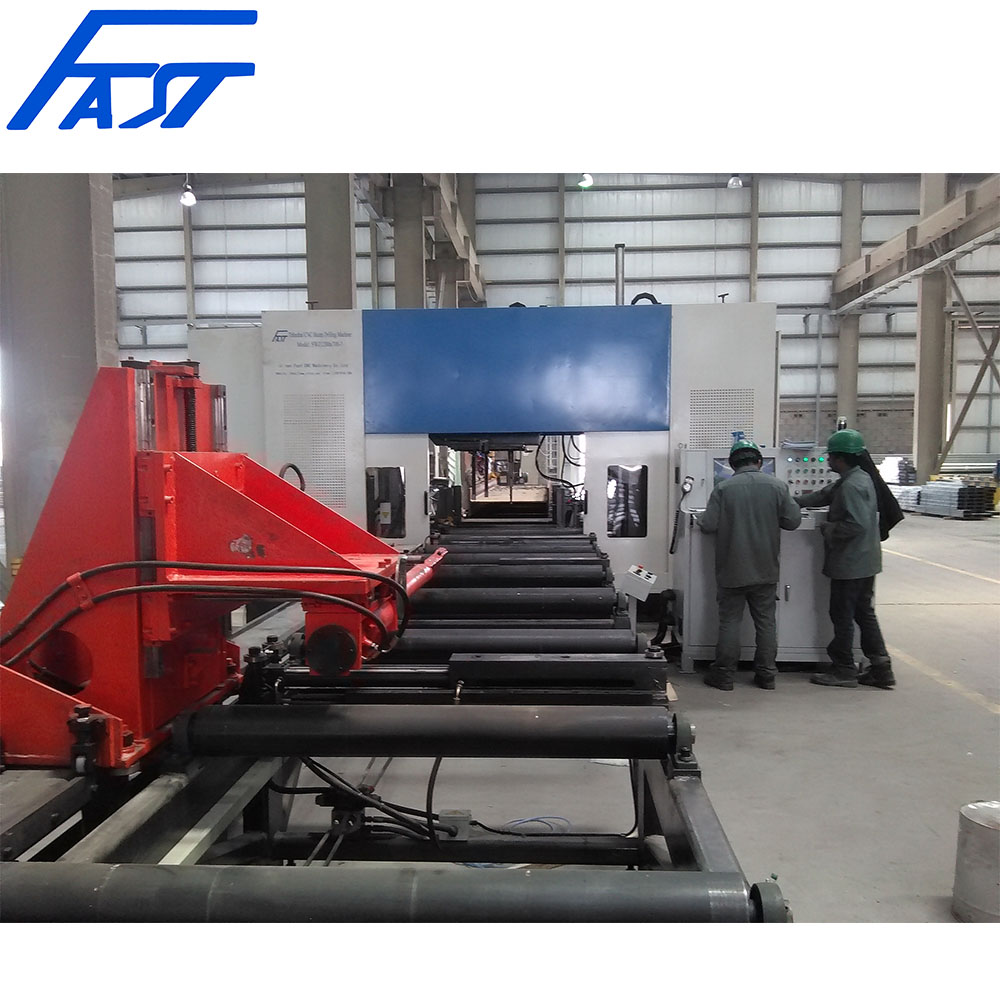

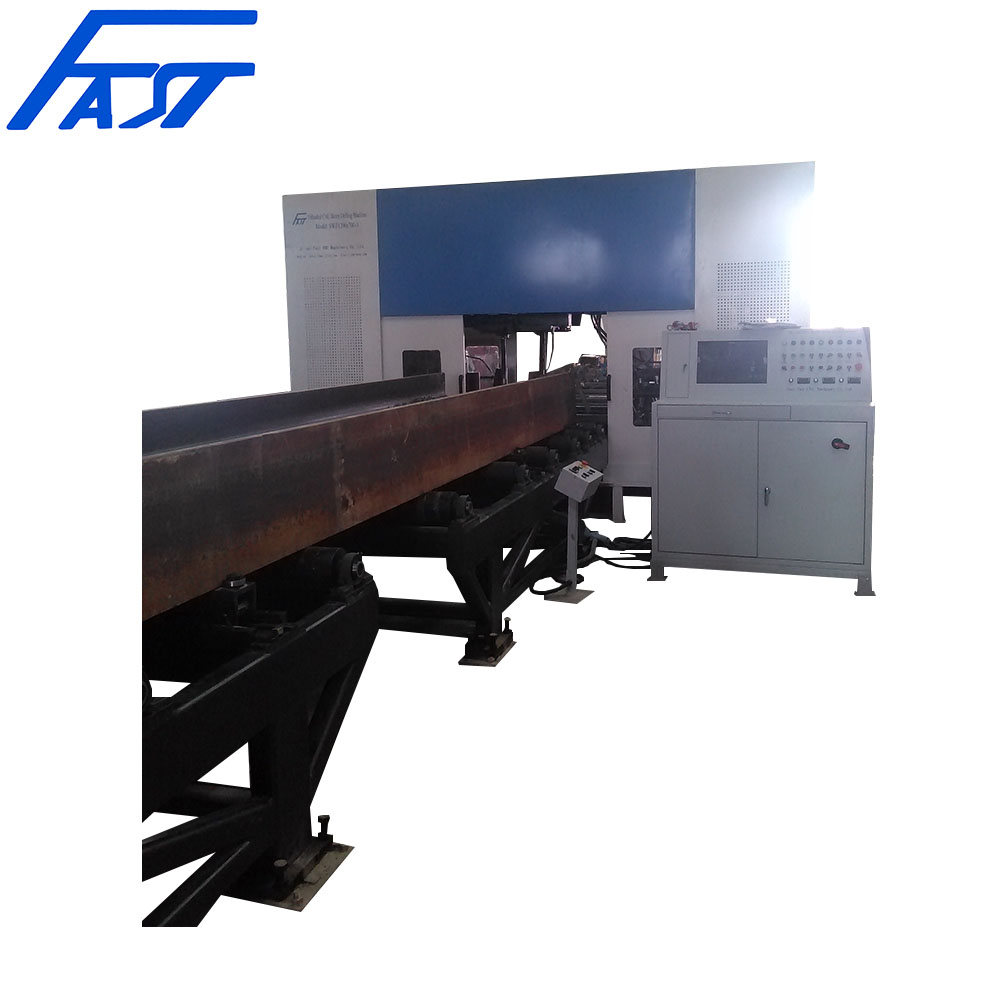

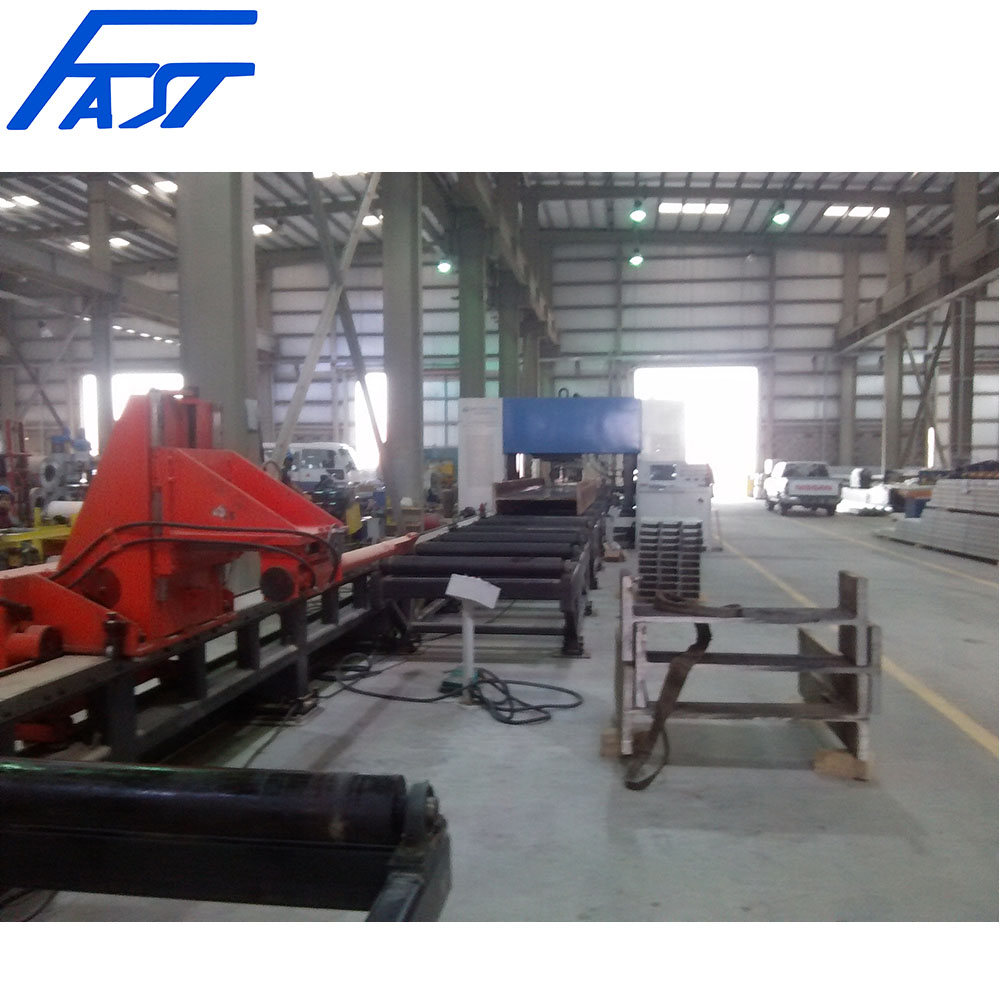

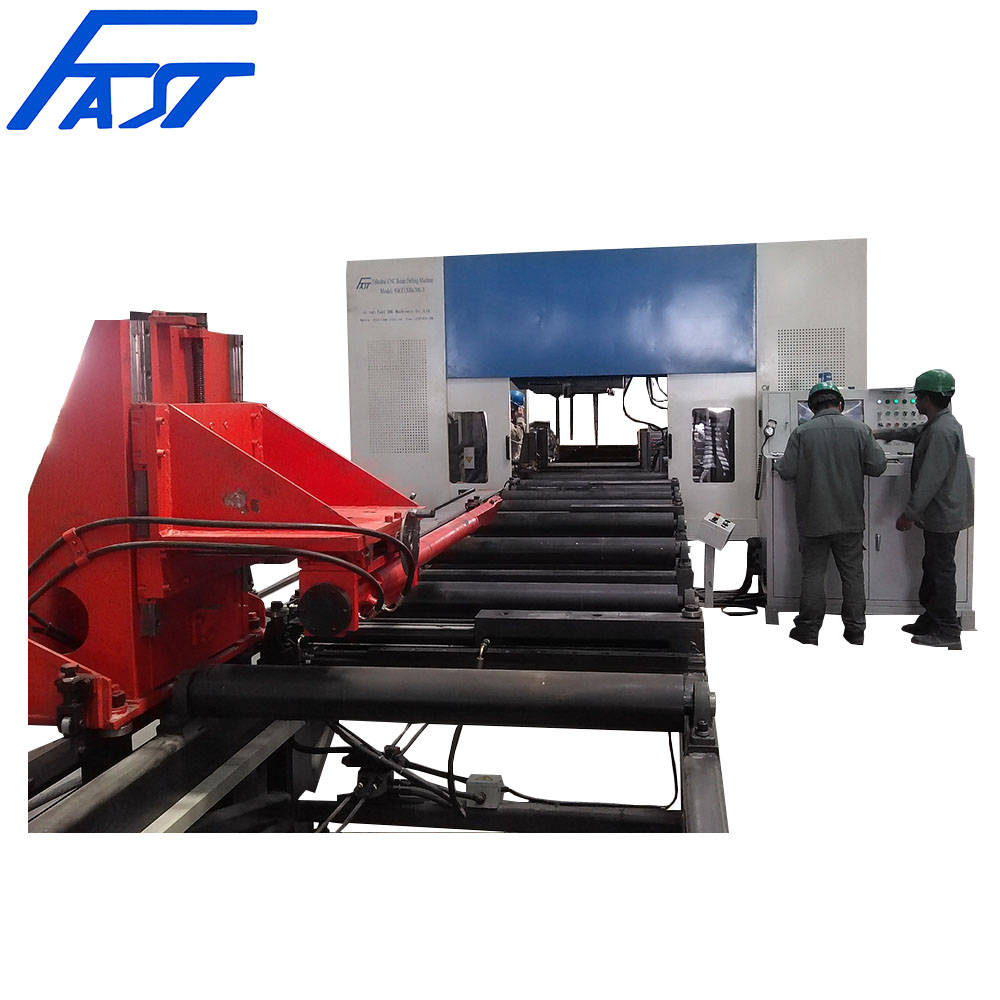

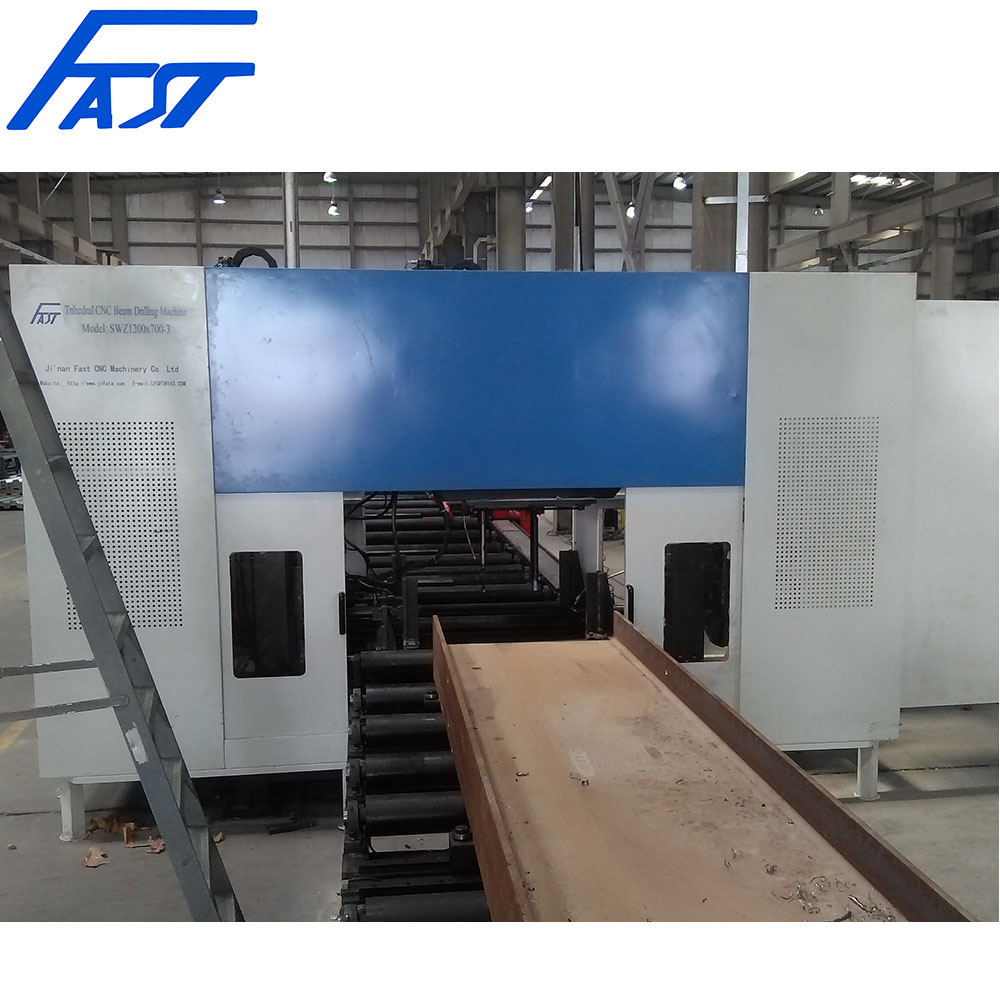

SWZ1250X600-3 CNC H Beam Drilling Machine(Trolley Feeding)
APPLICABLE INDUSTRY

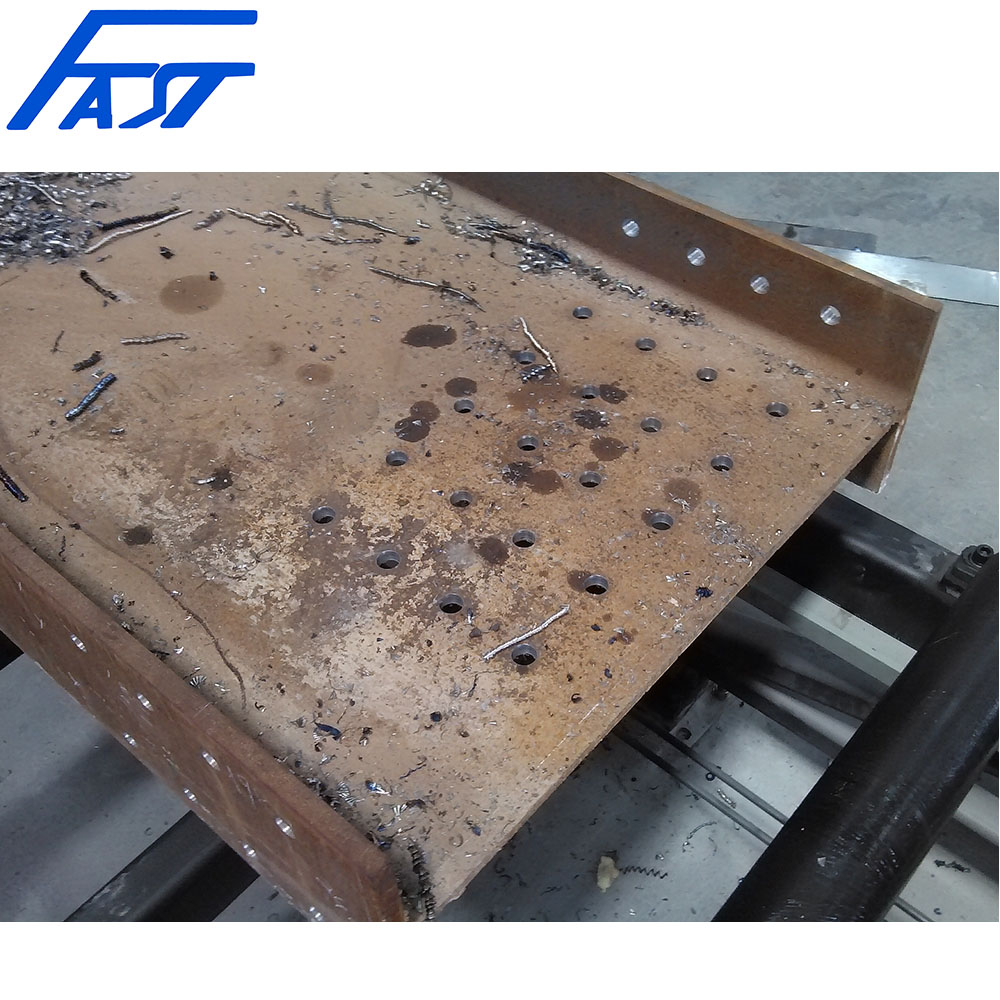

This machine is used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
FEATURES
● There are 3 independent drilling units, one vertical and two horizontal (right and left).
● 3 drilling heads can drill holes simultaneously. Also, the drilling head is self-controlled stroke.
● As long as inputting dimensions of workpiece, the processing program can be memorized, selected, displayed and transmitted according to wokpiece at will.

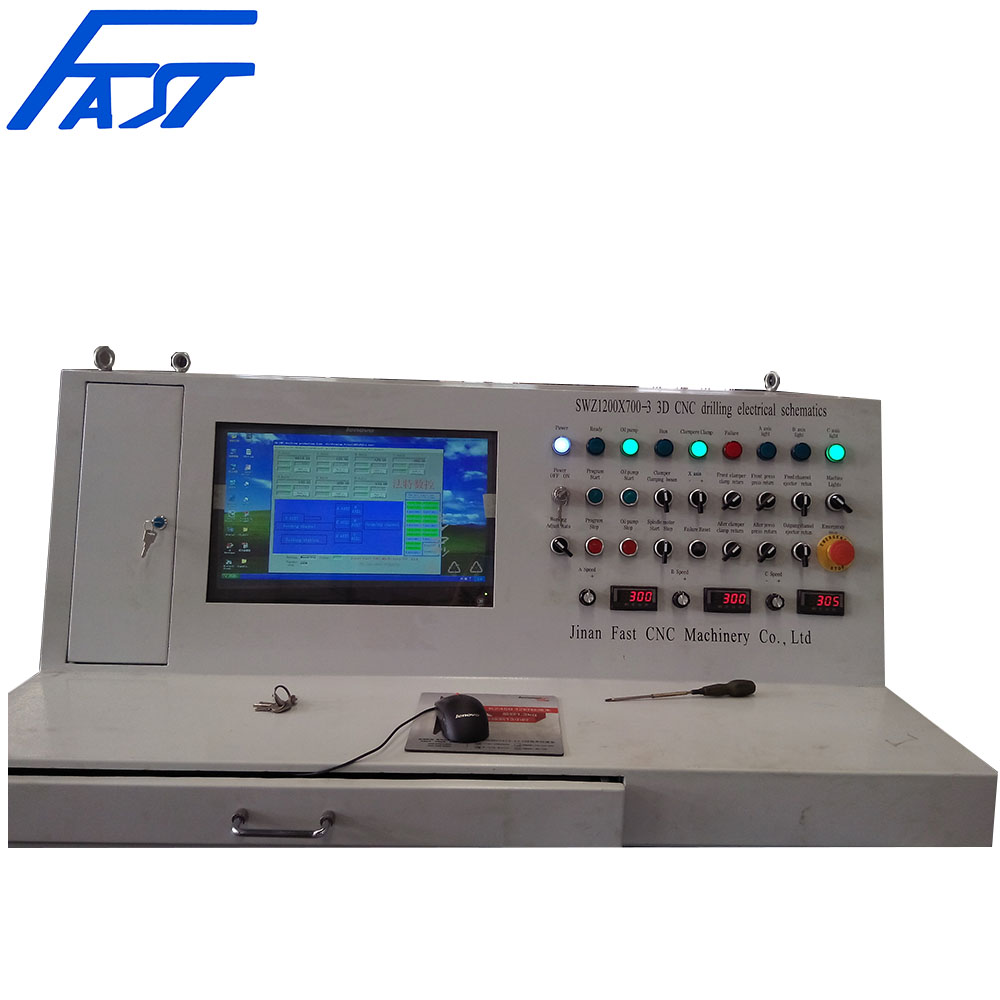

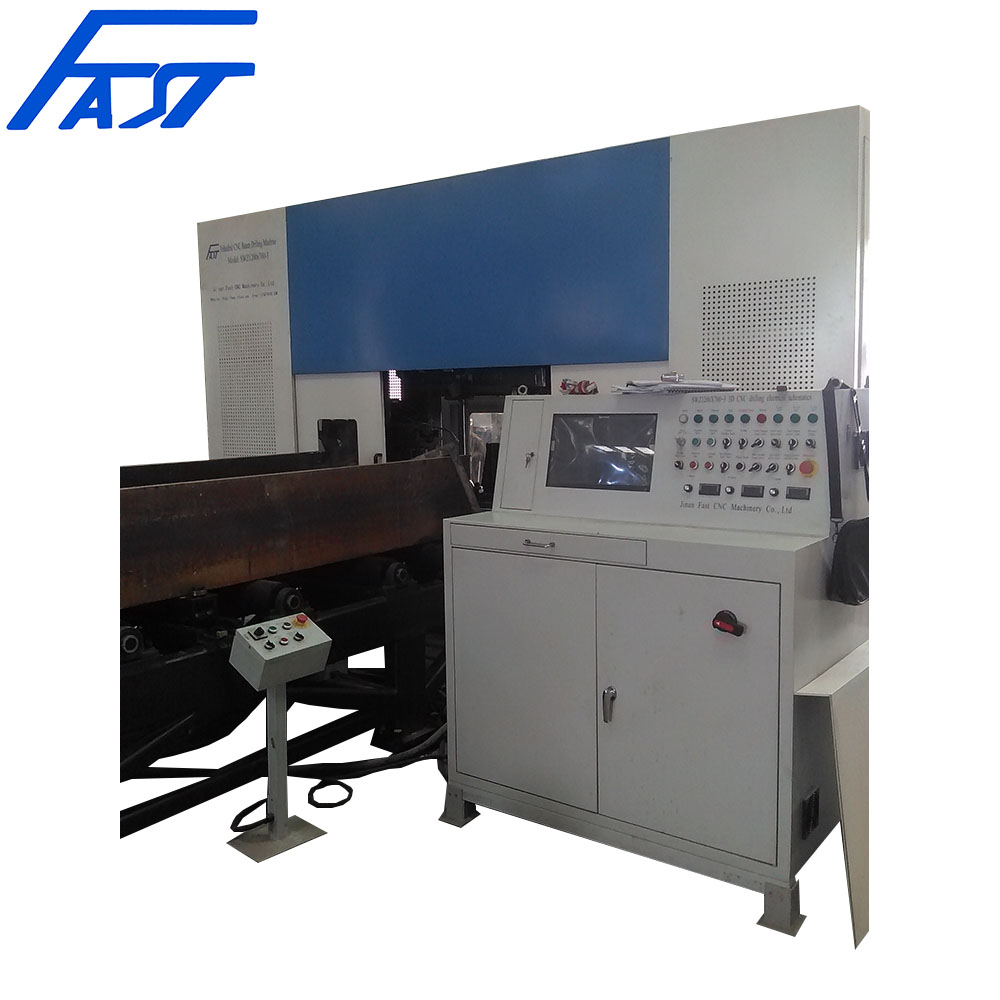

● CNC and PLC systems, CRT displaying. Programming Microsoft is based on Windows. Programming Microsoft can be in any computer to run programing off-site. It directly by copy/internet transfer to equipment.
● The feeding of the workpiec is driven by rollers, which are controlled by hydraulic and mechanical systems. The measuring wheel measures the actual feeding distance of workpiece and feeds back the result to control system to guarantee the precision the longitude position of holes.
● Drilling heads are equipped with main shaft reducer.
TECHNICAL DATA
ITEMS |
UNIT |
SPECIFICATIONS |
||
H Beam: Max width * Max Height |
mm |
1250×600 |
||
H Beam: Min width * Min Height |
mm |
200×100 |
||
Automatic Feeding Length |
mm |
12000 |
||
Max Web Thickness |
mm |
60 |
||
Max Weight |
kg |
15000 |
||
Quantity of Drilling Spindle |
PCS |
3 |
||
Power of Drilling Spindle |
KW |
4 |
||
Rotation Range of Each Spindle |
r/min |
30~700 |
||
Feeding Speed |
mm/min |
20~200 |
||
Feeding Stroke of Upper Spindle |
mm |
400 |
||
Feeding Stroke of Lfet Spindle(Reference) |
mm |
250 |
||
Feeding Stroke of Lfet Spindle |
mm |
1100 |
||
Web Drilling Diameter Range |
mm |
Ф6-Ф40(Material Q235), Ф6-Ф32(Material D36) |
||
Flange Drilling Diamter Range |
Mm |
|
||
Center Line Moving Range |
Upper Spindle Transverse(left and right) movement range |
mm |
30~1200 |
|
|
Left and Right Spindle Vertical (up and down) movement range |
mm |
30~560 |
|
Non-reference Side Level Range of Movement |
mm |
1100 |
||
Clamp Type |
Morse |
4# |
||
Hole Tolerance Within the Hole Group |
mm |
±0.5 |
||
Hole Tolerance Between the Hole Group |
mm |
±0.75 |
||
Pressure of Compressed Air |
MPa |
0.4-0.6 |
||
Cooling |
Air Cooling |
|||
Clamp Up & Down (Vertical direction) Stroke |
mm |
300(50-310) |
||
Clamp Left & Right (Horizontal direction) Stroke |
mm |
500(50-550) |
||
Clamp Movement ( Forward direction) Stroke |
mm |
12000 |
||
Servo Motor Power of Power Rack & Pinion Drive |
KW |
Appro.5 |
||
Outline Dimension of feeding Channel(L*W*H) |
mm |
15000×1750×1830 |
||
Length of Discharging Channel |
mm |
12000 |
||
Total Power |
KW |
Appro. 30 |
||
L×W×H Outline Dimension of the line |
mm |
29000×4520×3120 |
||
CAD Automatically change to controlling system |
FAQ
· Are you a Manufacturer or a Trading company?
Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.
Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc
· Do you have stock product ready to delivery?
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed,when to delivery?
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services?
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality?
Each machine must be carried out quality examination and test when shipping and delivery goods.
