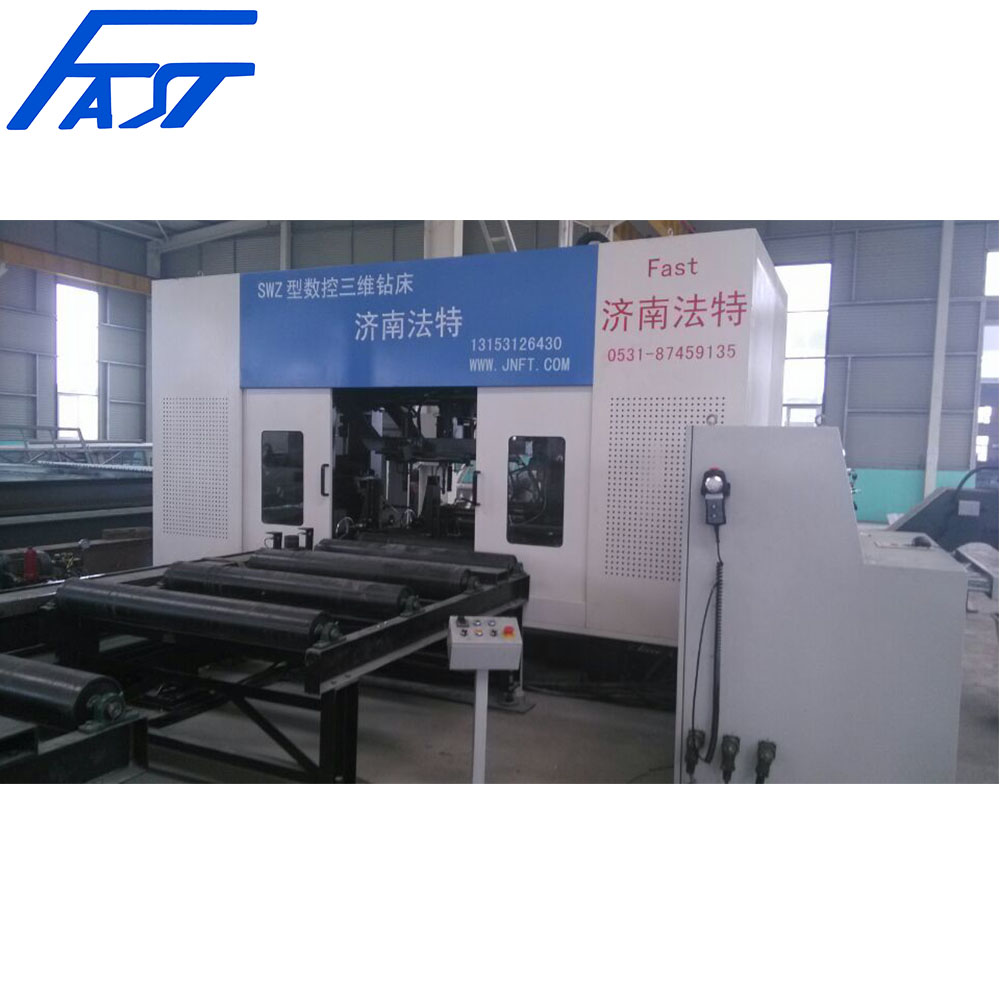

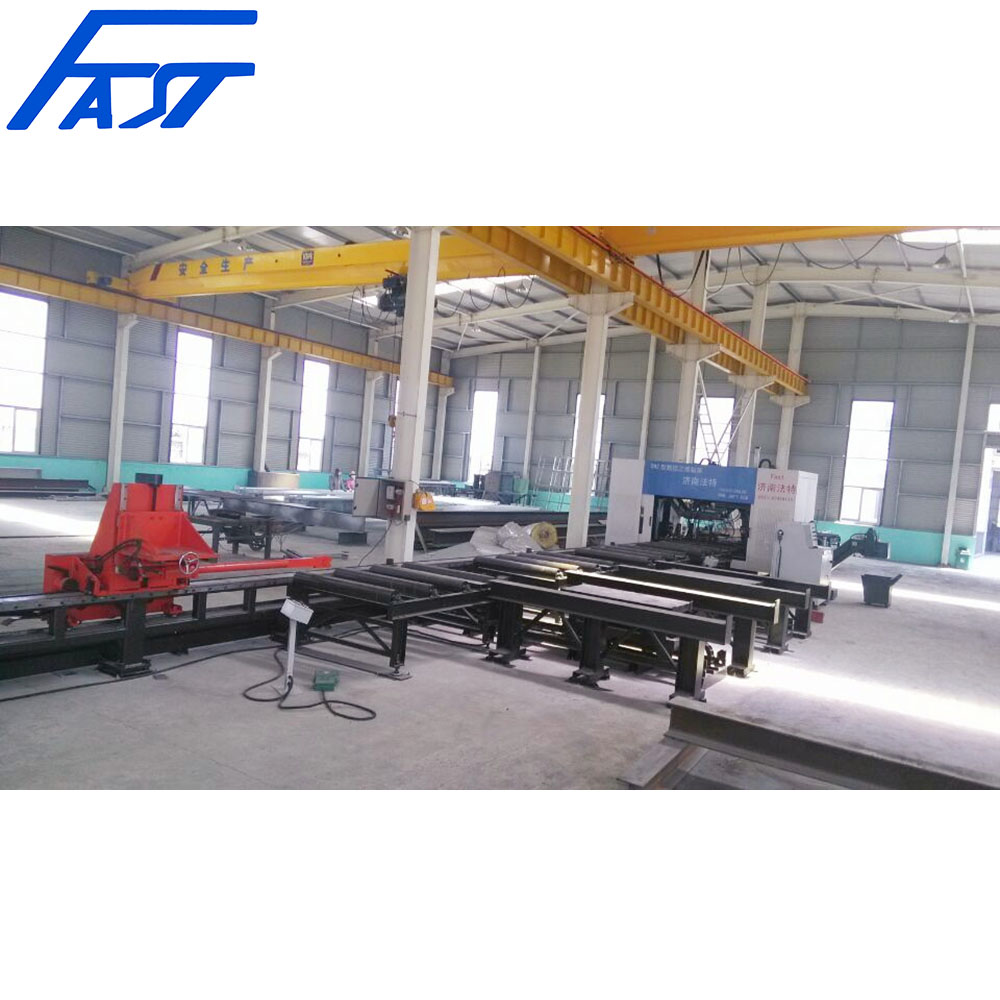

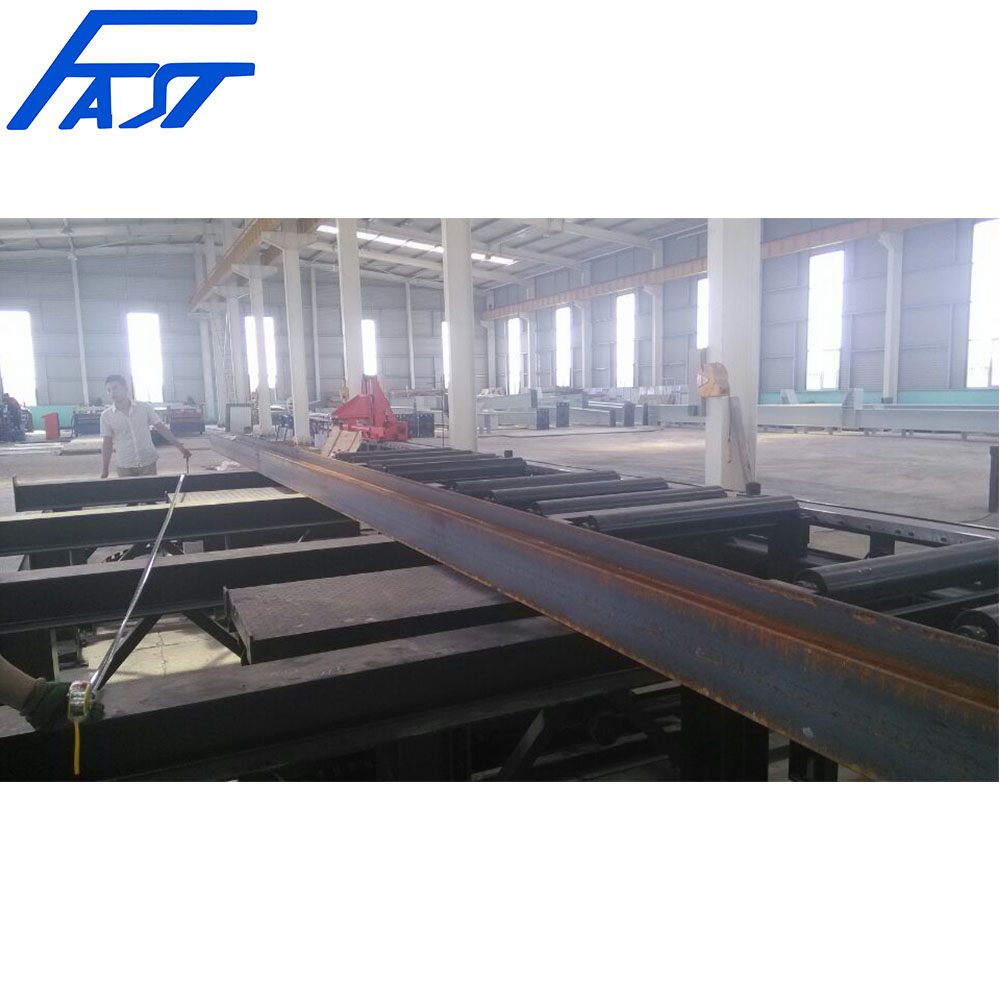

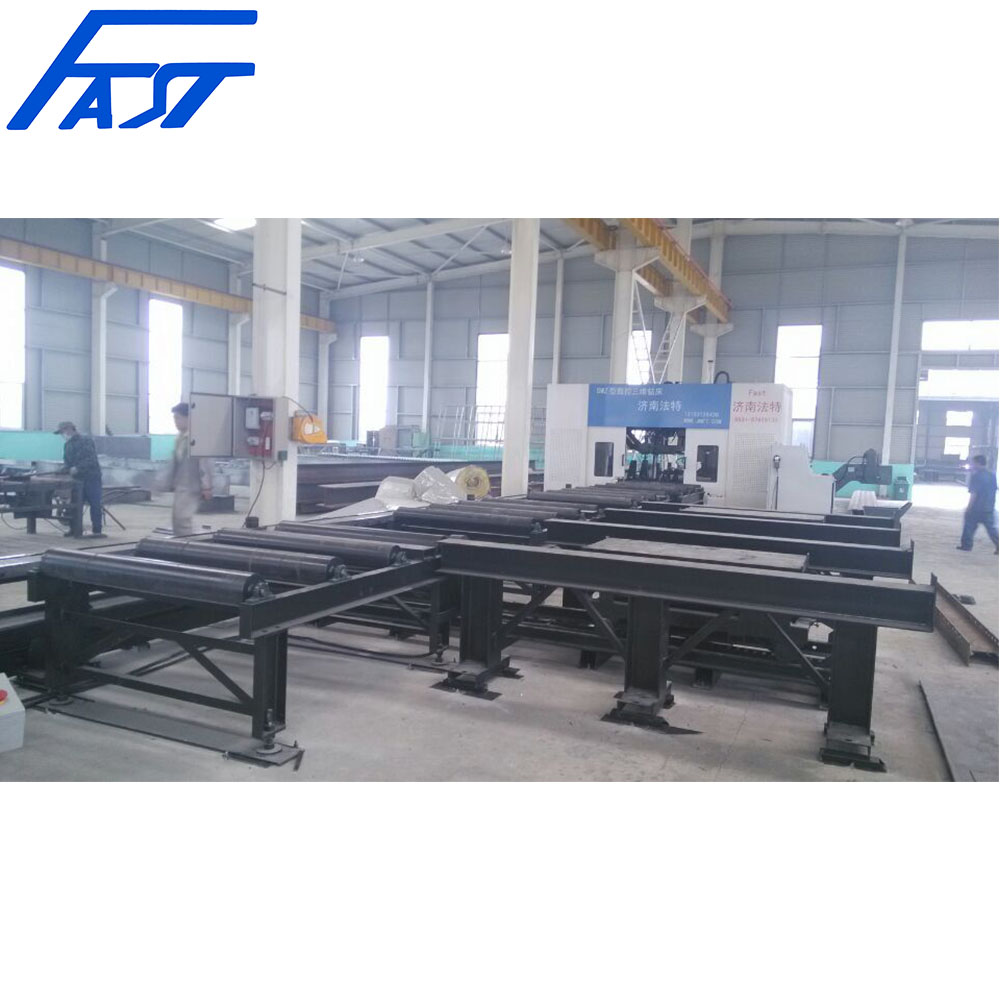

SWZ1000X500 CNC H Beam Drilling Machine
APPLICABLE INDUSTRY
This machine is used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
ADVANTAGES
● There are 3 independent drilling units, one vertical and two horizontal (right and left).
● 3 drilling heads can drill holes simultaneously. Also, the drilling head is self-controlled stroke.
● As long as inputting dimensions of workpiece, the processing program can be memorized, selected, displayed and transmitted according to wokpiece at will.
● CNC and PLC systems, CRT displaying. Programming Microsoft is based on Windows. Programming Microsoft can be in any computer to run programing off-site. It directly by copy/internet transfer to equipment.
● The feeding of the workpiec is driven by rollers, which are controlled by hydraulic and mechanical systems. The measuring wheel measures the actual feeding distance of workpiece and feeds back the result to control system to guarantee the precision the longitude position of holes.
● Drilling heads are equipped with main shaft reducer.
ITEMS |
UNIT |
SPECIFICATIONS |
||
H Beam: Max width * Max Height |
mm |
1000×500 |
||
H Beam: Min width * Min Height |
mm |
150×100 |
||
Automatic Feeding Length |
mm |
1000~12000 |
||
Max Web Thickness |
mm |
≤40 |
||
Max Weight |
kg |
15000 |
||
Quantity of Drilling Spindle |
PCS |
3 |
||
Power of Drilling Spindle |
r/min |
180~750 |
||
Rotation Range of Each Spindle |
mm/min |
20~200 |
||
Feeding Speed |
mm |
220 |
||
Feeding Stroke of Upper Spindle |
mm |
220 |
||
Feeding Stroke of Lfet Spindle(Reference) |
mm |
φ40 |
||
Feeding Stroke of Lfet Spindle |
||||
Center Line Moving Range |
Upper Spindle Transverse(left and right) movement range |
mm |
40~1000 |
|
Left and Right Spindle Vertical (up and down) movement range |
mm |
30~500 |
||
Non-reference Side Level Range of Movement |
mm |
0-600 |
||
Clamp Type |
Morse |
4# |
||
Hole Tolerance Within the Hole Group |
mm |
±0.5 |
||
Hole Tolerance Between the Hole Group |
mm |
±0.75 |
||
Pressure of Compressed Air |
Mpa |
0.4-0.6 |
||
Cooling |
Air Cooling |
|||
Clamp Up & Down (Vertical direction) Stroke |
mm |
220 |
||
Clamp Left & Right (Horizontal direction) Stroke |
mm |
350 |
||
Clamp Movement ( Forward direction) Stroke |
mm |
13500 |
||
Servo Motor Power of Power Rack & Pinion Drive |
KW |
Appro. 4 |
||
Outline Dimension of feeding Channel(L*W*H) |
mm |
15000×1250×1630 |
||
Length of Discharging Channel |
mm |
12000 |
||
Total Power |
KW |
Appro. 30 |
||
L×W×H Outline Dimension of the line |
mm |
30000×6100×3050 |
||
CAD Automatically change to controlling system |
