High-speed CNC Drilling Machine for H-Beams SWZG400/700/1000/1250
APPLICABLE INDUSTRY

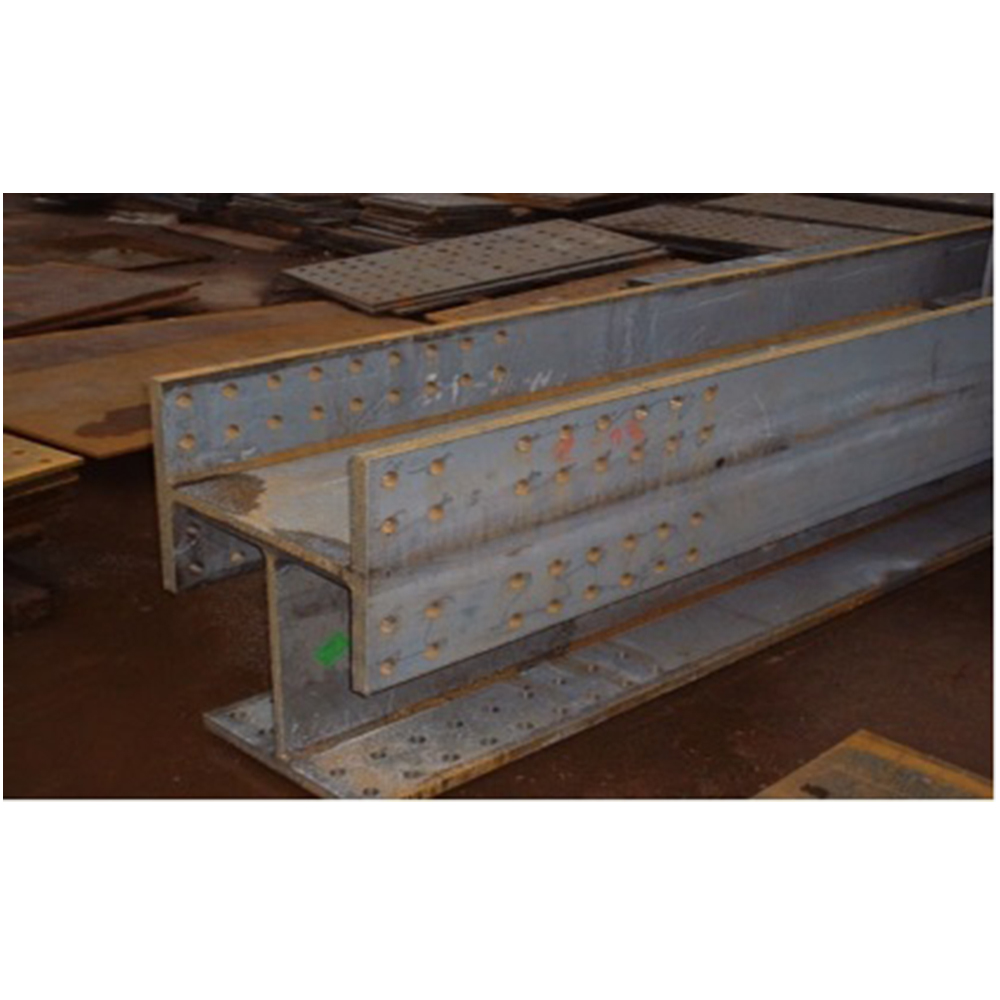

This machine is special equipment for the drilling processing of H beams, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.

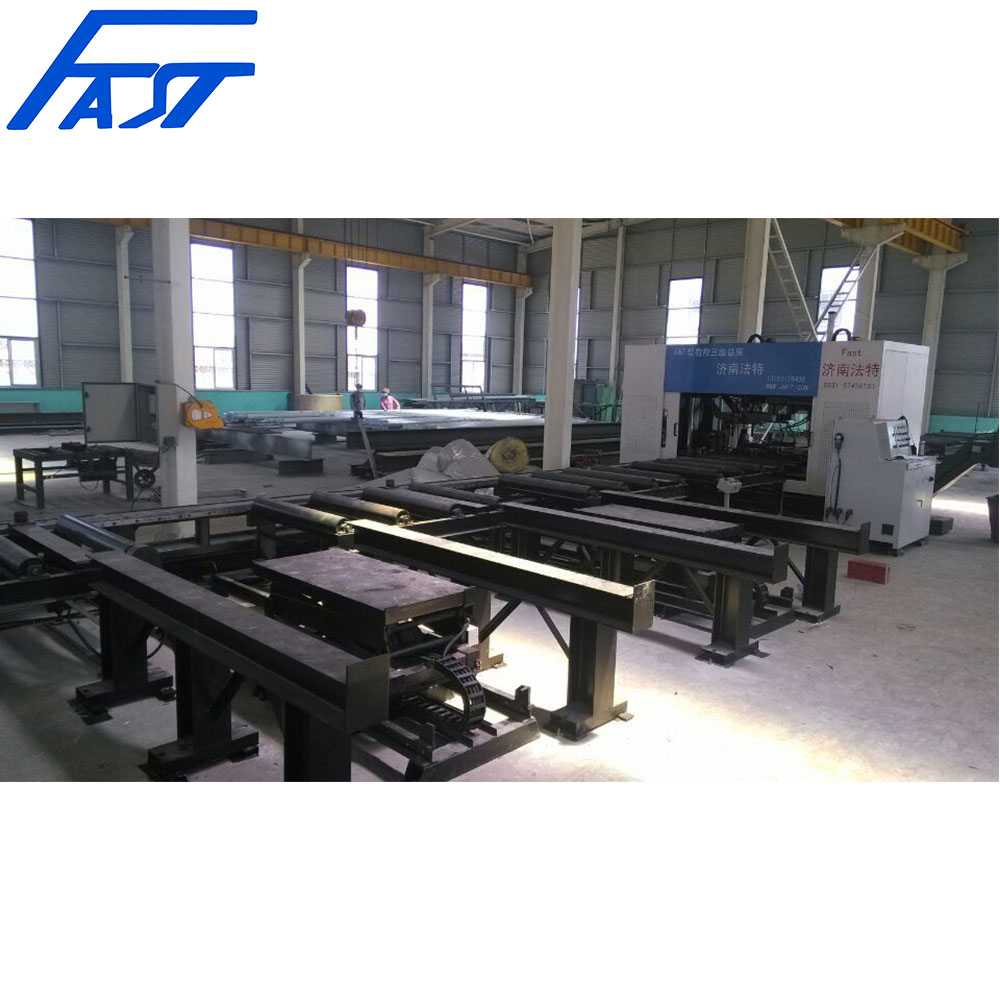

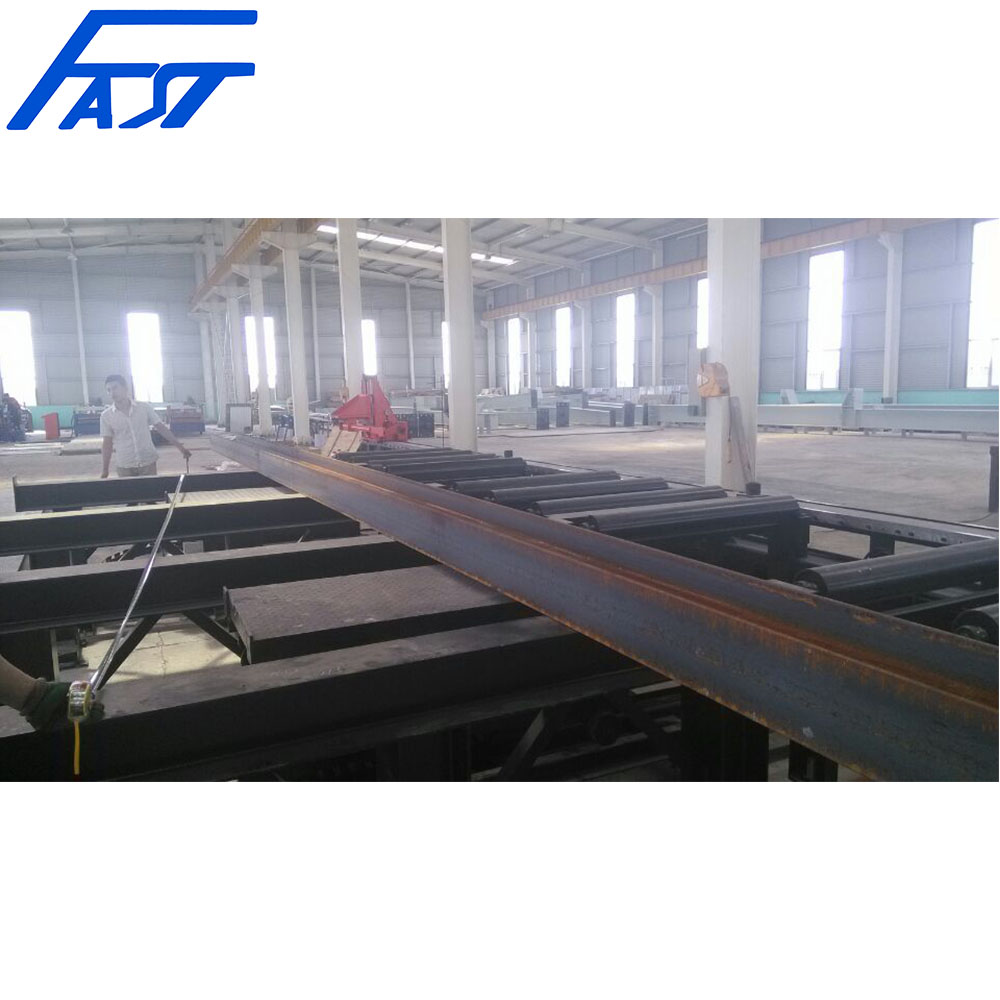

COMPOSITION
Workpiece lifting & handling trolley
Horizontal storage rack
CNC feeding trolley
CNC trolley running track
Loading side power raceway
Feeding side unpowered raceway

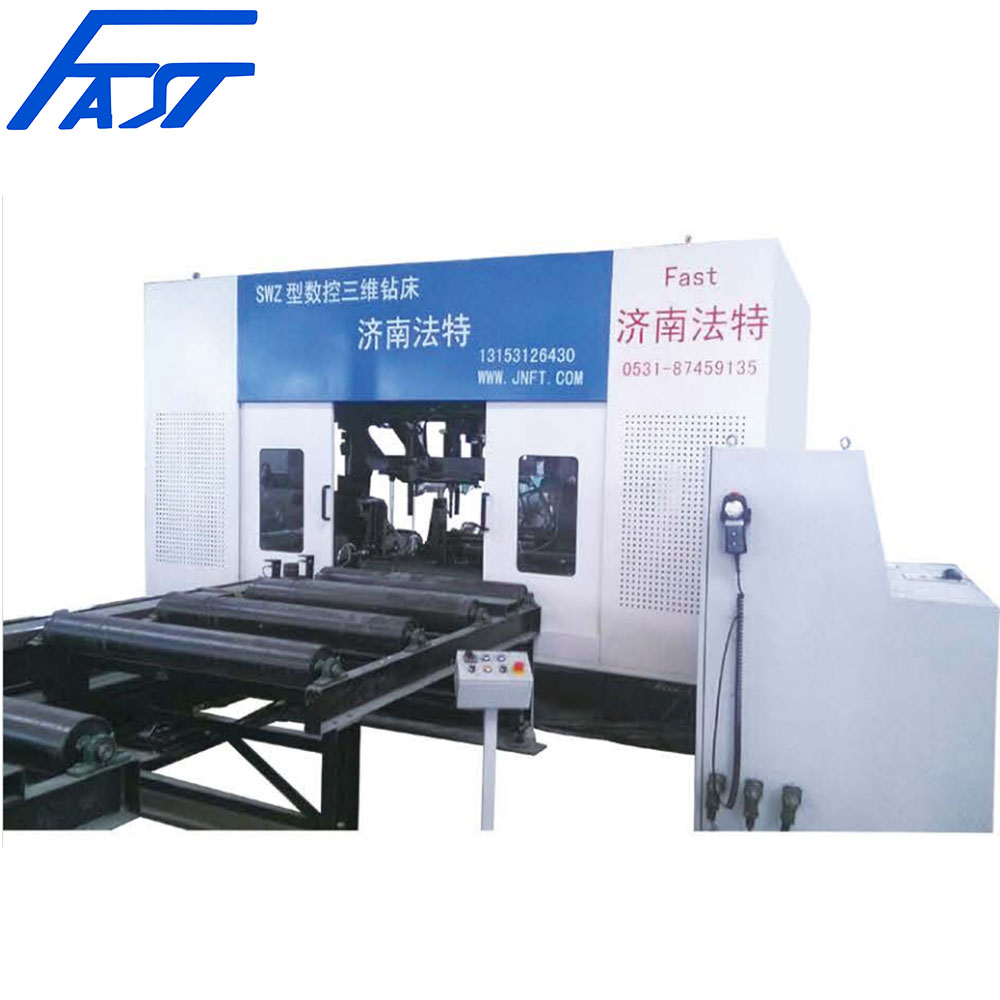

Beam drilling host
Unloading side power raceway
Side pusher
Automatic chip conveyor
Mist cooling system
Electric control cabinet
Hydraulic power station
TECHNICAL DATA
Model
SWZ400-3
SWZ700-3
SWZ1000-3
SWZ1250-3
H-beam Max. Web Weight*Max. Flange Height (mm)
400*300
700*400
1000*500
1250*600
H-beam Min. Web Weight *Min. Flange Height (mm)
100*50
150*100
150*120
200*150
Automatic Feeding Length (mm)
1500~12000
3000~~12000
3000~14000
Max. Web Thickness (mm)
≤40
≤40
≤50
≤60
Max. Weight of Workpiece (kg)
2000
4000
8000
15000
Max. Drilling Diameter (mm)
Φ40
Feeding Speed (mm/min)
20~200
NO. of Spindle
3
Rotation Range of Each Spindle (r/min)
100~700
Spindle Type
BT40
Cooling
With Air Cooling System
Upper Spindle Movement Range (mm)
20~360
40~660
40~960
40~1160
Left and Right Spindle movement range (mm)
20~280
30~370
30~470
30~570
Total Power (kW)
Overall Dimension L*W*H (mm)
22000*4220*3120
29000*4220*3120
33000*4000*3000
33000*4400*3100
★ All of these models can be customized according to customer requirements.
FAQ
· Are you a Manufacturer or a Trading company?
Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.
Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc
· Do you have stock product ready to delivery?
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed,when to delivery?
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services?
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality?
Each machine must be carried out quality examination and test when shipping and delivery goods.
